Service Port HVAC: Service and Repair

Tool Required:
J 39037 Octagon Socket

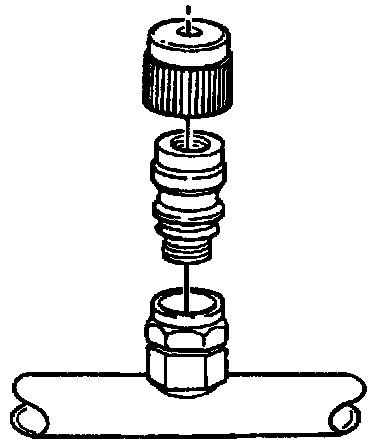

Remove or Disconnect

1. Cap.
2. Recover refrigerant.
3. Service valve.

Install or Connect

1. Service valve.

Tighten
^ Valve to 11 N.m (98 lb. in.).

2. Evacuate, recharge, and leak test system.
3. Cap.

Tighten
^ Cap 1/4 to 1/2 turn after seal washer contacts access fitting.
