Control Assembly: Service and Repair

Description:

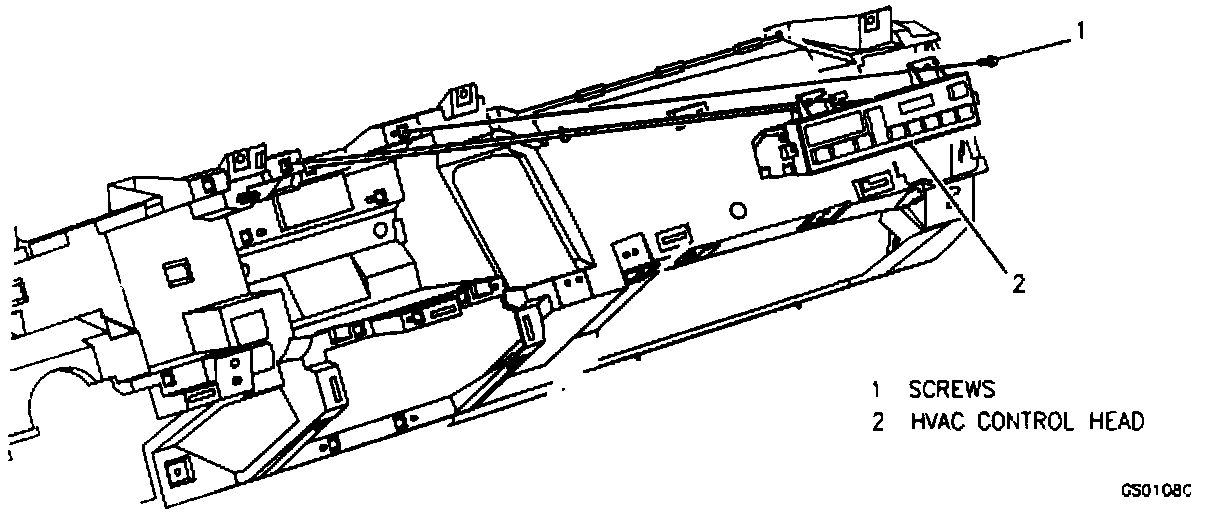

REMOVE OR DISCONNECT
1. Cluster trim plate.
2. Screws (1).
3. Heater and A/C control (2) from IP assembly.
4. Electrical connectors from control head.

INSTALL OR CONNECT
1. Electrical connectors to control head.
2. Control head to IP assembly.
3. Screws (1).
4. Cluster trim plate.
