Home >> Buick >> 1999 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> INT LPS

INT LPS

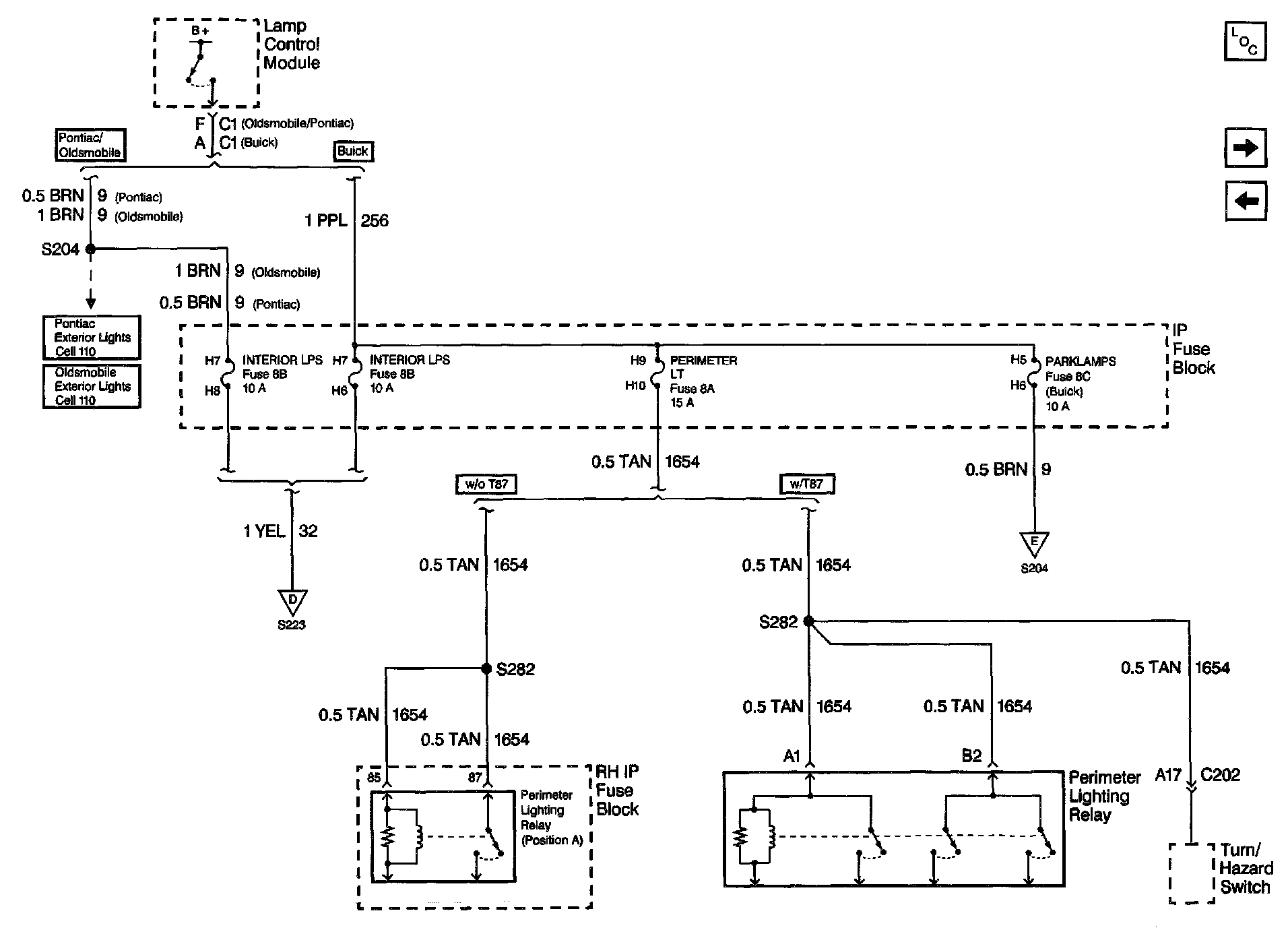

Power Distribution Schematics: INTERIOR LPS, PERIMETER LT, And PARKLAMPS Fuses:
