Front Fender Liner: Service and Repair

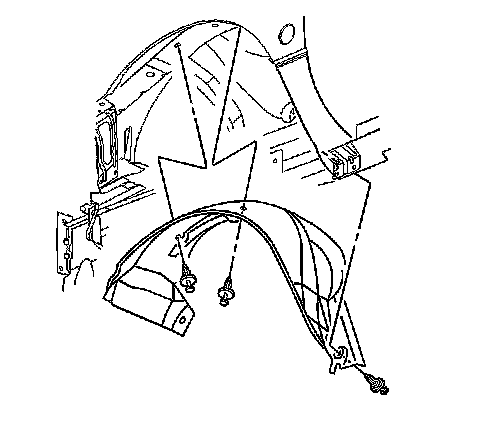

Wheelhouse Panel Replacement

Removal Procedure




1. Remove the front wheelhouse extension.
2. Remove the push-in retainers.
3. Remove the wheelhouse panel.

Installation Procedure




1. Install the wheelhouse panel.
2. Install the push-in retainers in order to secure the wheelhouse panel to the vehicle.
3. Install the wheelhouse extension.
