HTDST RF, HTDST LF, DIM and MEM Fuses (Rear Fuse Block))

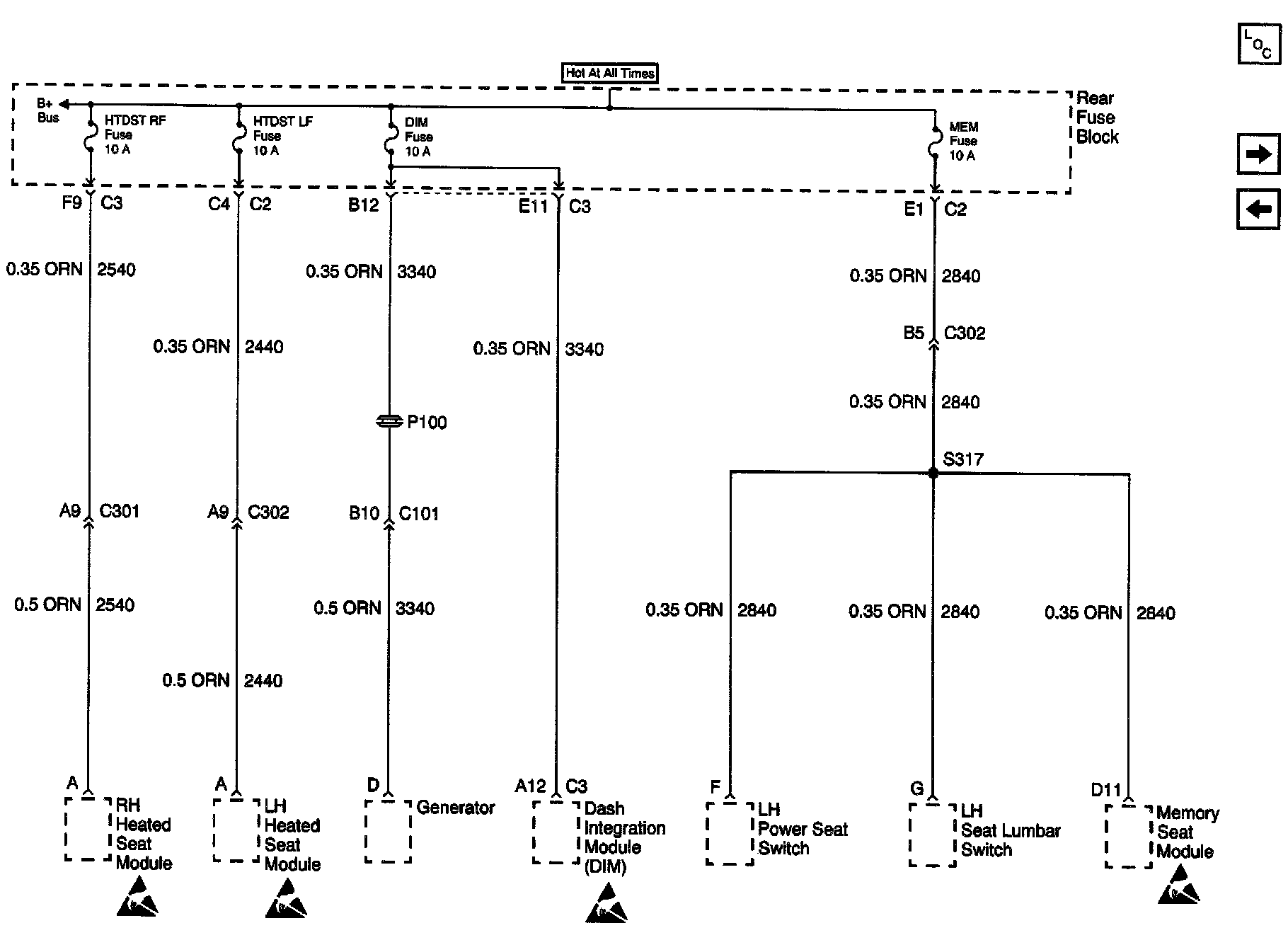

Power Distribution Schematics: HTDST RF, HTDSF LF, DIM And MEM Fuses (Rear Fuse Block):
