2. Crankshaft Balancer Removal

- Tools Required
- J 37096 Flywheel Holding Tool
- J 38197 Crankshaft Balancer Puller





1. Use J 37096 in order to hold the flywheel.

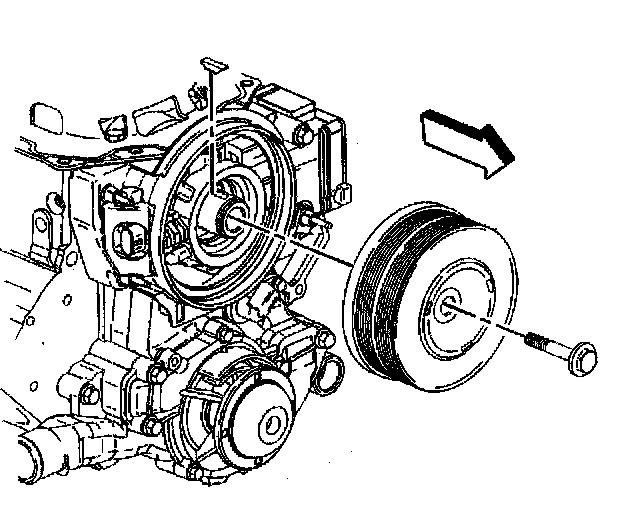

2. Remove the crankshaft balancer bolt.





3. Use the J 33197 in order to remove the crankshaft balancer.

Important: Do not separate the crankshaft pulley from the crankshaft balancer. Service the crankshaft pulley and the crankshaft balancer as an assembly.

3.1. Invert J 38197-2 so the leg of the tool is facing away from the crankshaft balancer.
3.2. Install the silver screws J 38197-4 to the crankshaft balancer.
3.3. Turn J 38197-1 to remove the crankshaft balancer from the crankshaft.
3.4. Remove J 38197-1, J 38197-2, and J 38197-4 from the crankshaft balancer.
