Cabin Air Filter / Purifier: Service and Repair

PASSENGER COMPARTMENT AIR FILTER REPLACEMENT (WITH RPO K12)

REMOVAL PROCEDURE

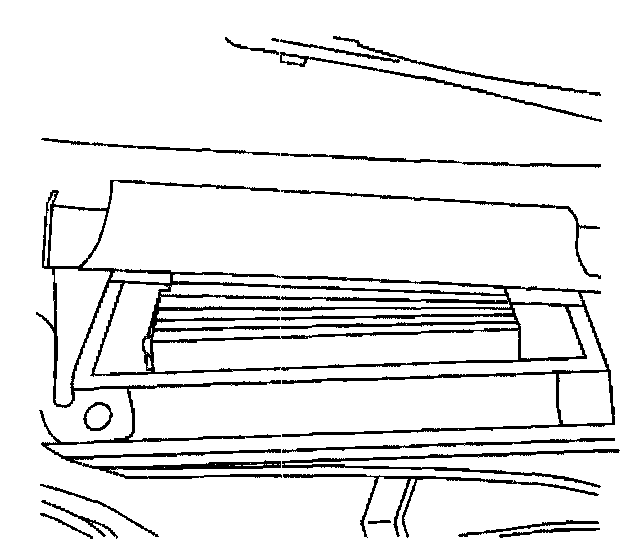

1. Pry up the access cover in the air inlet panel.
2. Remove the filter from the filter housing.

INSTALLATION PROCEDURE




1. Install the filter in the filter housing.
2. Close the access cover.
