Expansion Block/Orifice Tube: Service and Repair
EXPANSION (ORIFICE) TUBE REPLACEMENTREMOVAL PROCEDURE
TOOLS REQUIRED
J 39500-B A/C Refrigerant Recovery, Recycling and Recharging (ACR4) System
1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.

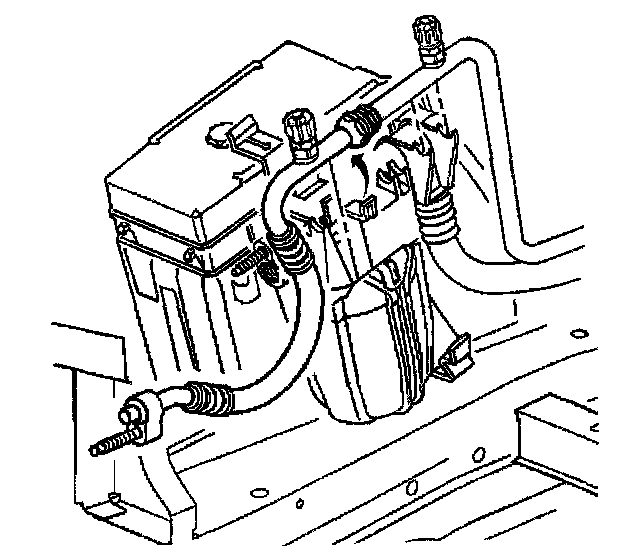

2. Remove the A/C evaporator hose from the retaining clips.

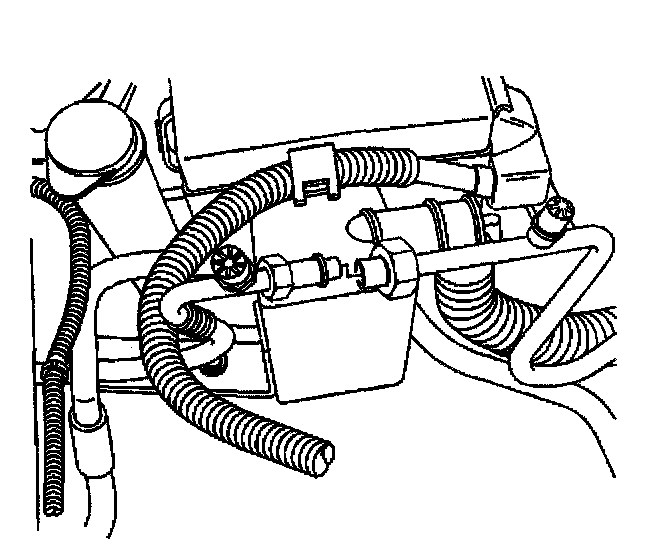

3. Separate the A/C evaporator hose at the expansion tube location.

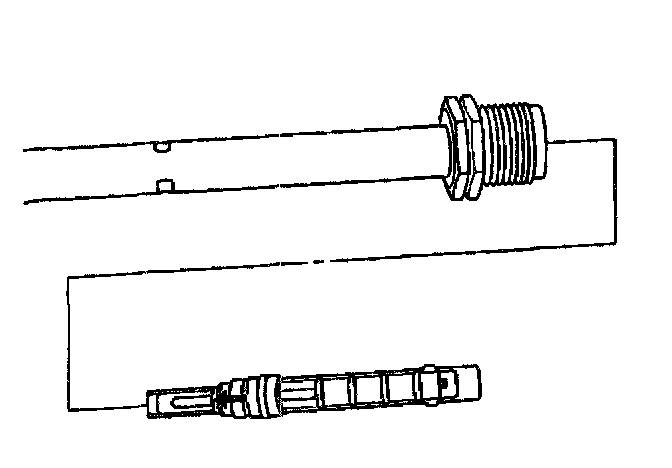

4. Remove the expansion tube from the line
INSTALLATION PROCEDURE
TOOLS REQUIRED
J 39400-A Electronic Halogen Leak Detector
IMPORTANT: Lubricate the new expansion tube O-ring with mineral base 525 viscosity refrigerant oil before installing into the evaporator hose.
1. Install the new expansion tube. Ensure that the short screen and arrow face toward the evaporator.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Assemble the A/C evaporator tube.
Tighten
Tighten the O-ring joint connections to 27 N.m (20 lb ft).
3. Install the A/C evaporator hose to the retaining clips.
4. Recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
5. Test the A/C system for leaks using the J 39400-A. Refer to Leak Testing.
