Shift Lock Control - Disassemble - Off Vehicle

Disassembly Procedure

^ Tools Required
- J 42640 Anti Rotation Pin
- J 41352 Modular Column Holding Fixture

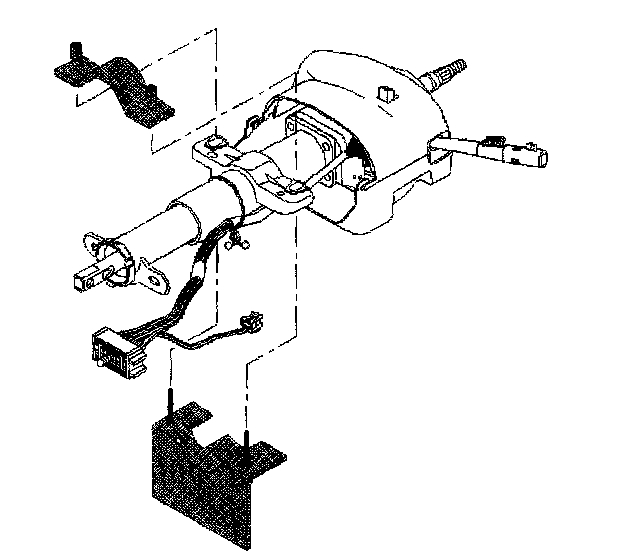

1. Place the bottom of J 41352 into a vise.

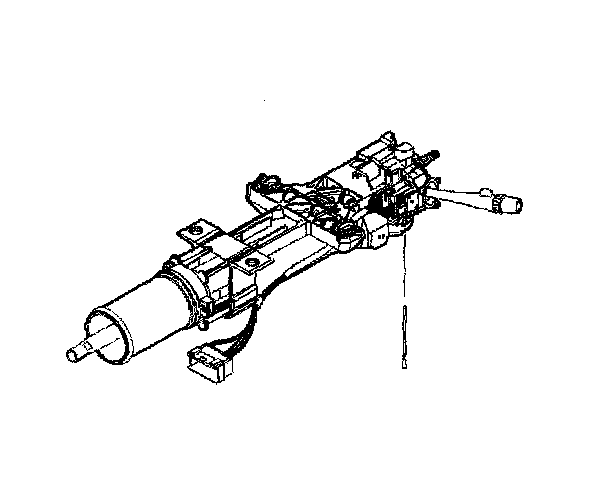

2. Set the steering column in the bottom of J 41352.
3. Place the top piece of J 41352 onto the column and secure with 2 screws.





4. Insert J 42640 into the lower shroud.

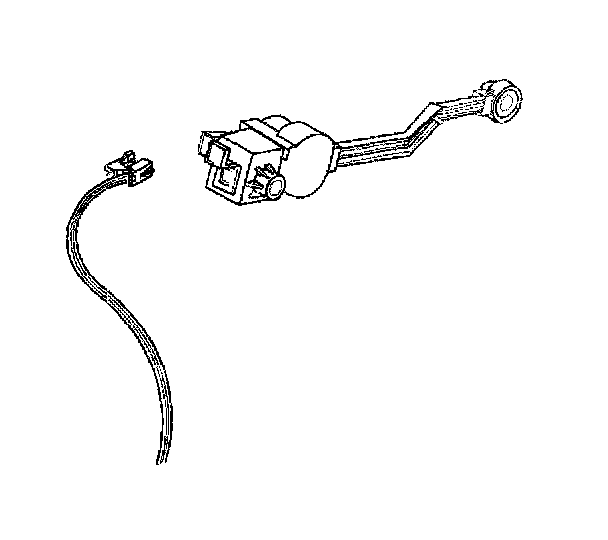

5. Disconnect the electrical BTSI actuator connector.

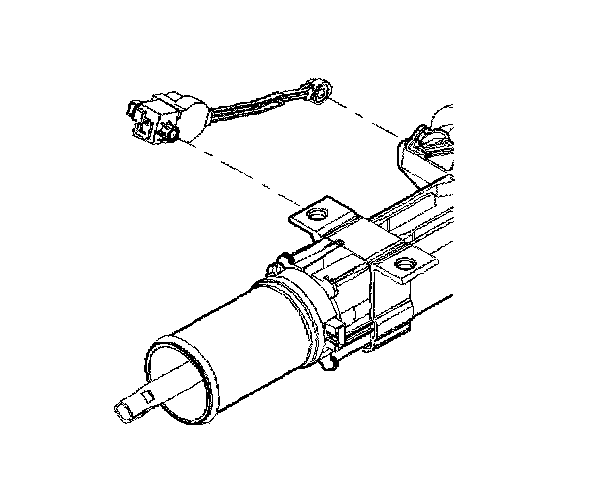

6. Use a screwdriver to pry the electrical BTSI actuator from the steering column support assembly.
7. Remove the electrical BTSI actuator from the steering column.
