Home >> Buick >> 2000 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams >> Connector Views >> Rear Power Window Motor, LH

Rear Power Window Motor, LH

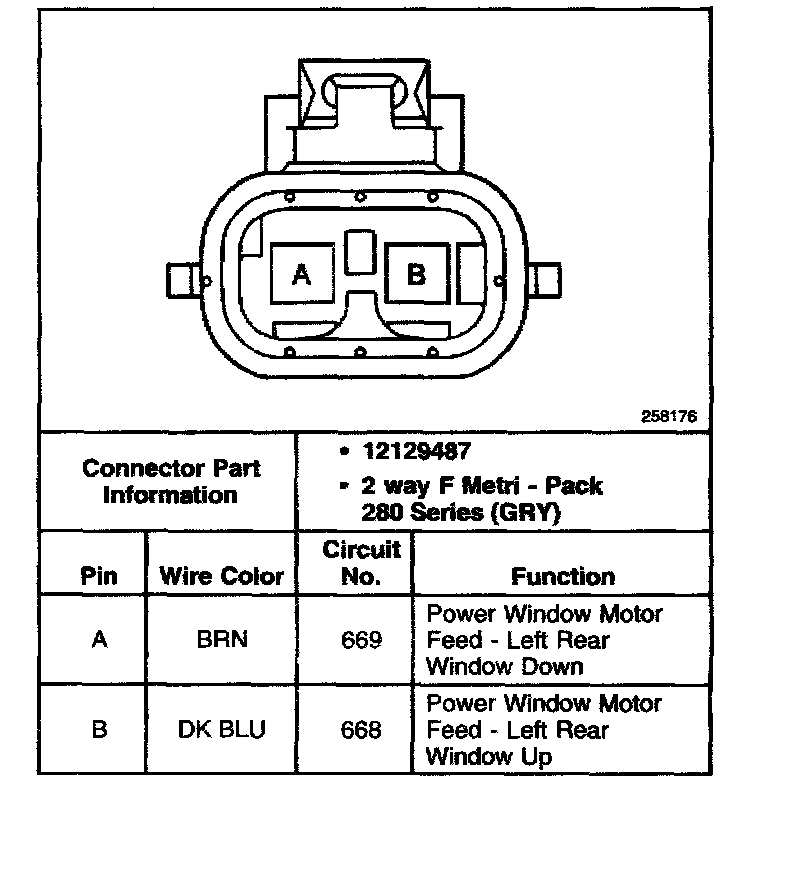

LH Rear Power Window Motor:
