Console

REMOVAL PROCEDURE

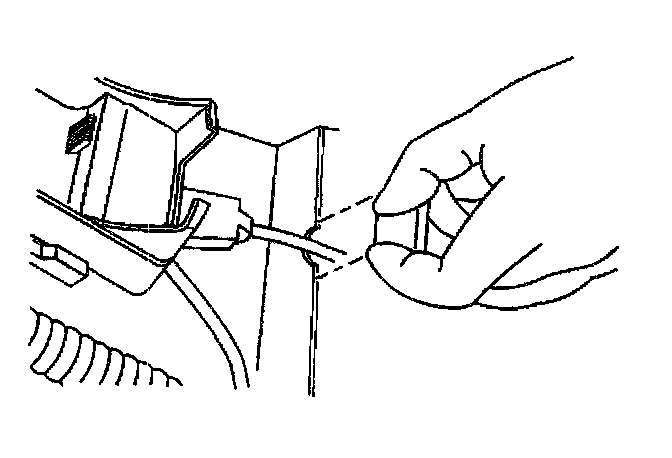

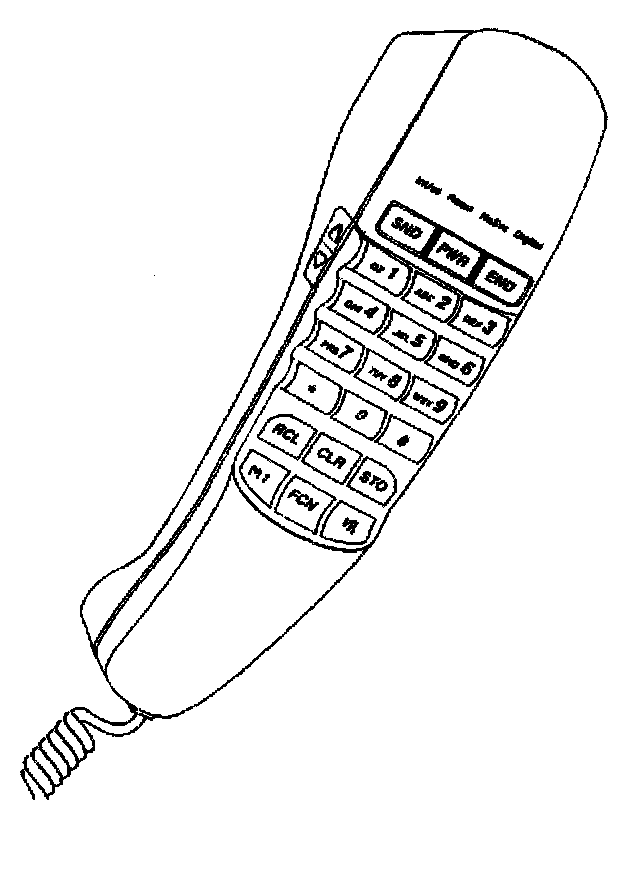

1. Disconnect the electrical connections from the phone. Set the handset aside.
2. Remove the console bin.
3. Cut the tie strap securing the phone connector. Feed the wiring through the hole in the console bin.
4. Remove the screws securing the phone mounting plate to the console bin.

INSTALLATION PROCEDURE




1. Hold the bin backwards above the console. Route the harness through the large hole in the bin.
2. Feed the 10-way adapter harness through the small hole, leaving about 4 inches of slack.
3. Connect the 10-way connector to the phone adapter.
4. Install the tie strap in the same location as previously removed.
5. Feed the excess slack back into the large hole in the bin.
6. Install the phone mounting plate to the console bin.
7. Install the console bin to the console. Ensure that the phone wiring is free and is not pinched.
8. Press PWR in order to check for proper electrical connections.
