Expansion Block/Orifice Tube: Service and Repair
EXPANSION (ORIFICE) TUBE REPLACEMENTREMOVAL PROCEDURE
TOOLS REQUIRED
J 39500-B A/C Refrigerant Recovery, Recycling and Recharging (ACR4) System
1. Recover the refrigerant from the A/C system. Refer to Refrigerant Recovery and Recharging.

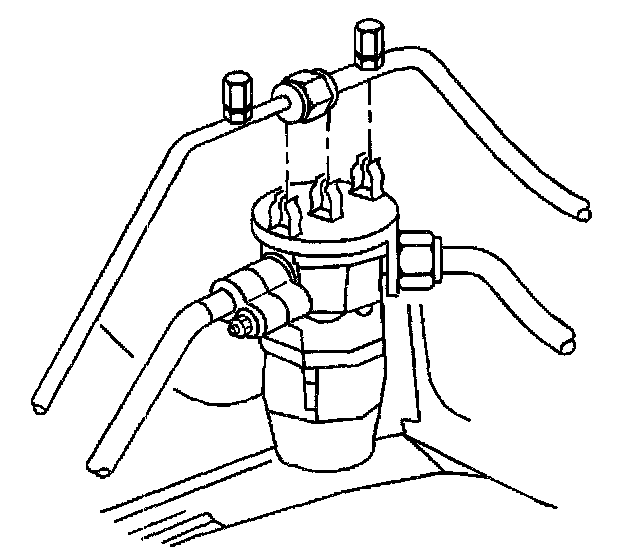

2. Remove the A/C evaporator hose from the retaining clips.

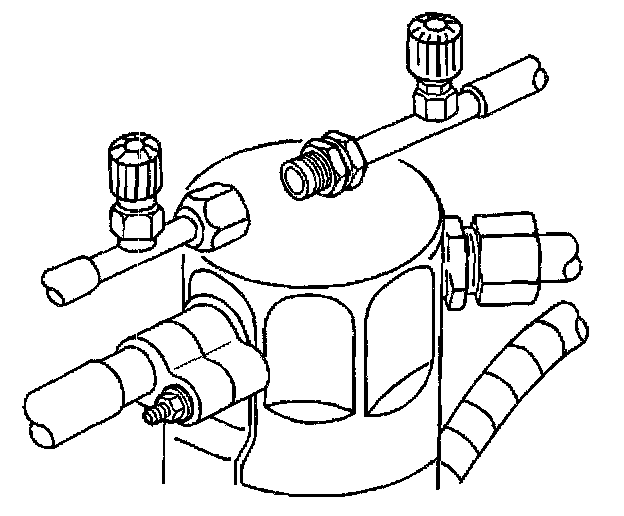

3. Separate the A/C evaporator hose at the expansion tube location.

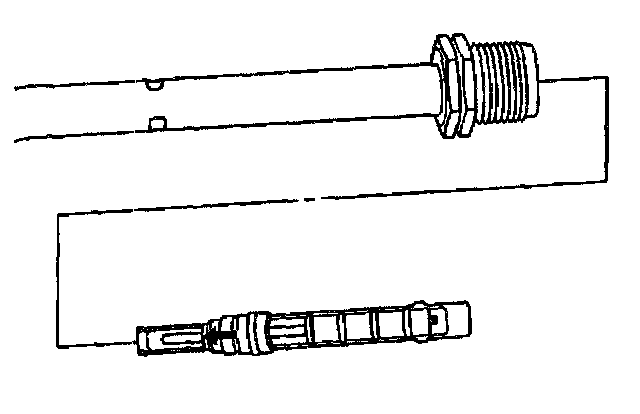

4. Remove the expansion tube from the line.
INSTALLATION PROCEDURE
TOOLS REQUIRED
J 39400-A Electronic Halogen Leak Detector
IMPORTANT: Lubricate the new expansion tube O-ring with mineral base 525 viscosity refrigerant oil before installing into the evaporator hose.
1. Install the new expansion tube. Ensure that the short screen faces toward the evaporator.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Assemble the A/C evaporator hose.
Tighten
Tighten the dual O-ring joint connections to 24 N.m (18 lb ft).
3. Install the A/C evaporator hose to the retaining clips.
4. Recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
5. Test the A/C system for leaks using the J 39400-A. Refer to Leak Testing.
