Canister Purge Control Valve: Service and Repair

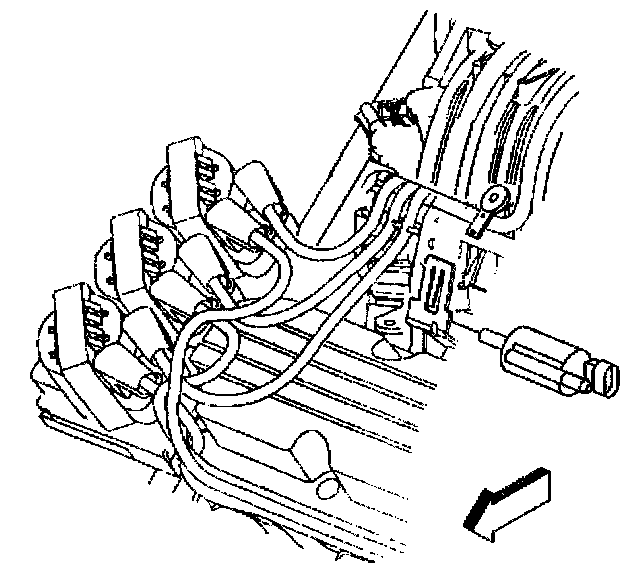

REMOVAL PROCEDURE
1. Disconnect the electrical connector and hoses from the EVAP canister purge valve.
2. Bend the tab on the solenoid mounting bracket to remove the EVAP canister purge valve.

INSTALLATION PROCEDURE
1. Bend the tab on the solenoid mounting bracket to install the EVAP canister purge valve.
2. Install the EVAP canister purge valve.
3. Connect the hoses and the electrical connector to the EVAP canister purge valve.
