Map Light
Map Light

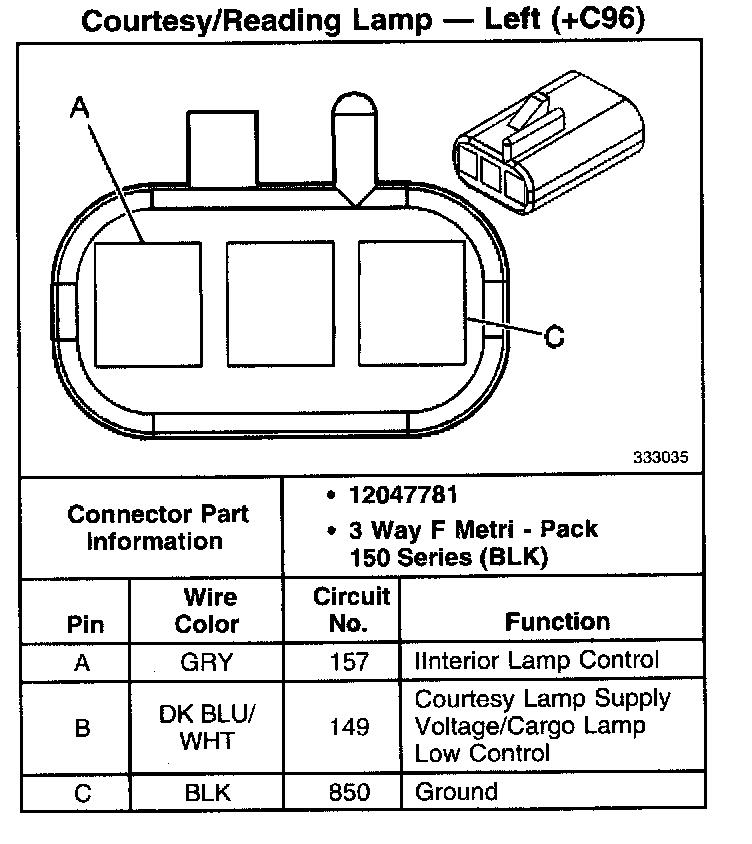

Courtesy/Reading Lamp - Left(+C96):

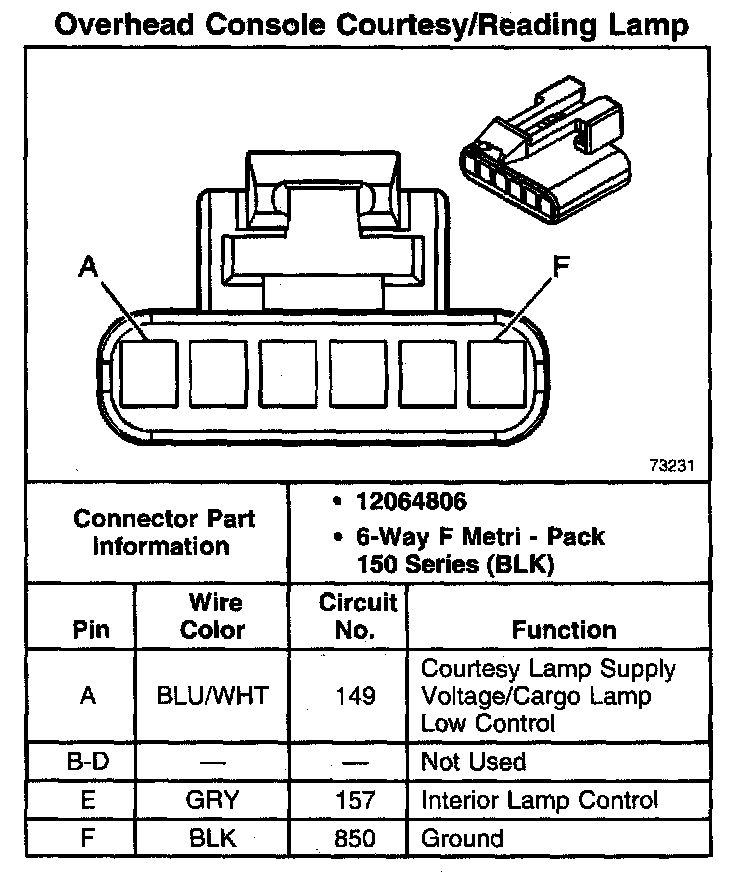

Overhead Console Courtesy/Reading Lamp:

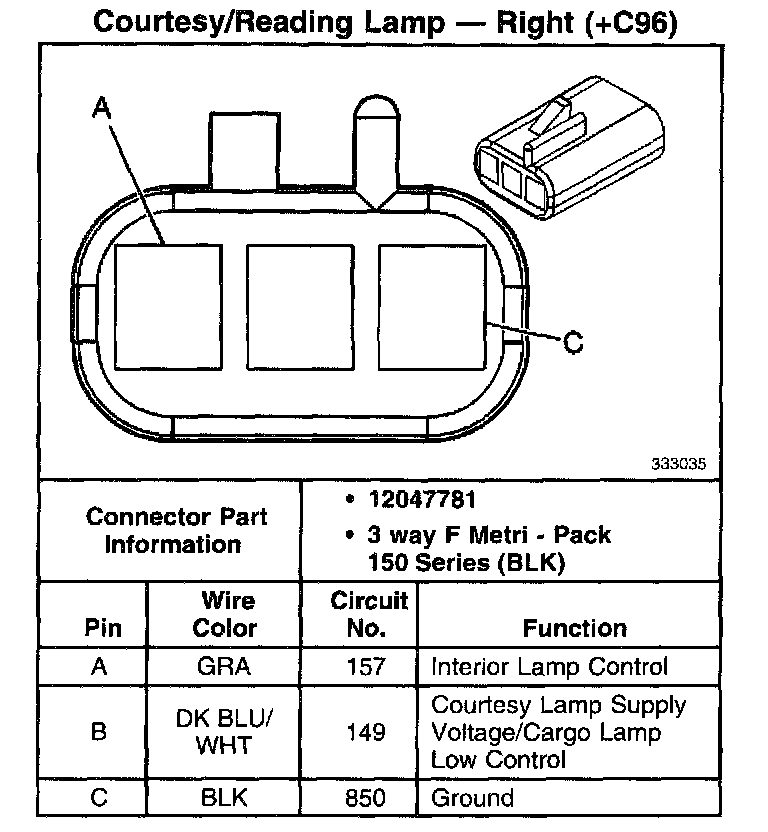

Courtesy/Reading Lamp - Right (+C96):
