Cruise Control Servo Cable: Adjustments

1. Remove the fuel injector site shield. Refer to Fuel Injector Sight Shield Replacement (L36) or Fuel Injector Sight Shield Replacement (L67) in Engine.

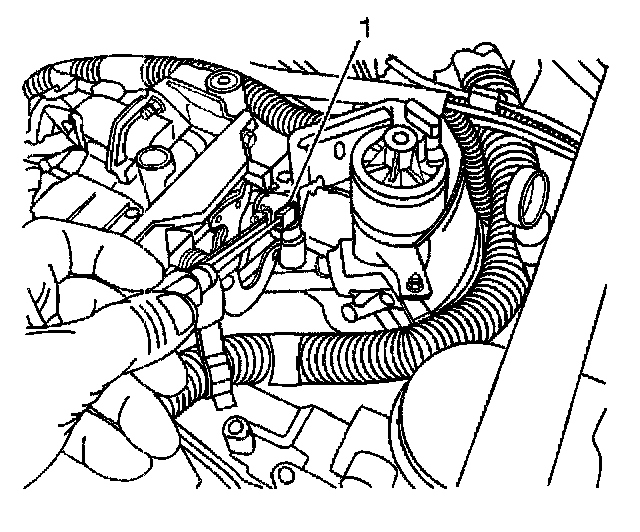

2. Disengage the adjustment lock (1) on the cruise control cable. The lock is located on the TBI end of the cable.
When the lock is disengaged, the cable will move freely in and out of the adjuster.
3. Hold the TBI at the closed position.
4. Remove the slack in the cable by pulling the cable conduit and engaging the adjustment lock.
5. Install the fuel injector site shield. Refer to Fuel Injector Sight Shield Replacement (L36) or Fuel Injector Sight Shield Replacement (L67) in Engine.

For a description of the RPO Code(s) shown in this article or of the images therein, refer to the RPO Code List found at Vehicle/Application ID. RPO Codes
