Case: Service and Repair

Transmission Vent Replacement

Removal Procedure





1. Remove the throttle body air inlet duct.

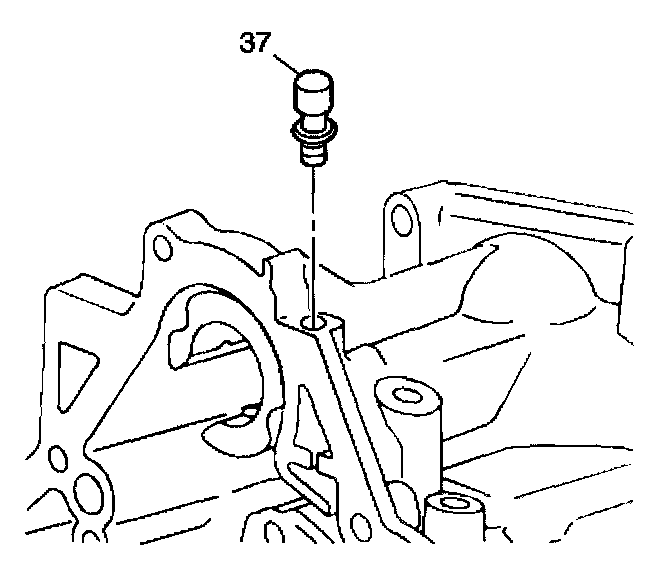

2. Remove the transaxle vent (press fit) (37).

Installation Procedure





1. Install the transaxle vent (press fit) :(37).
2. Install the throttle body air inlet duct.
