Engine Flywheel Replacement

Engine Flywheel Replacement

^ Tools Required
- J 37096 Flywheel Holder

Removal Procedure

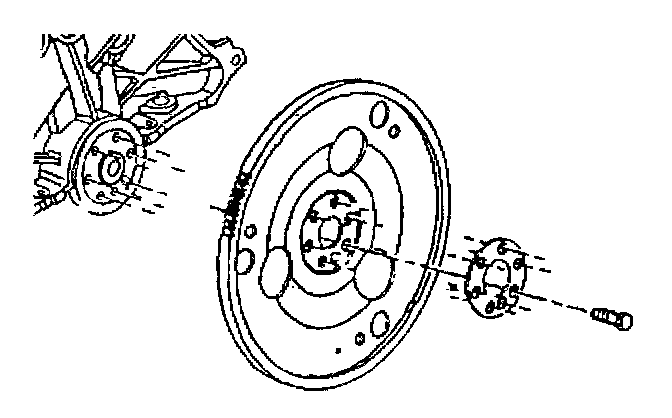

1. Remove the automatic transaxle.
2. Use the J 37096 to secure the flywheel in order to prevent rotation.
3. Loosen the 6 flywheel bolts.
4. Remove 5 of the 6 flywheel bolts leaving 1 bolt at the top of the crankshaft rotation.
5. Grip the flywheel and remove the remaining bolt. Do not drop the flywheel when removing the final bolt.
6. Remove the engine flywheel and the flywheel retainer.
7. Clean the engine flywheel bolt threads and bolt holes.

Installation Procedure

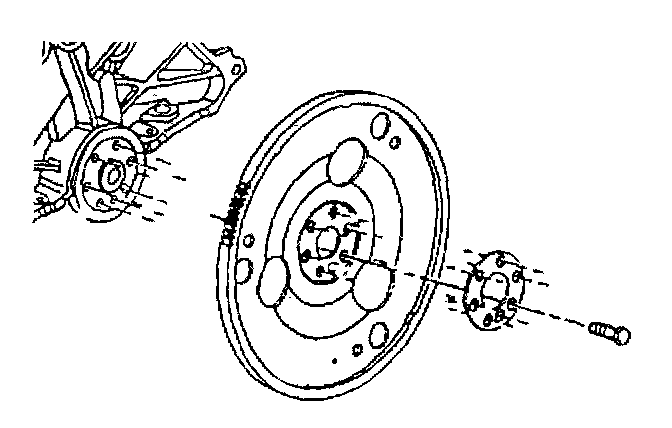

1. Install the flywheel and the retainer.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine flywheel bolts. Use the J 37096 to prevent flywheel rotation.
Tighten the bolts to 71 Nm (52 ft. lbs.).
3. Install the automatic transaxle.
