Home >> Buick >> 2002 >> Park Avenue V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light

Map Light

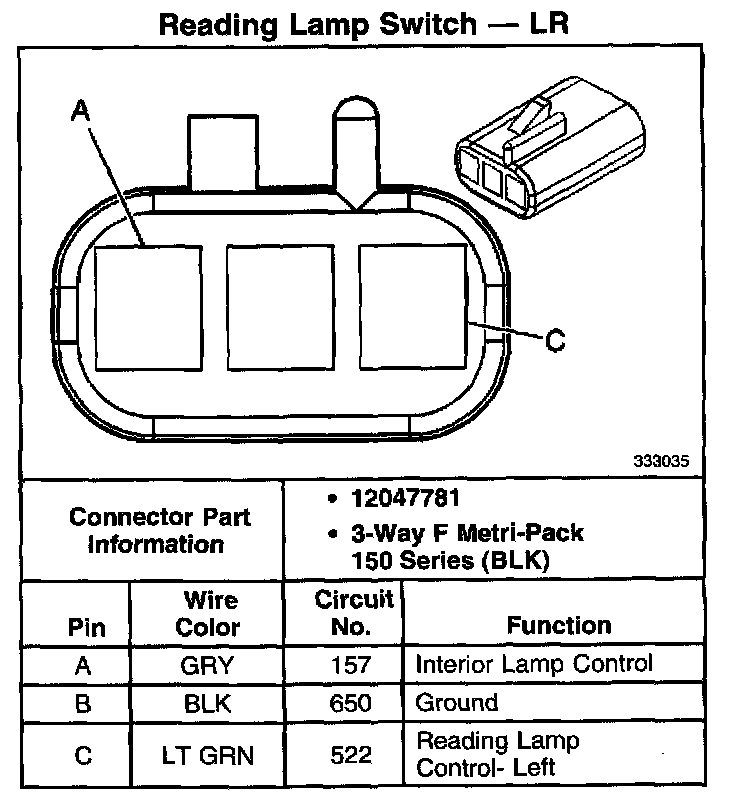

Reading Lamp Switch - LR:

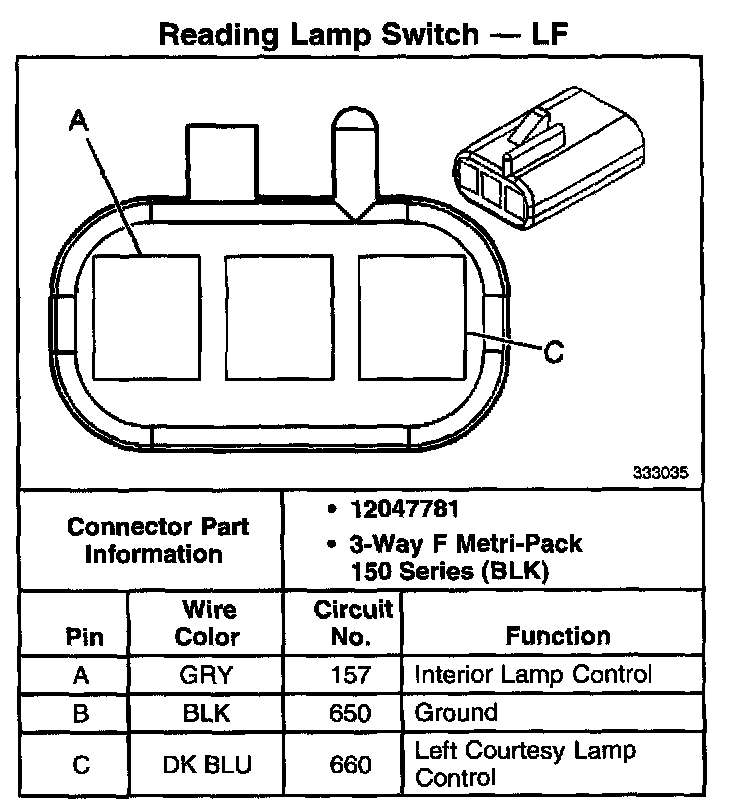

Reading Lamp Switch - LF:

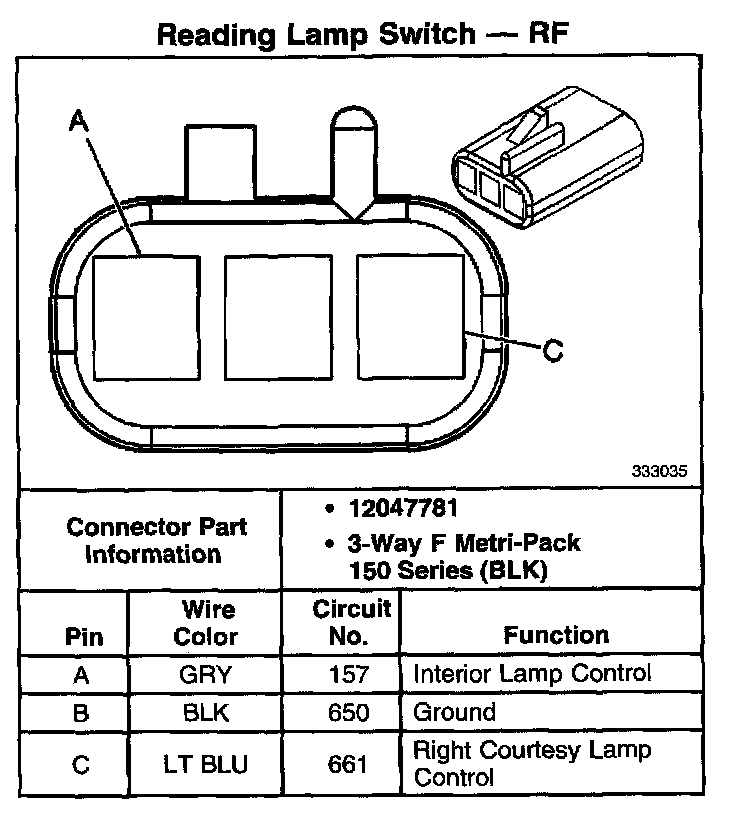

Reading Lamp Switch - RF:

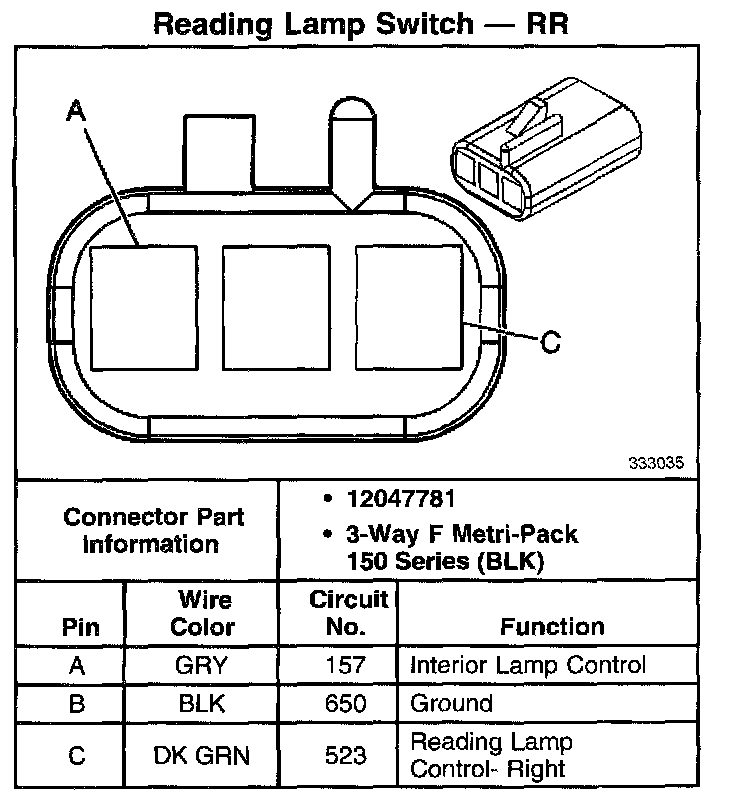

Reading Lamp Switch - RR:
