Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
2004
>>
Century V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Indicators
Indicators

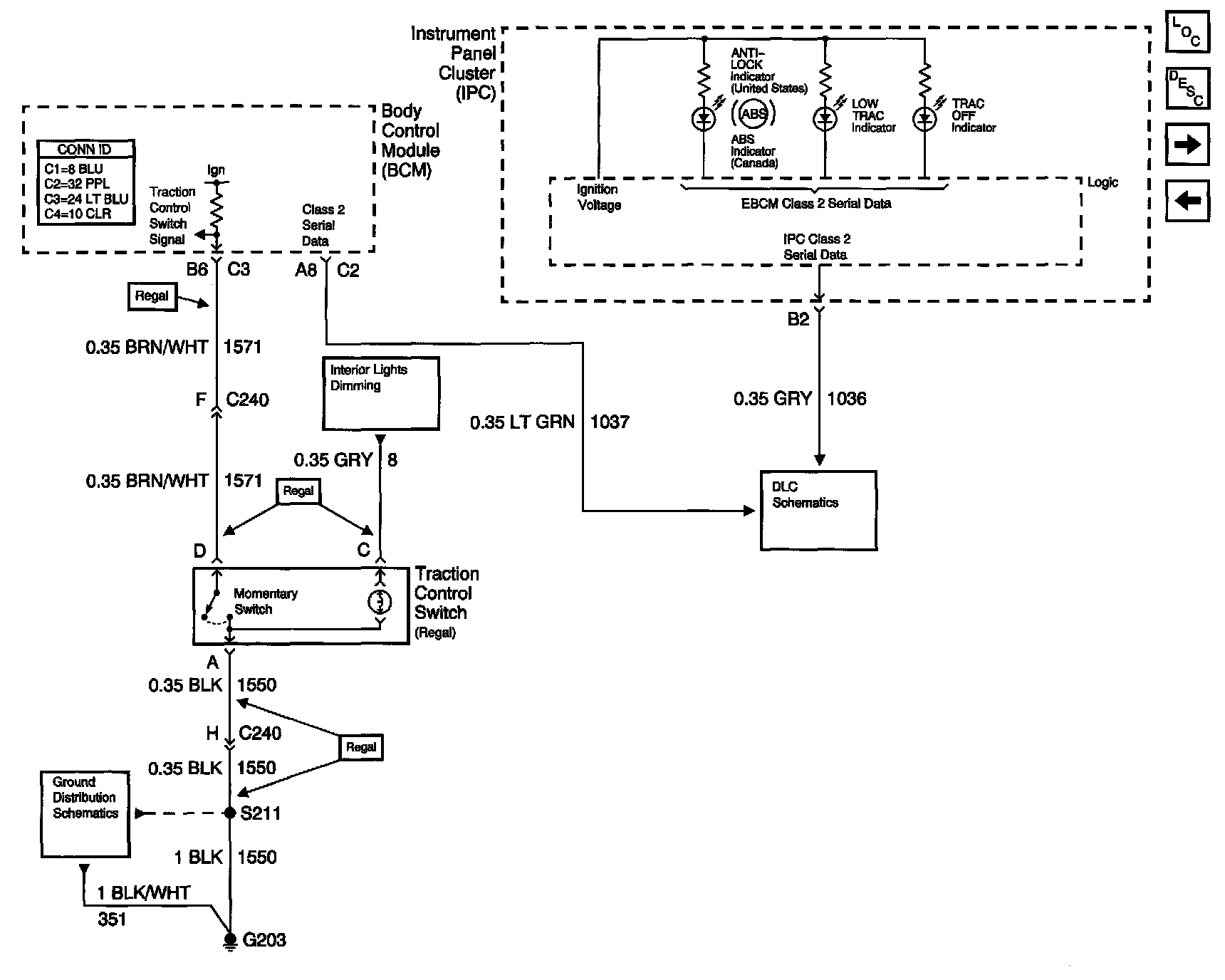

ABS Schematics (Indicators And Traction Control):
