Map Light
Map Light

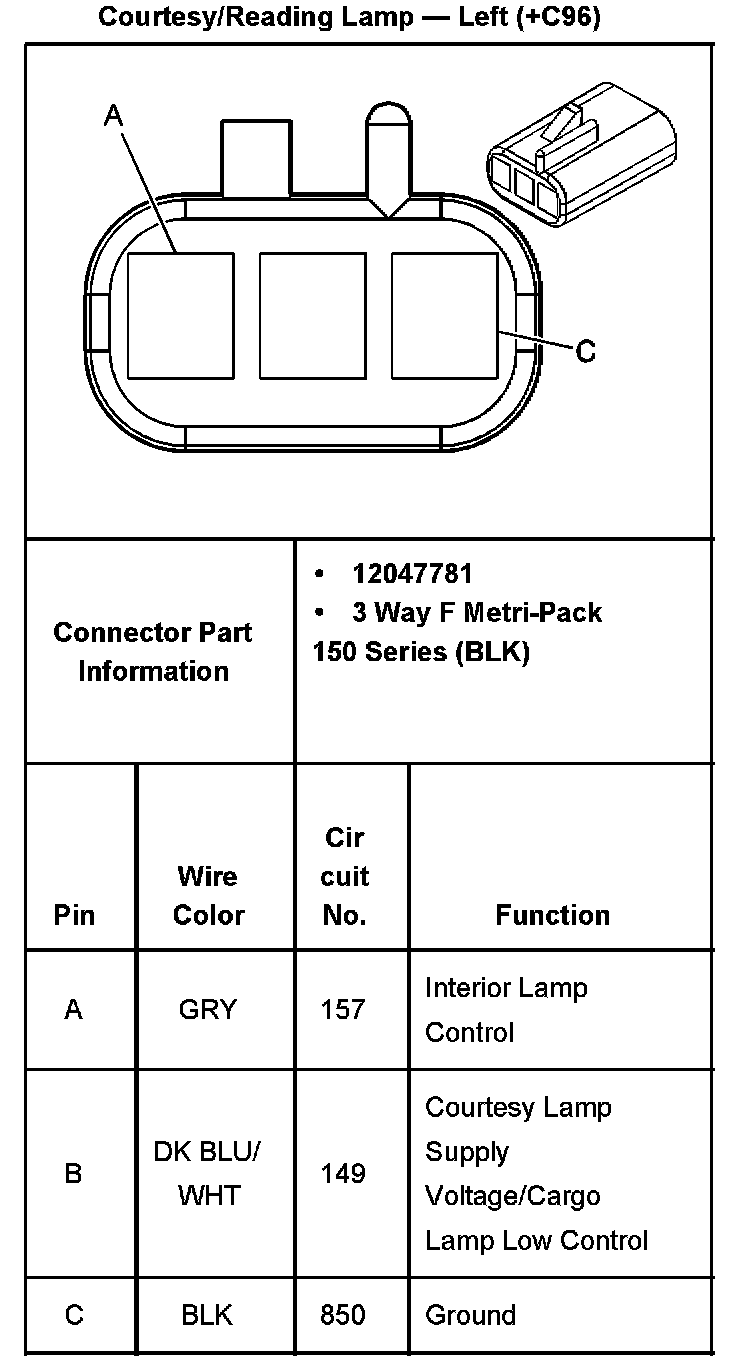

Courtesy/Reading Lamp - Left (With RPO Code +C96):

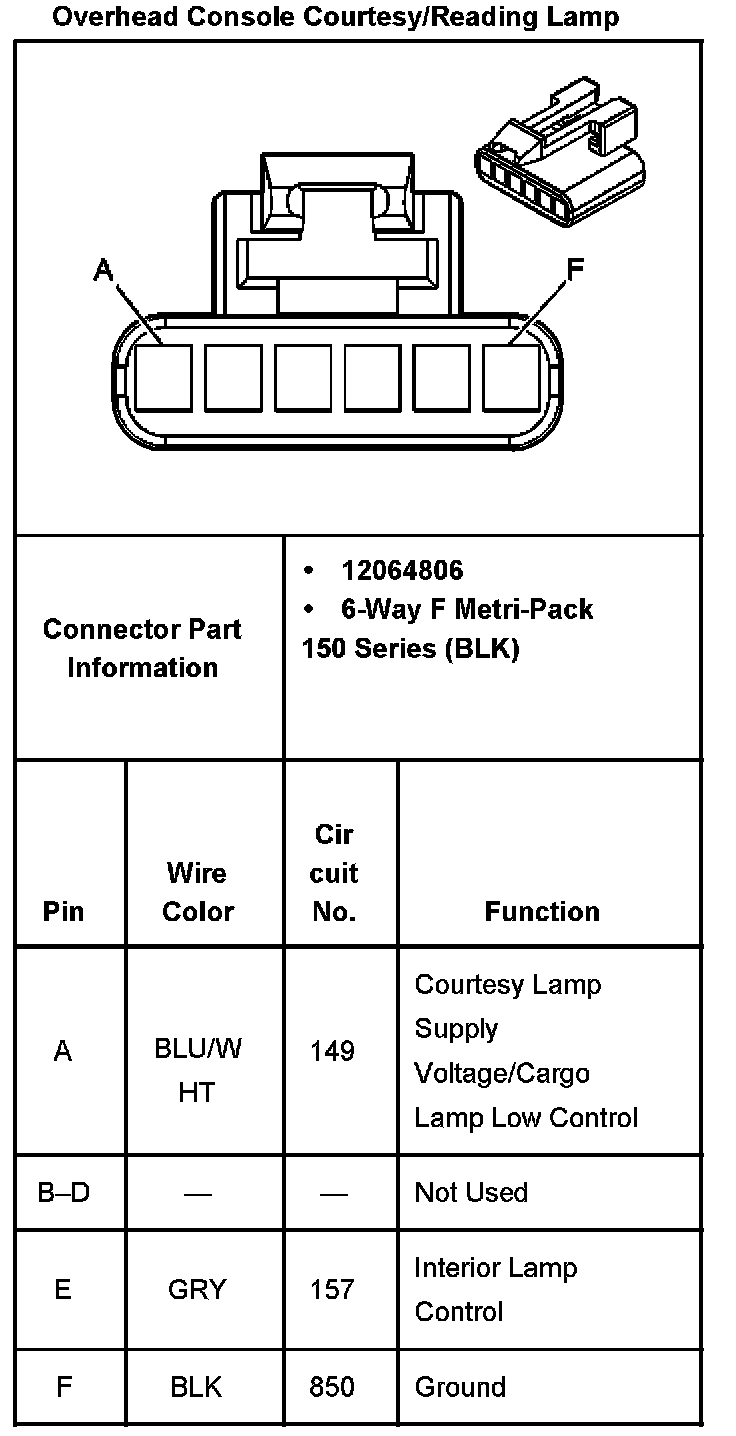

Overhead Console Courtesy/Reading Lamp:

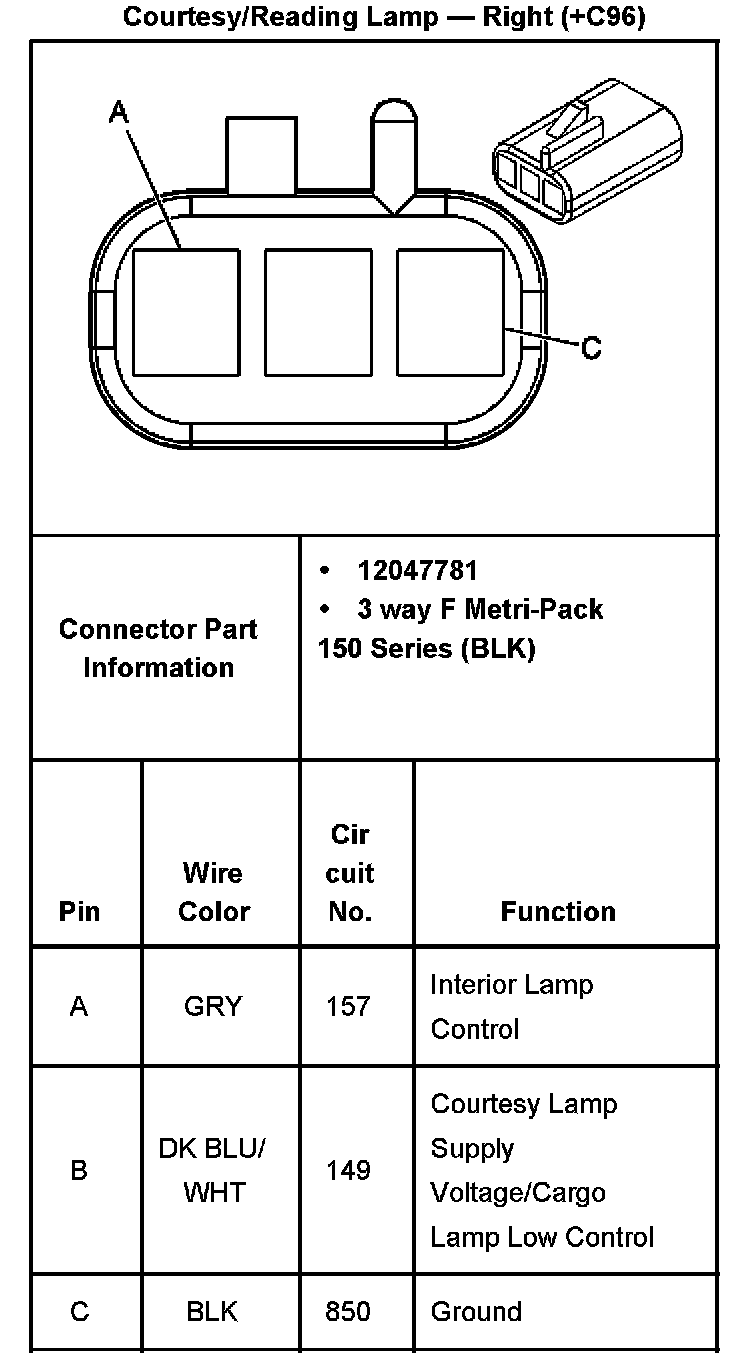

Courtesy/Reading Lamp - Right (With RPO Code +C96):
