Marker Lamp

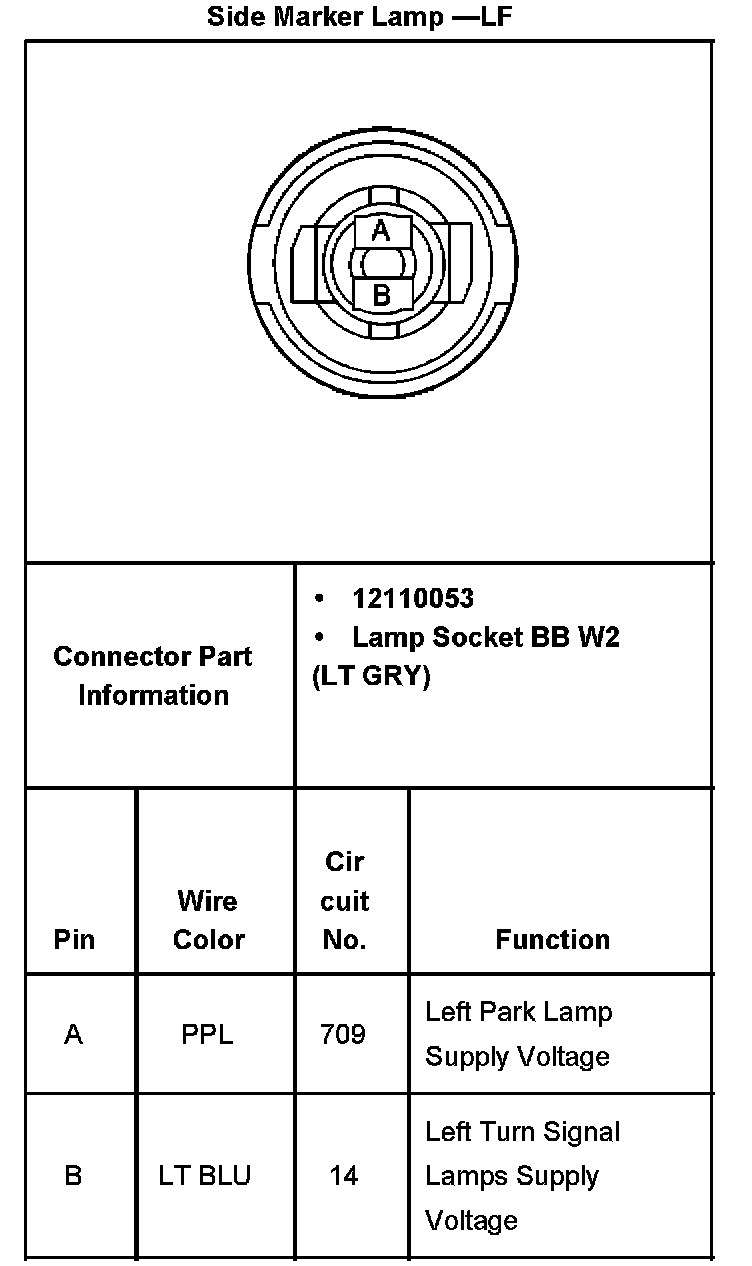

Side Marker Lamp - LF:

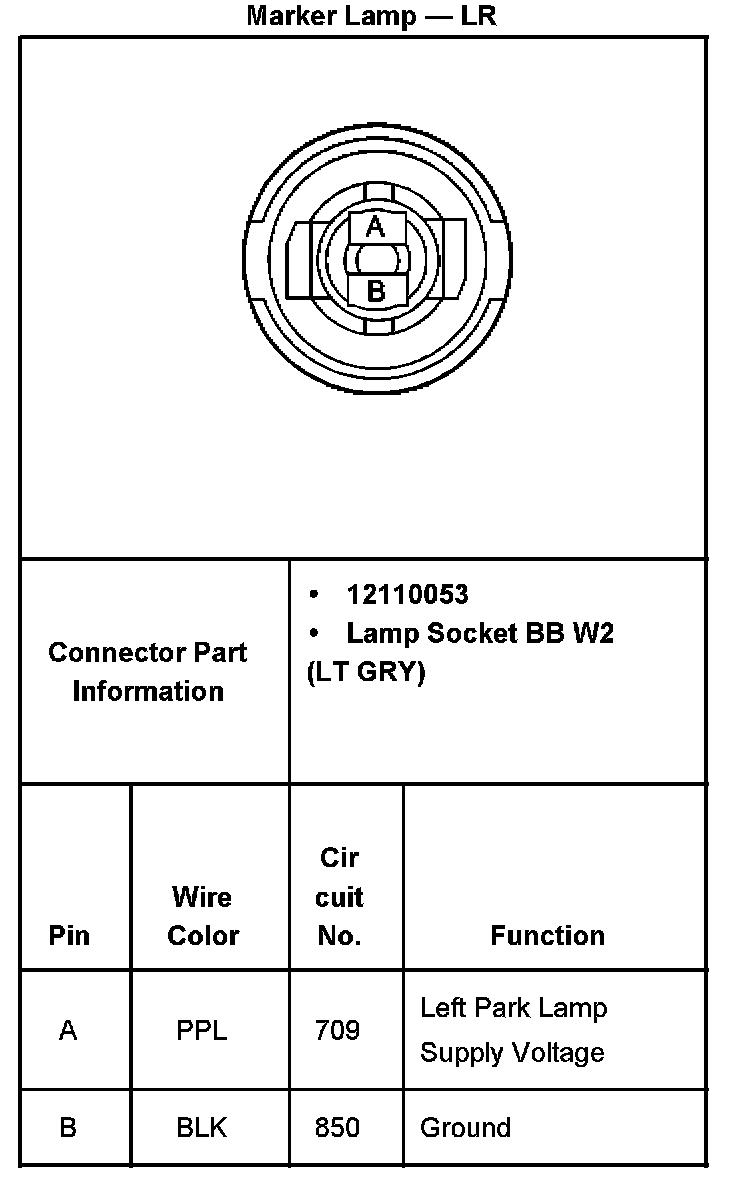

Marker Lamp - LR:

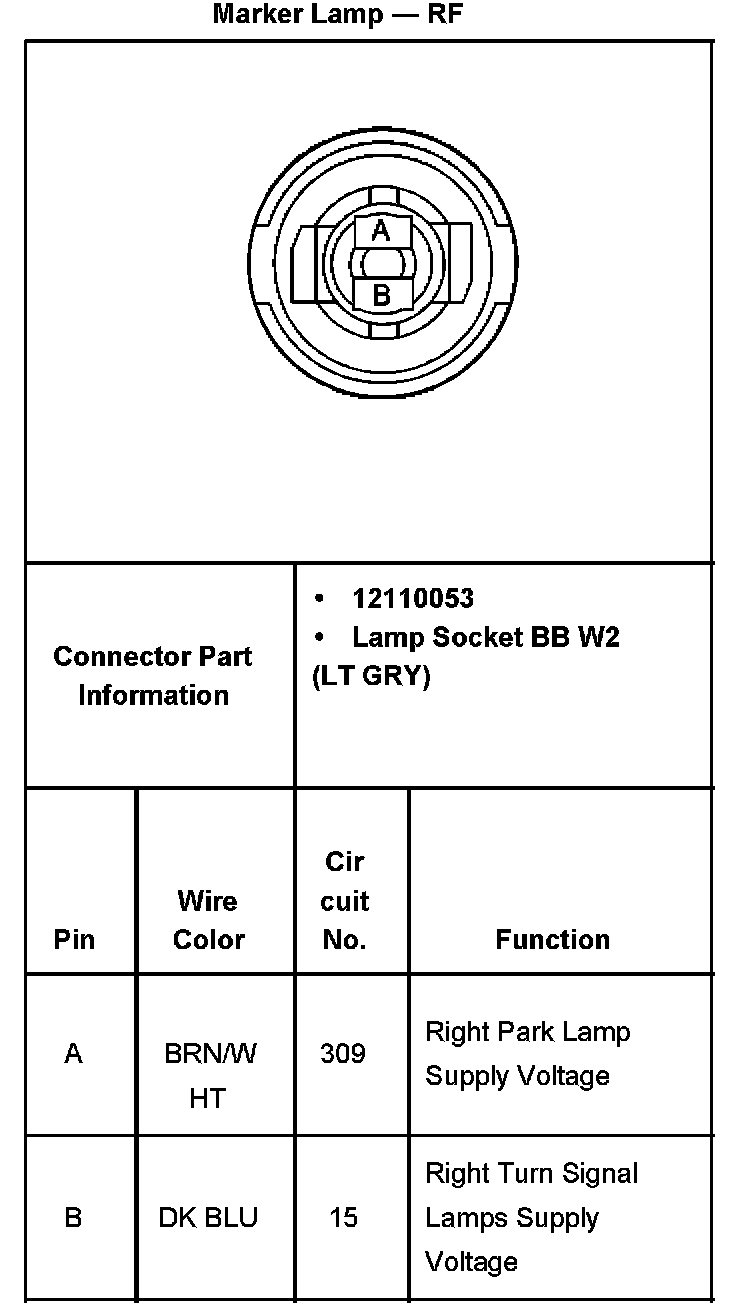

Marker Lamp - RF:

RH Rear Side Marker Lamp - RR:
