Body Control Systems
Body Control System Schematics

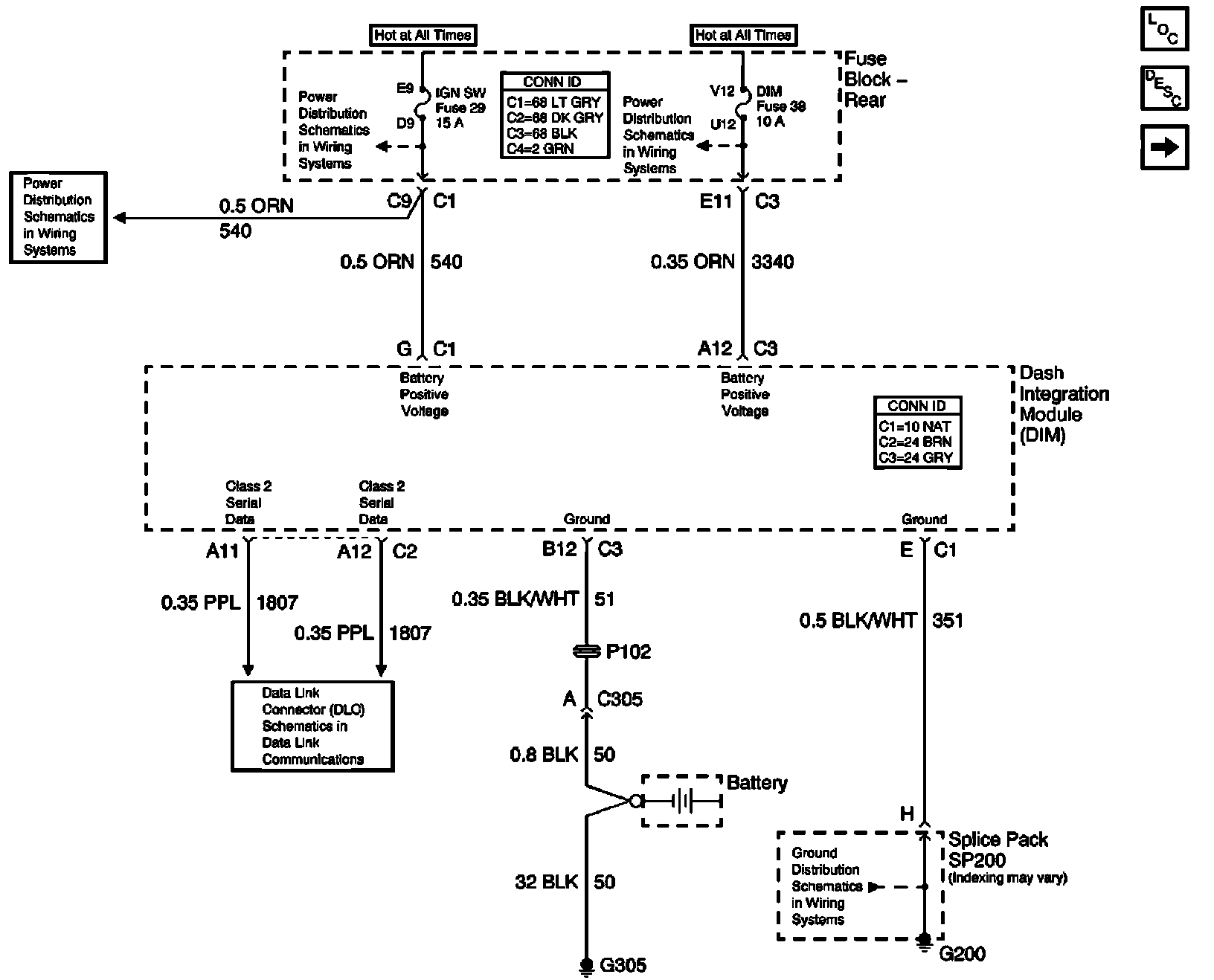

DIM Power and Grounds

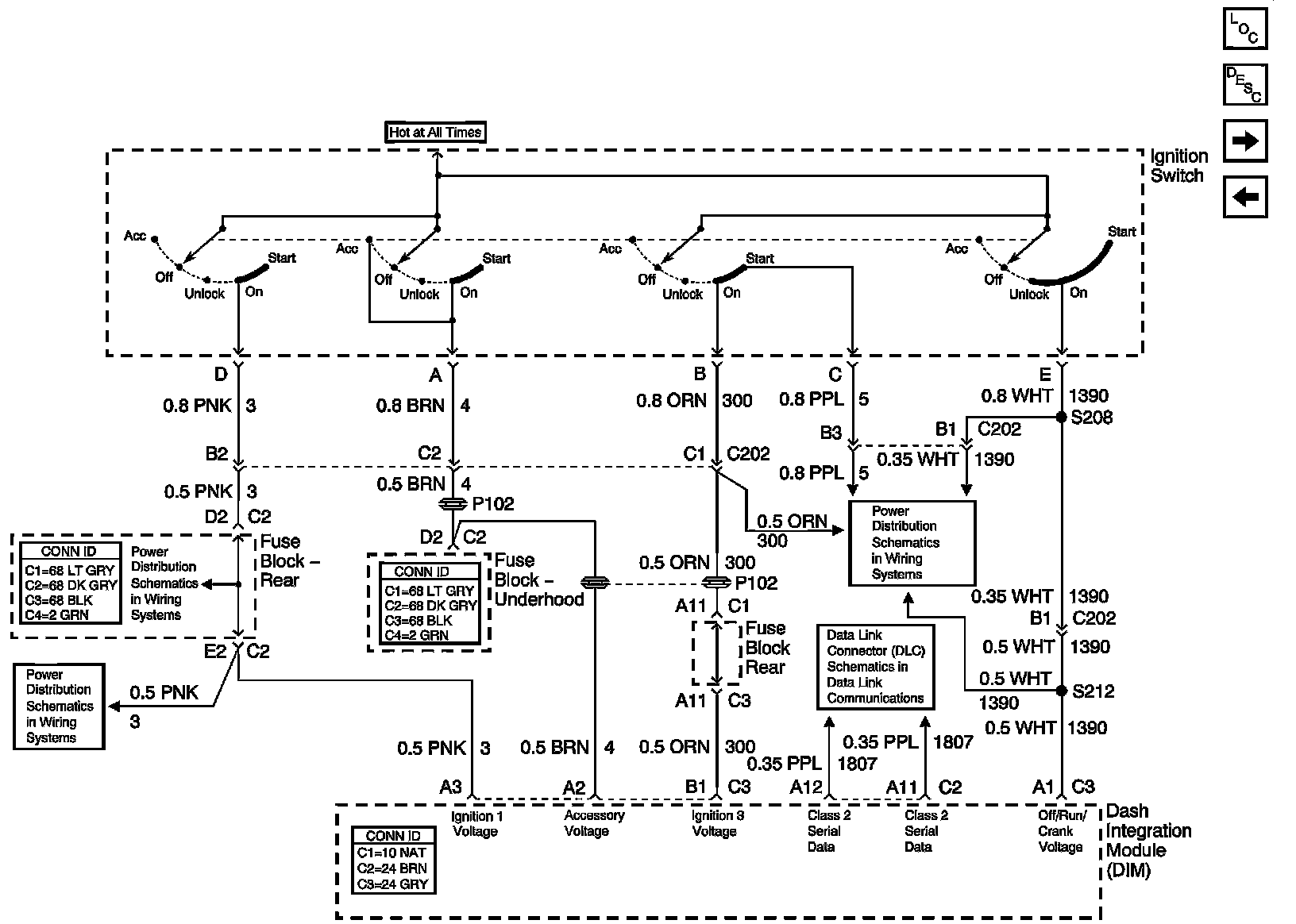

DIM Ignition Inputs

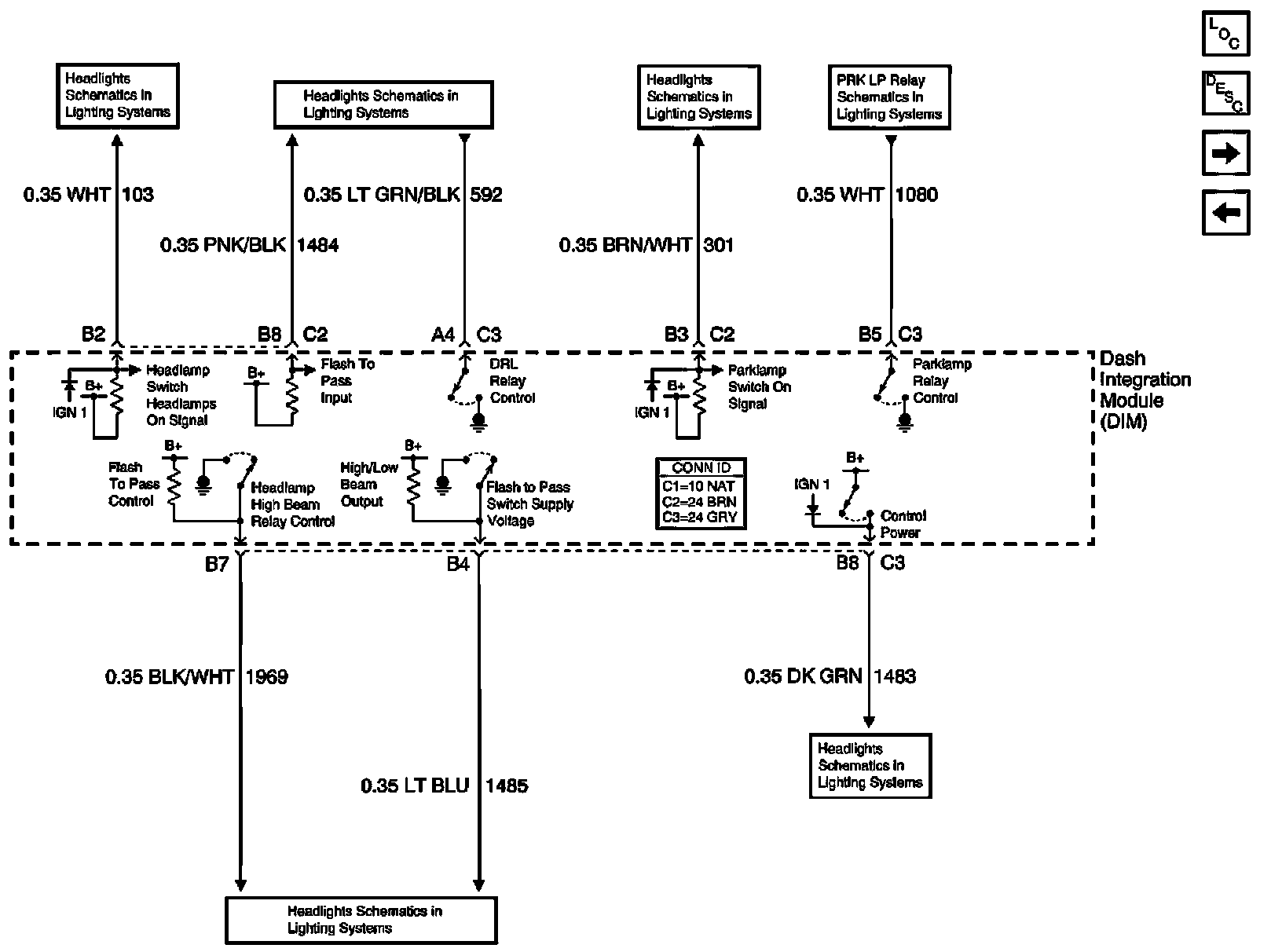

DIM Input/Output (1 of 2)
DIM Input/Output (2 of 2)

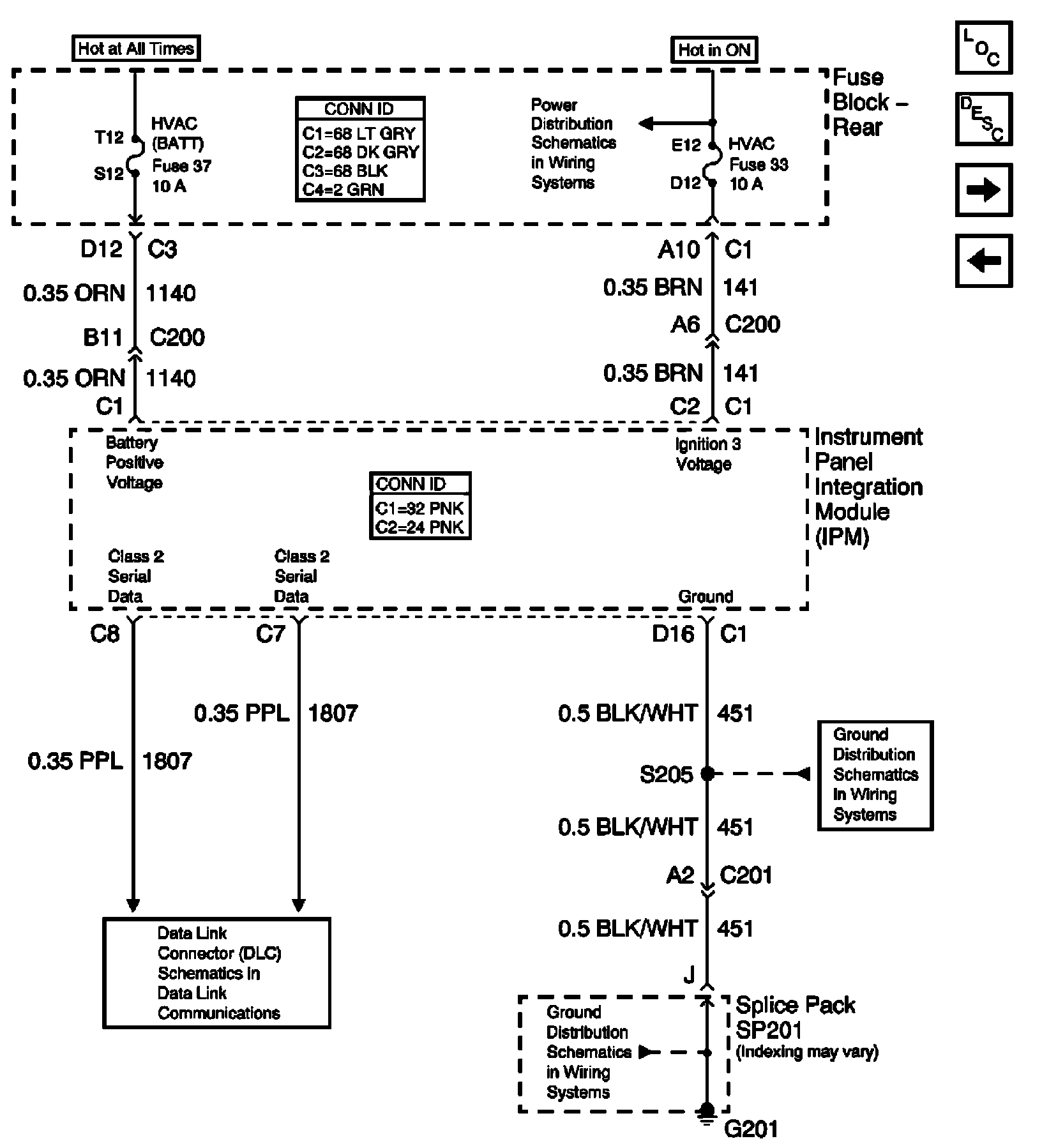

IPM Power and Grounds

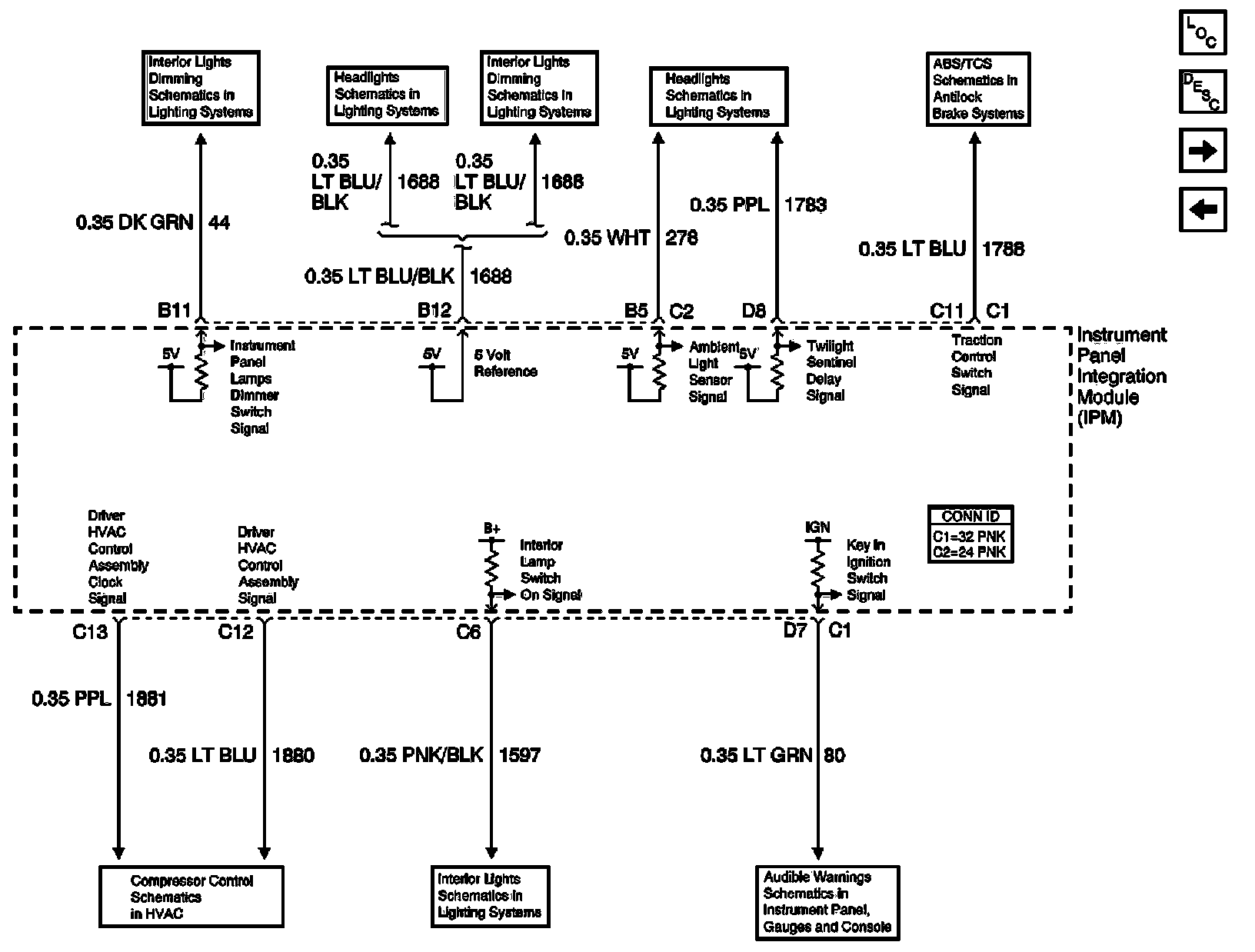

IPM Input/Output (1 of 2)

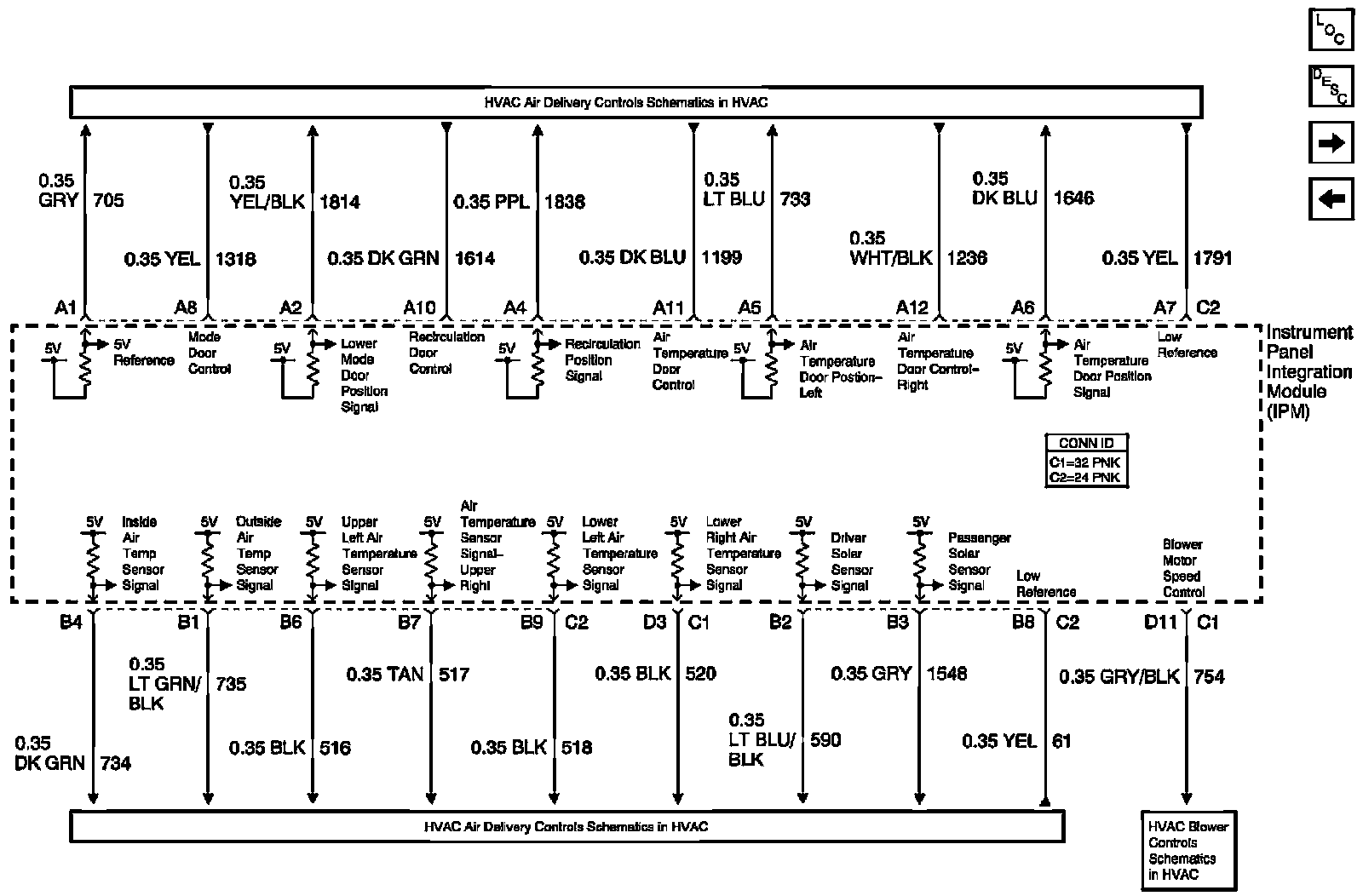

IPM Input/Output (2 of 2)

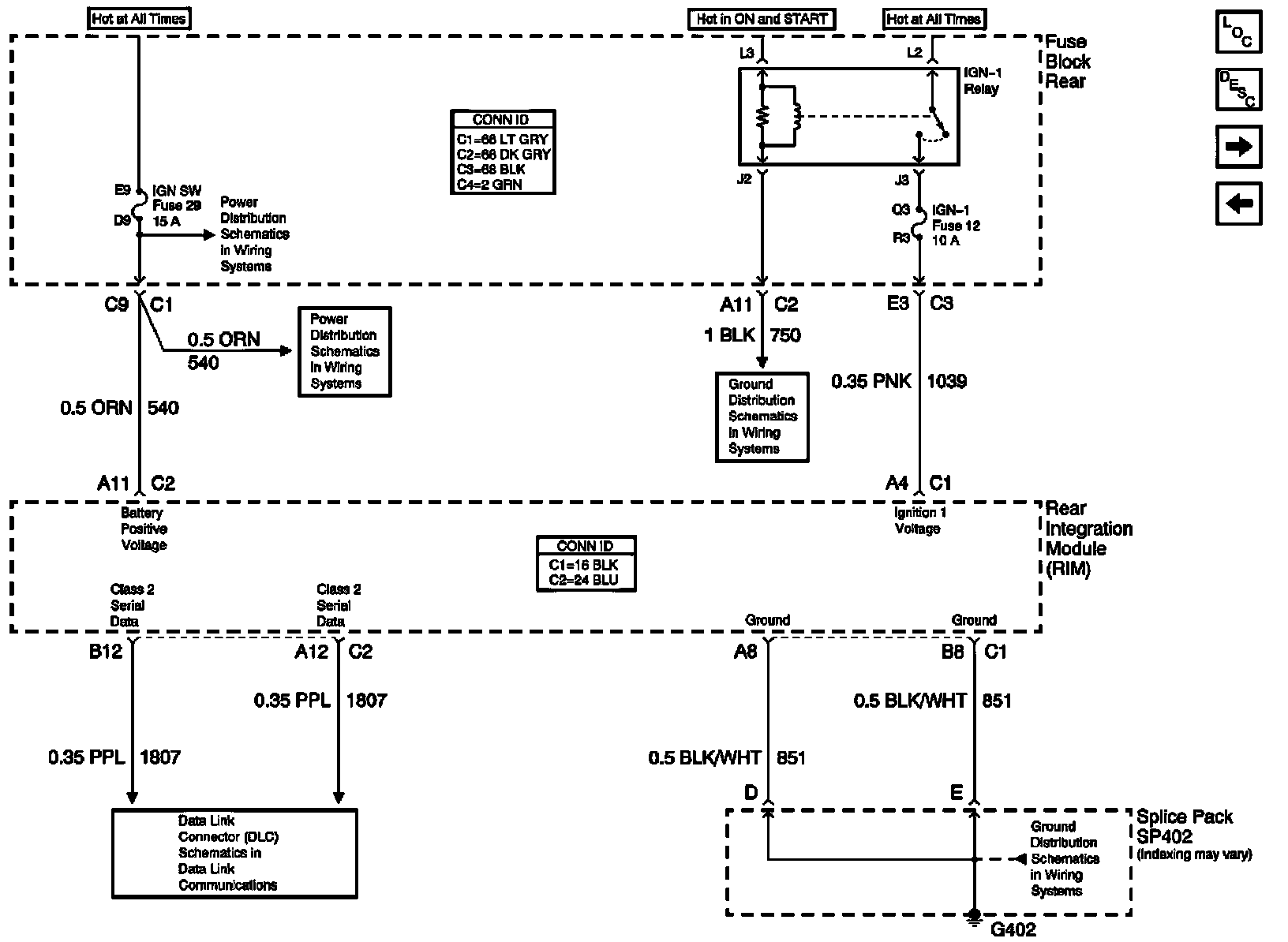

RIM Power and Grounds

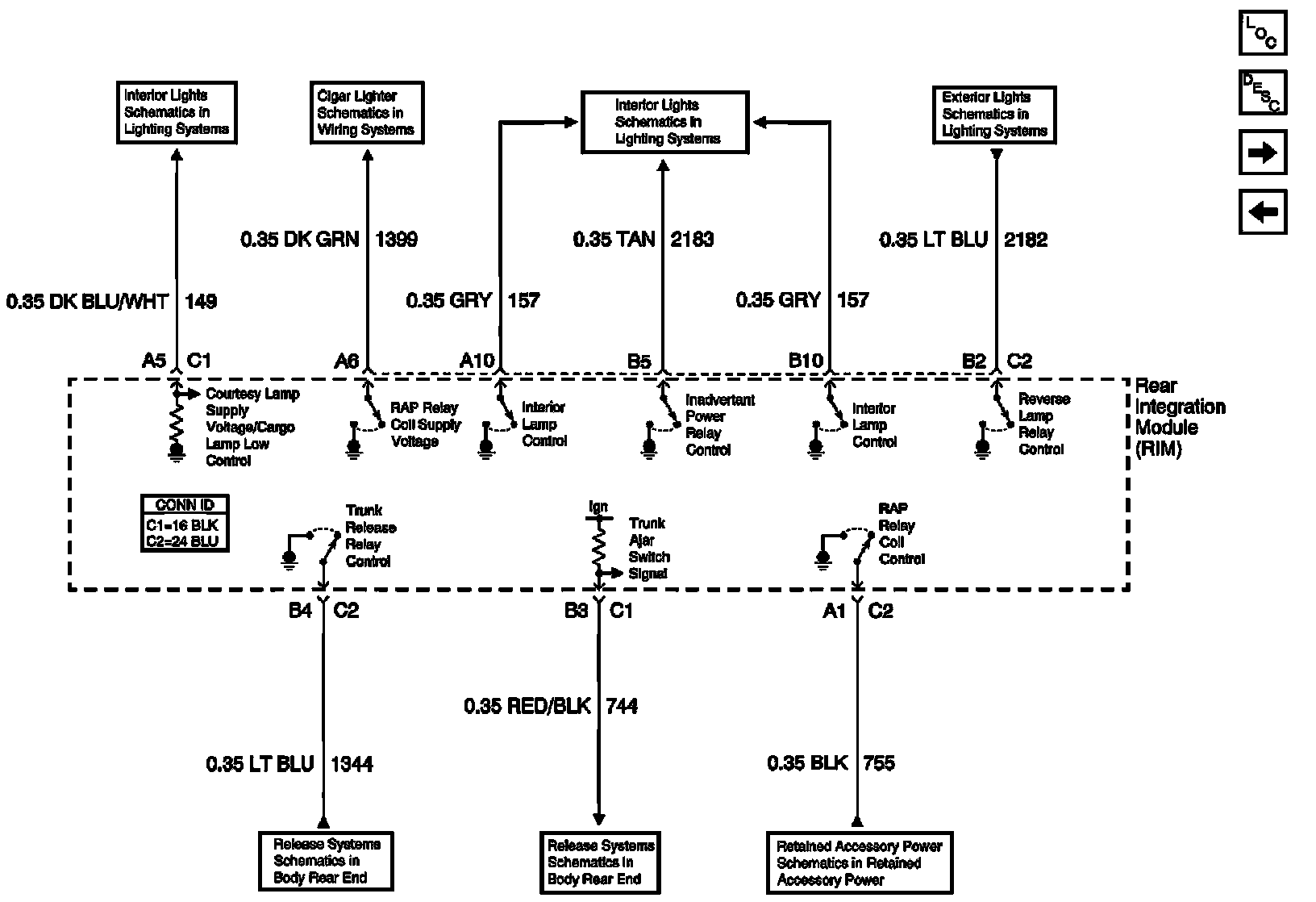

RIM Input/Output (1 of 2)
RIM Input/Output (2 of 2)
