Expansion Block/Orifice Tube: Service and Repair
EXPANSION (ORIFICE) TUBE REPLACEMENTTOOLS REQUIRED
J 39400-A Halogen Leak Detector
REMOVAL PROCEDURE
1. Recover the refrigerant.

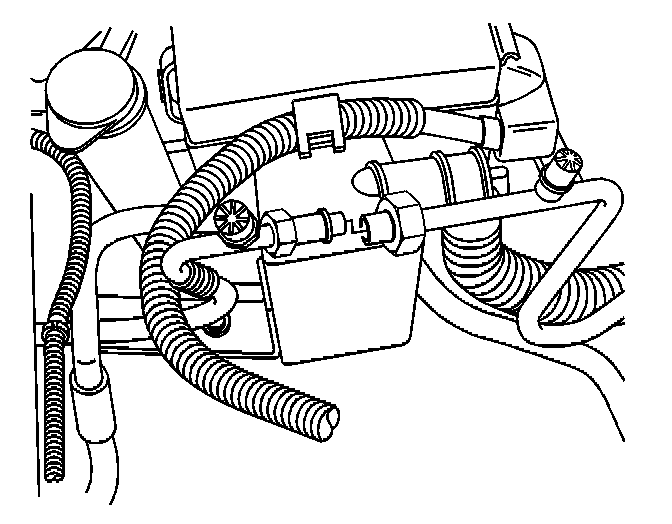

2. Disconnect the A/C evaporator hose from the retaining clips.
3. Separate the A/C evaporator hose at the expansion tube location.

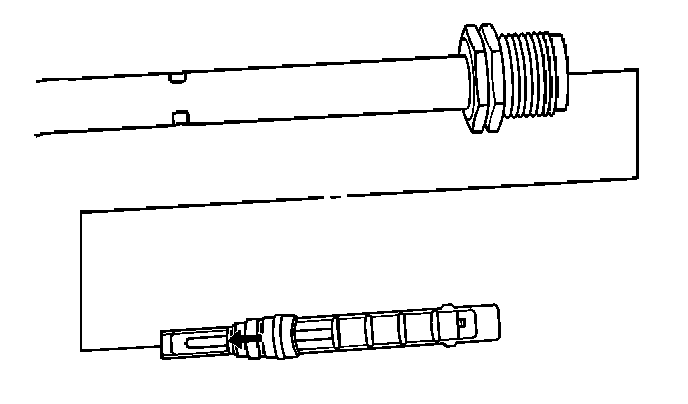

4. Remove the expansion tube from the line.
INSTALLATION PROCEDURE
1. Install the new expansion tube.
IMPORTANT:
- Lubricate the new expansion tube O-ring with mineral base 525 viscosity refrigerant oil before installing into the evaporator hose.
- Ensure that the short screen and arrow face toward the evaporator.
2. Connect the A/C evaporator tube.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the O-ring joint connections to 27 N.m (20 lb ft).
3. Install the A/C evaporator hose into the retaining clips.
4. Recharge the A/C system.
5. Leak test the fittings of the component using the J 39400-A.
