Connector Views
Connector Views

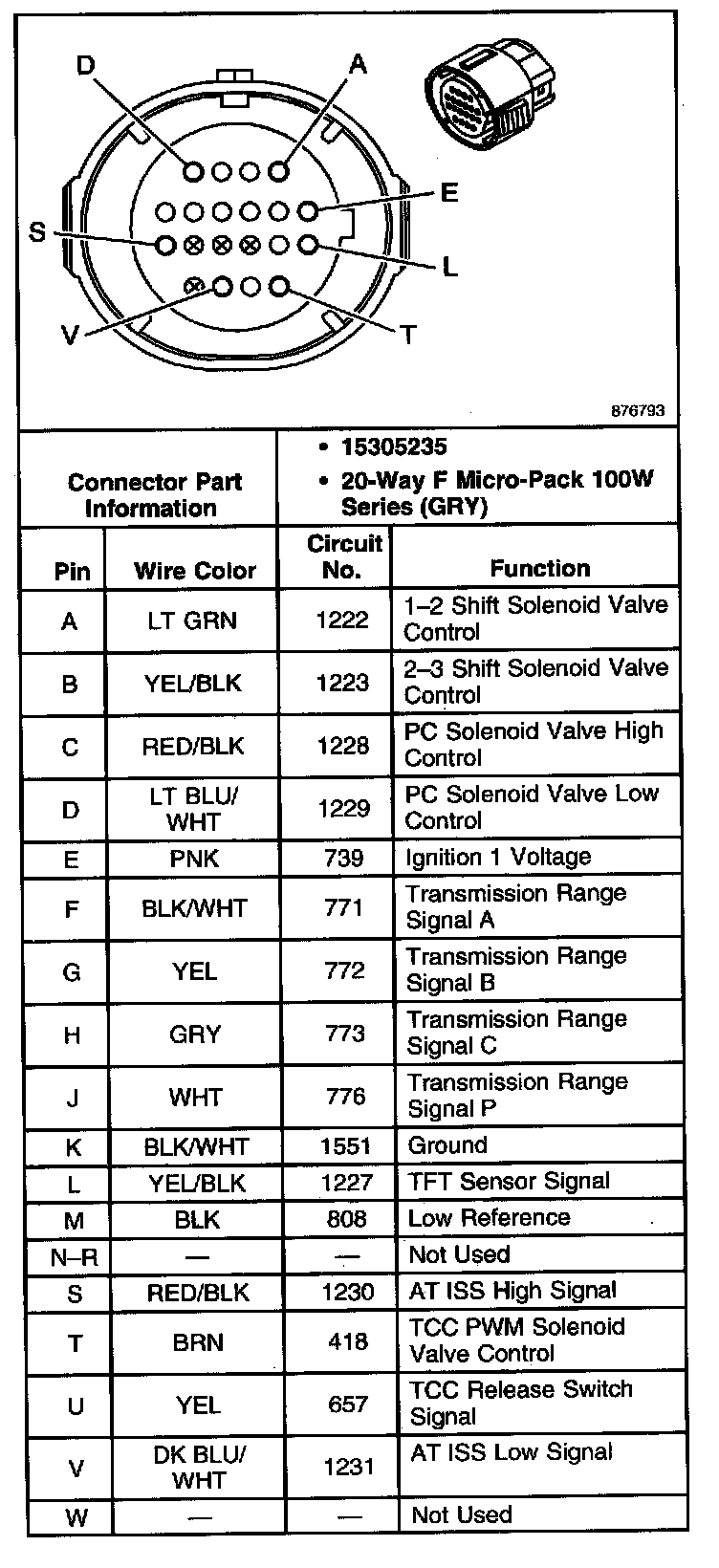

AT Inline 20-Way Connector (Engine Side):

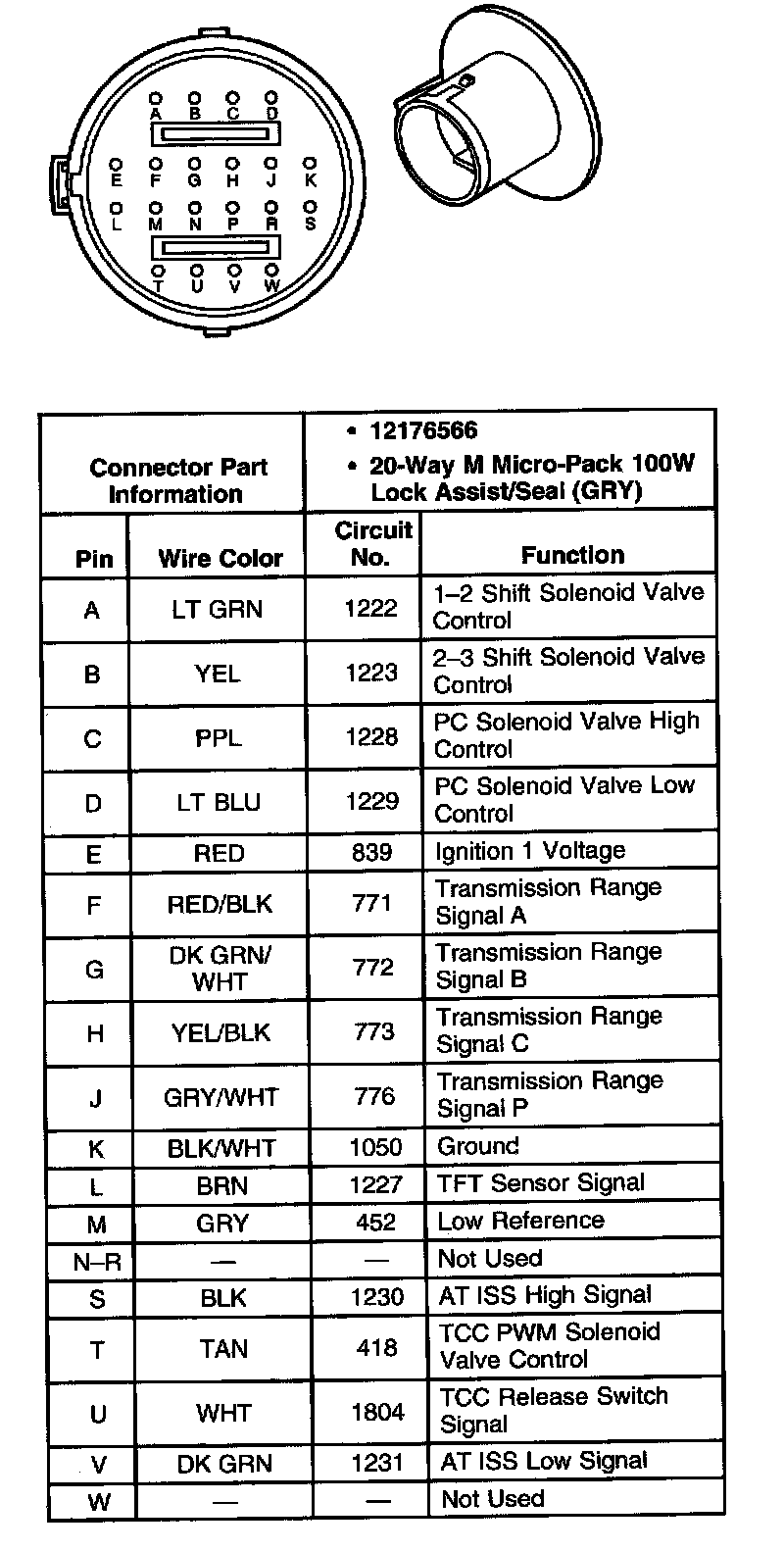

AT Inline 20-Way Connector (Transmission Side):
