Cruise Control Servo Cable: Service and Repair

CRUISE CONTROL CABLE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the fuel injector site shield.




2. Disconnect the cruise control cable at the TBI cam and the throttle body bracket.
3. Disconnect the cruise control cable from the cruise control module.

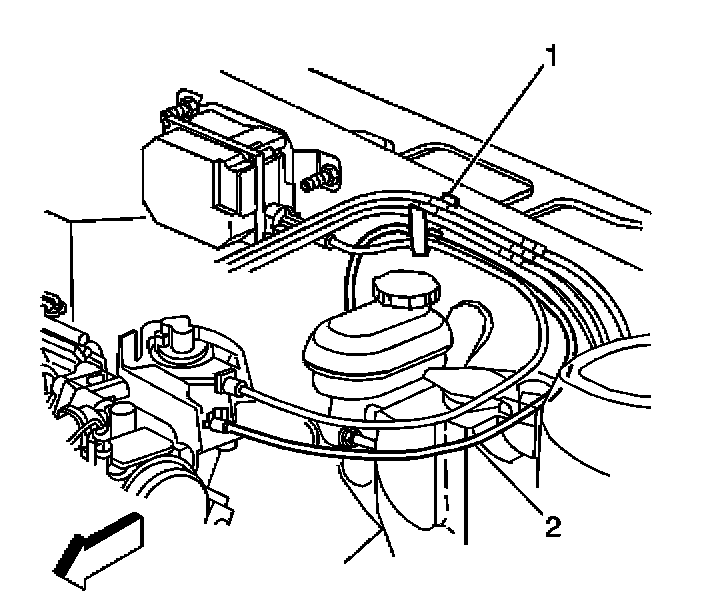

4. Remove the cable from the retainers (1).

IMPORTANT: Note the cable routing for replacement.

INSTALLATION PROCEDURE




1. Connect the cruise control cable to the cruise control module.

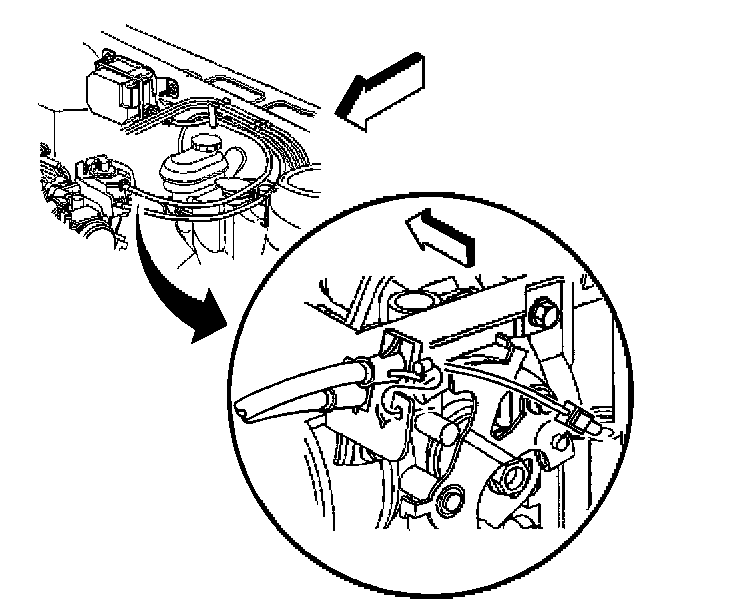

2. Install the cruise control cable slug TBI cam. Ensure that the cable is under the hook.
3. Snap the cable to the throttle body bracket.

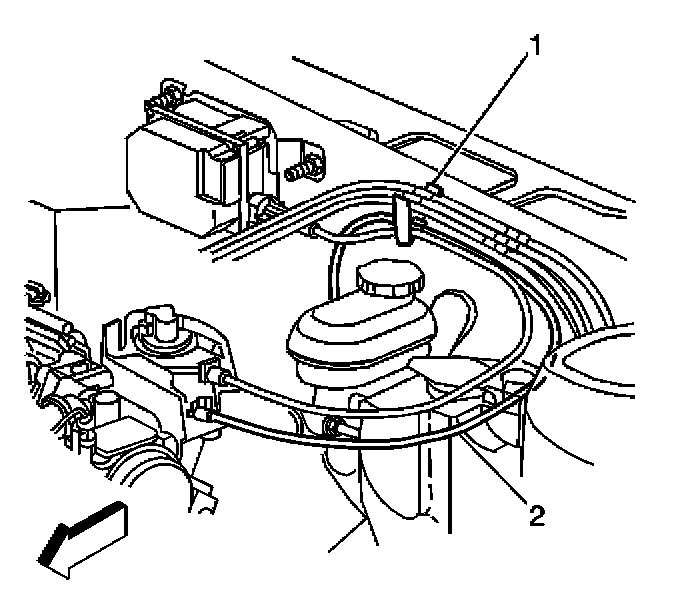

4. Install the cable to the retainers (1).

IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation for the complete operational details.

5. Install the fuel injector site shield.
