Service Port HVAC: Service and Repair

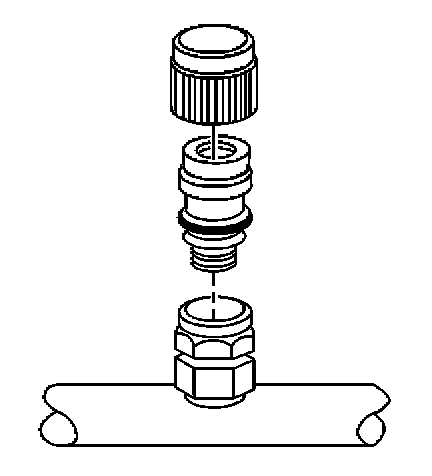

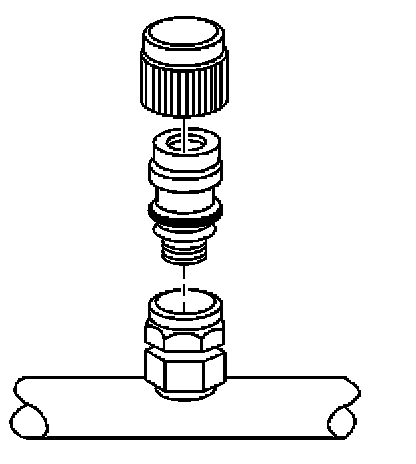

SERVICE PORTS REPLACEMENT

TOOLS REQUIRED
J 39037 Charge Valve Octagon Socket

REMOVAL PROCEDURE
1. Remove the service port cap.
2. Recover the refrigerant.




3. Use the J 39037 to remove the service port.

INSTALLATION PROCEDURE
1. Replace the O-ring.




2. Install the service port valve.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the valve to 11 N.m (98 lb in).

3. Evacuate and charge the system.
4. Leak test the A/C service port.
5. Install the service port cap.
