Fluid Pan, A/T

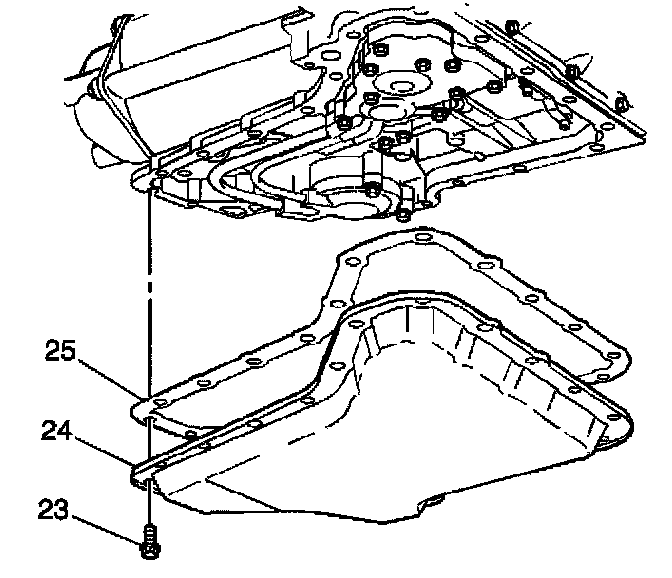

Install the oil pan gasket (25).
Install the oil pan (24).
Install the oil pan bolts (23).
Tighten the bolts to 14 Nm (10 ft. lbs.).
Lower the vehicle.
