Control Module, A/T

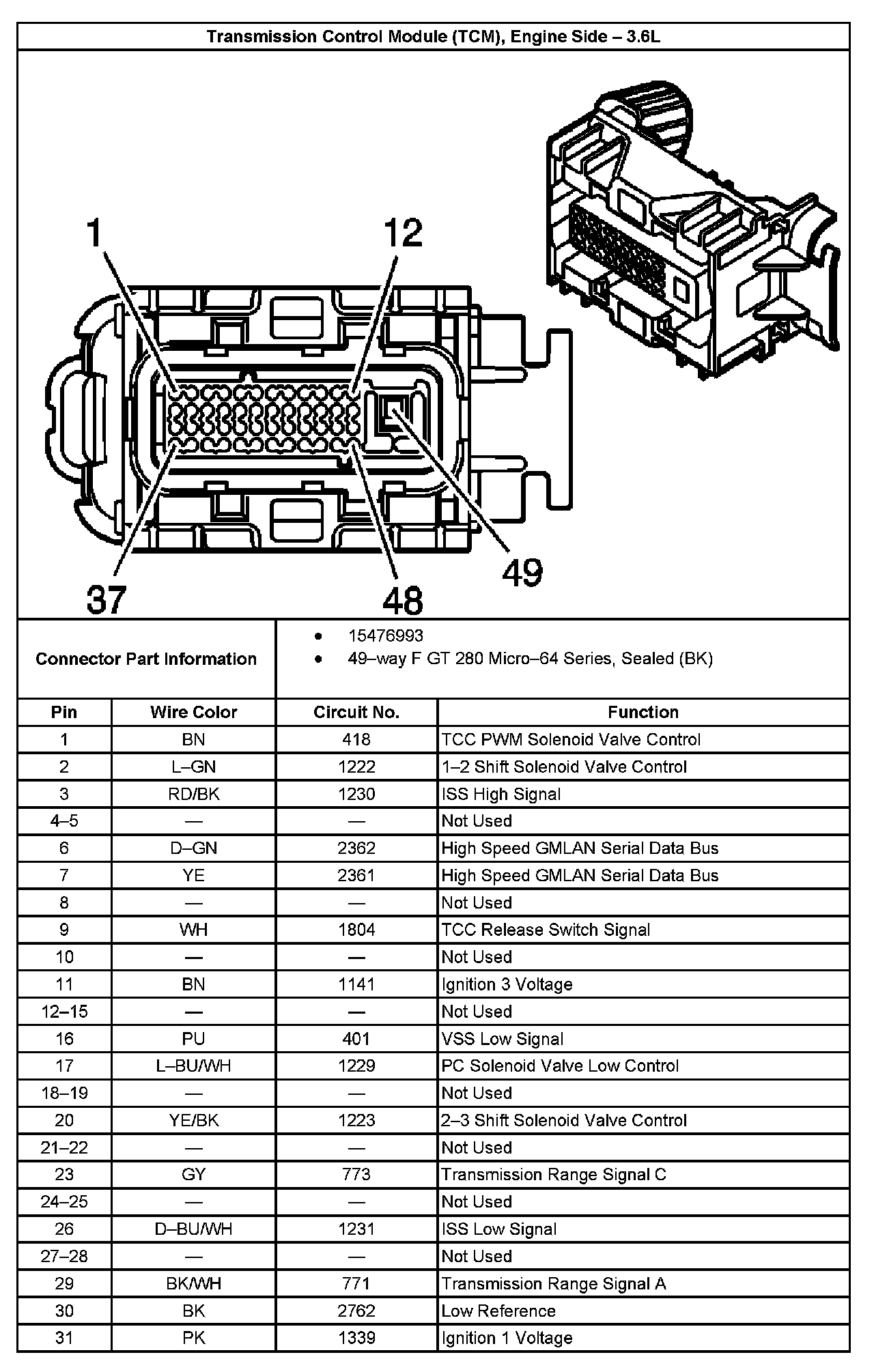

Transmission Control Module (TCM) Connector End View, Engine Side - 3.6L (1 Of 2):

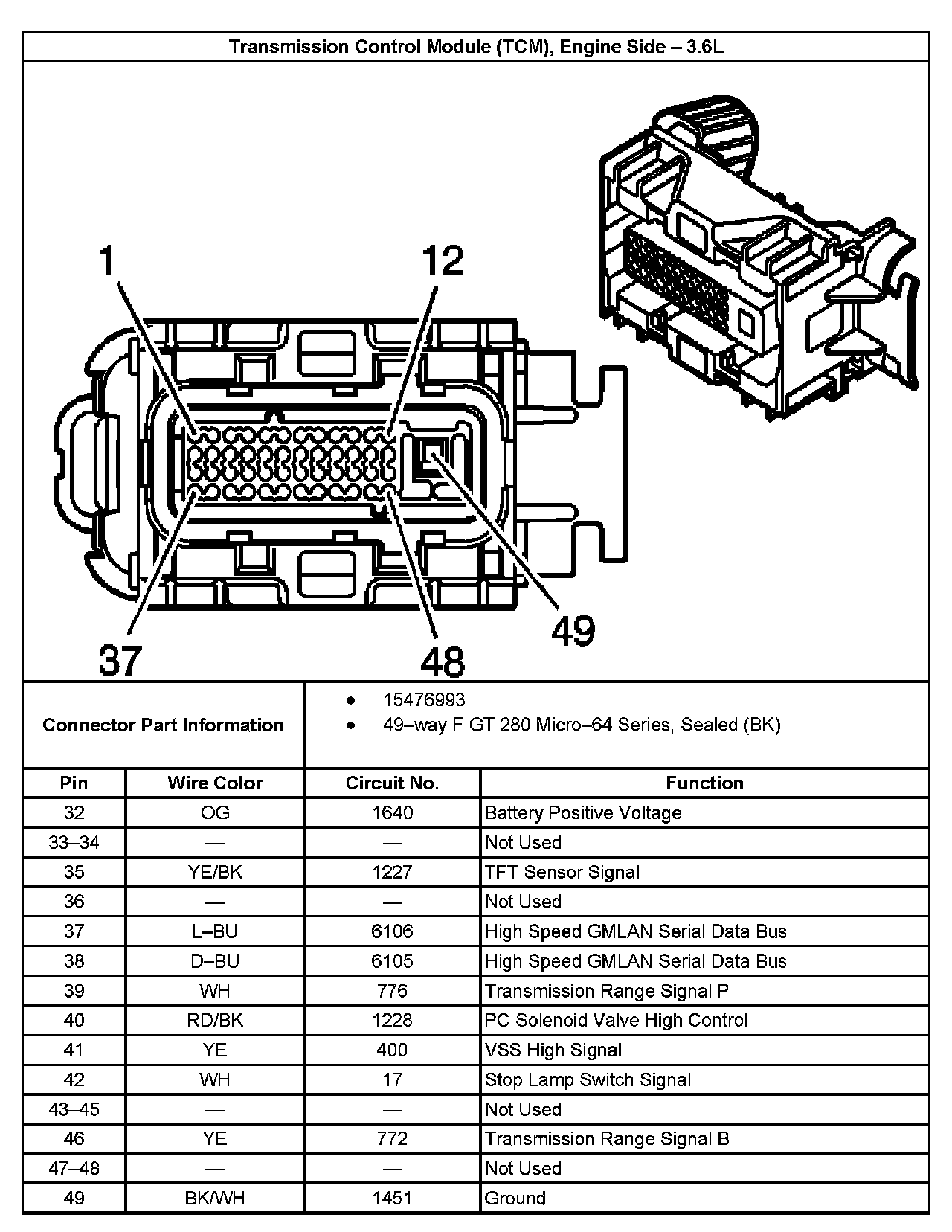

Transmission Control Module (TCM) Connector End View, Engine Side - 3.6L (2 Of 2):
