Antilock Brakes / Traction Control Systems
>>
Steering Angle Sensor
Steering Angle Sensor

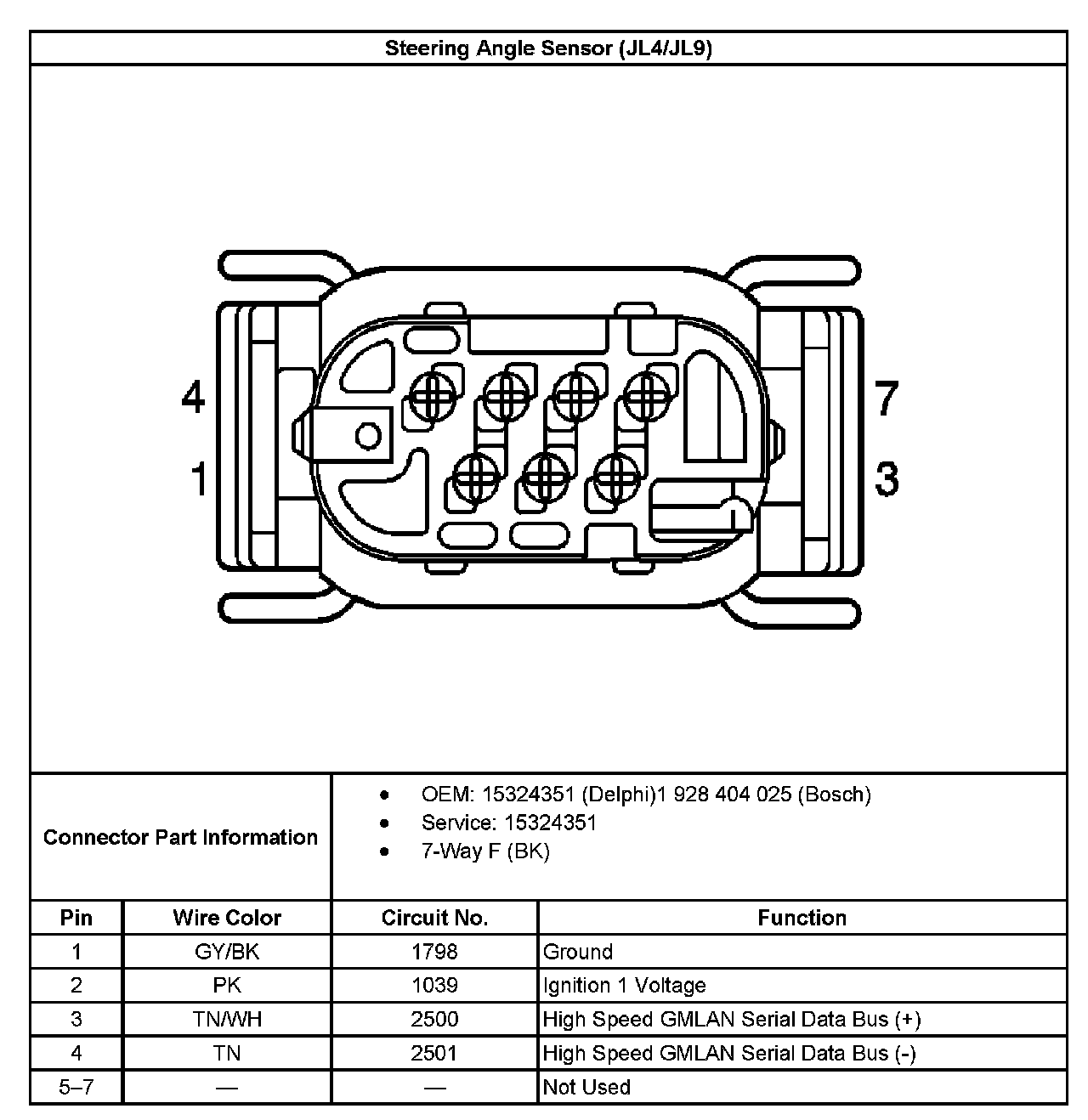

Steering Angle Sensor (JL4/JL9) Connector End View:
