Disconnect/Connect Procedure

BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE

REMOVAL PROCEDURE
1. Remove the rear seat cushion.

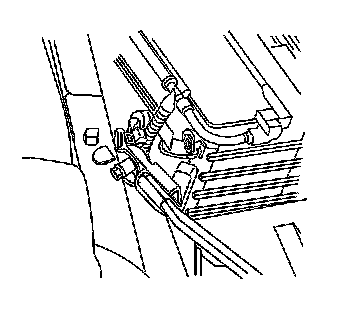

2. Disconnect the negative battery cable from the battery.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

INSTALLATION PROCEDURE




1. Connect the negative battery cable to the battery.

Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the rear seat cushion.
