Power Moding Schematics
Power Moding Schematics
Power Moding Schematics

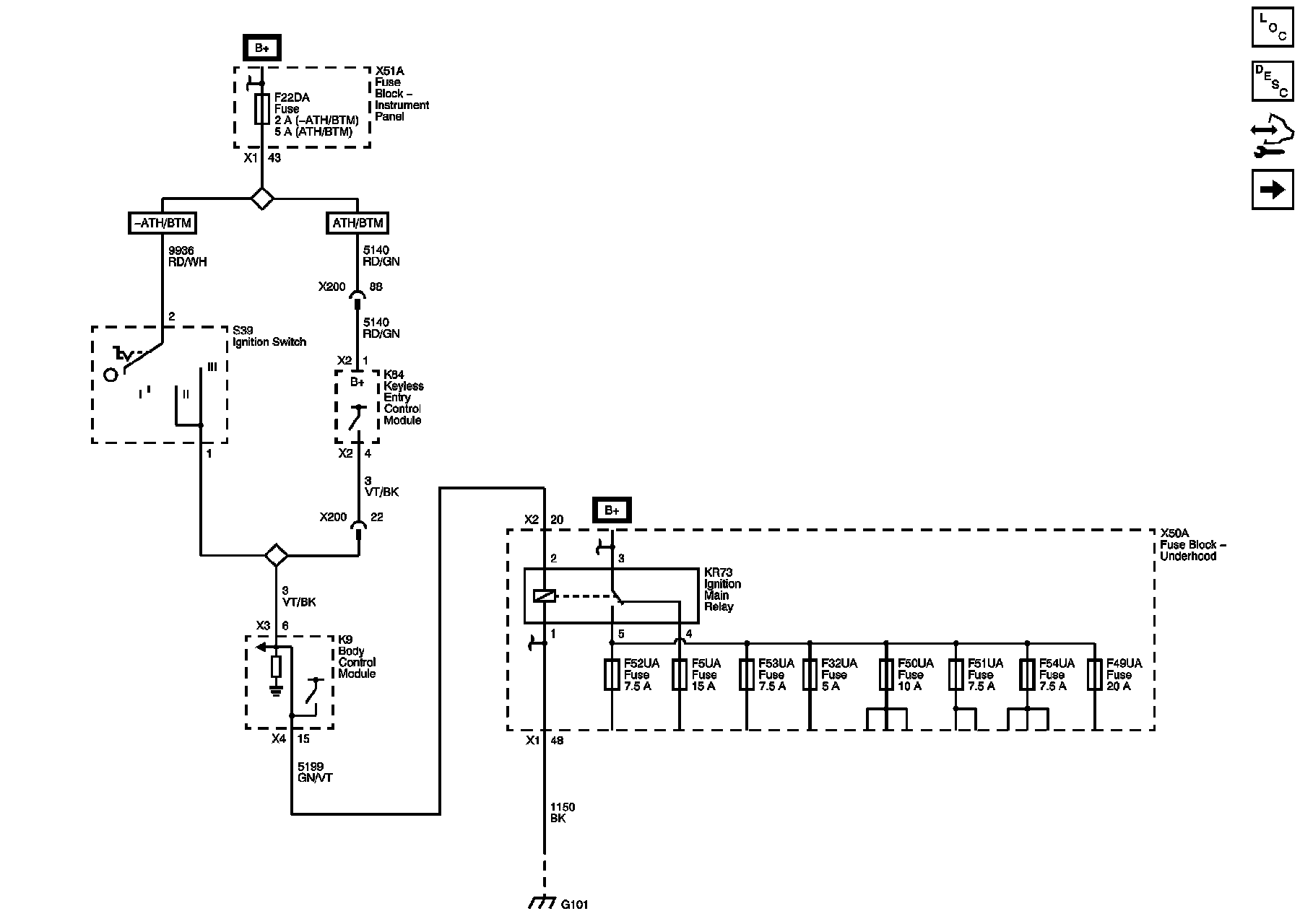

Ignition Main Relay
Auxiliary Power Relay
