Turn Signal Flasher: Service and Repair

Hazard and Turn Signal Flasher Replacement

Removal Procedure

1. Remove the driver side I/P outer trim cover.

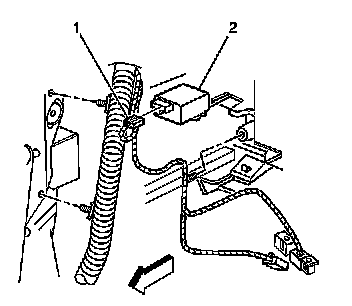

2. Remove the flasher module (2) off the I/P carrier.
3. Disconnect the electrical connector (1).

Installation Procedure




1. Connect the electrical connector (1) to the flasher module (2).
2. Slide the flasher module retaining clip onto the I/P carrier.
3. Install the driver side I/P outer trim cover.
