5L40-E/5L50-E - Automatic Transmission

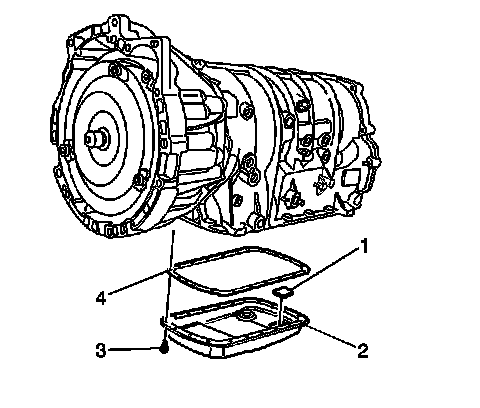

Install the fluid pan (2) and the gasket (4) at the same time.
Install the fluid pan bolts (3).
Tighten the bolts to 11 N.m (97 lb in).
