Steering Assist Component Views (LHD)

Steering Assist Component Views (LHD)

Lower Left Side of the Engine Compartment

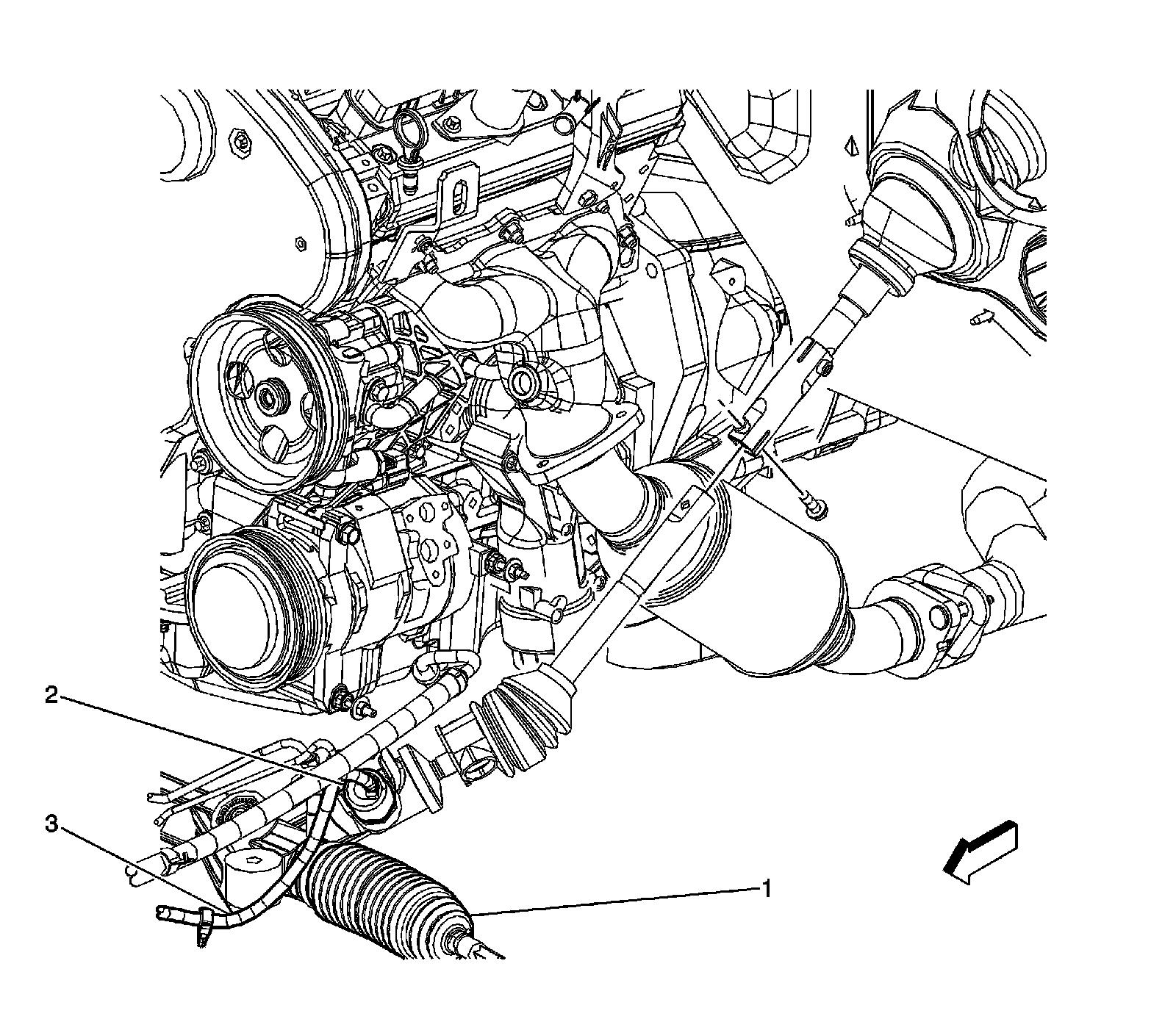

Variable Effort Steering Actuator (LHD w/FE3):

1 - Power Steering Rack
2 - Variable Effort Steering Actuator
3 - Engine Harness

Steering Wheel Position Sensor

Steering Wheel Position Sensor:

1 - Steering Angle Sensor
2 - Steering Column
