Noise Diagnosis - Front Suspension



Noise Diagnosis - Front Suspension

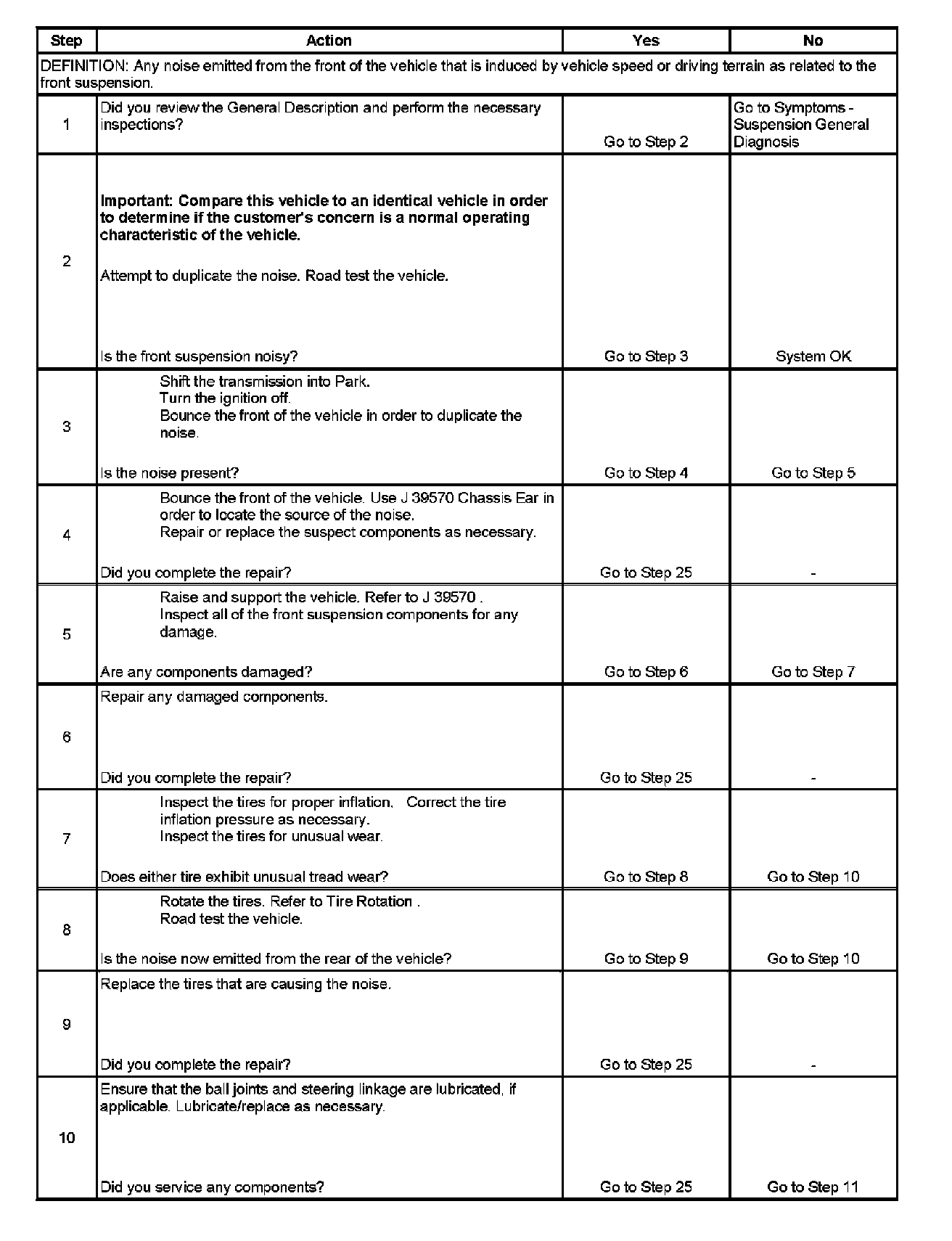

Step 1 - Step 10:

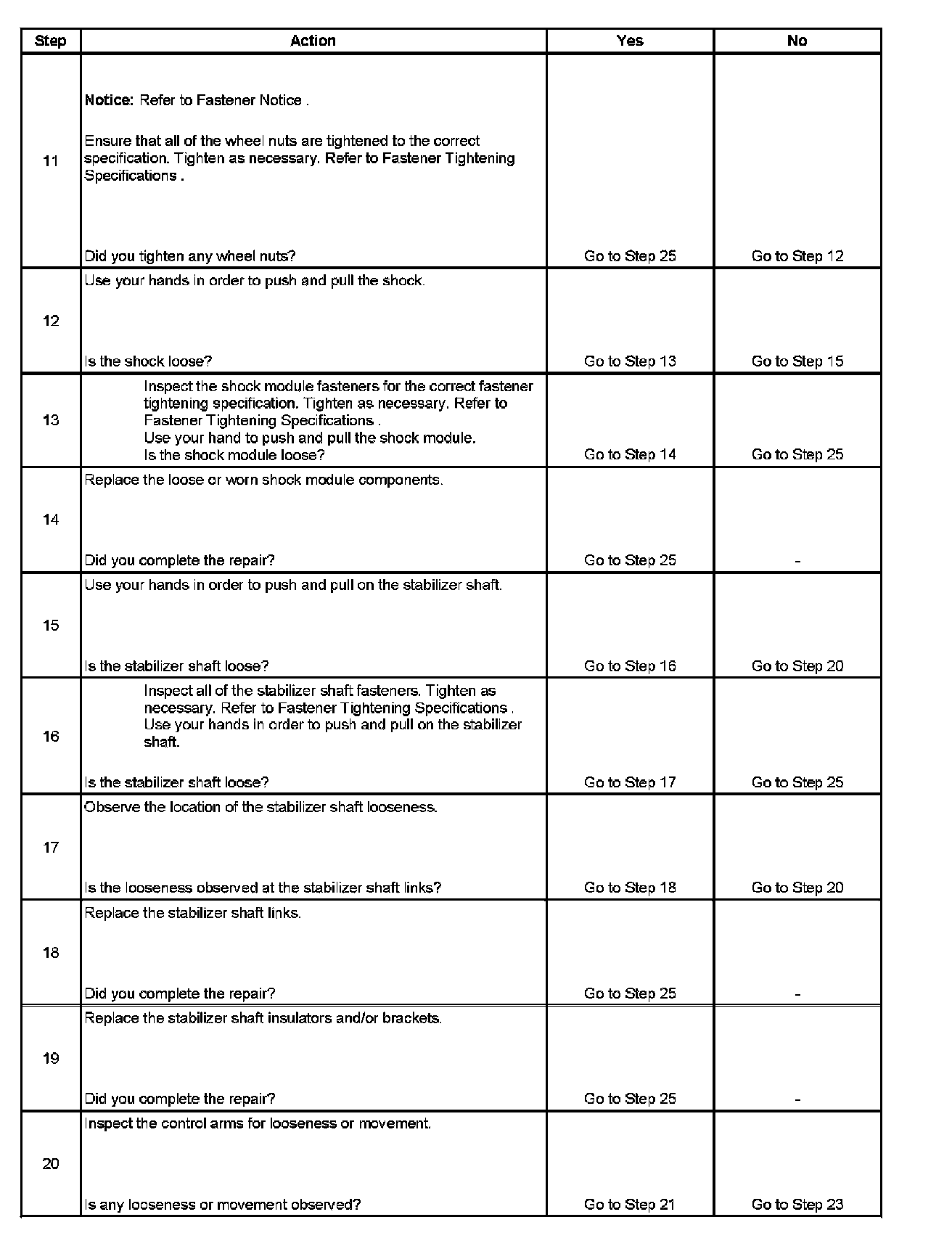

Step 11 - Step 20:

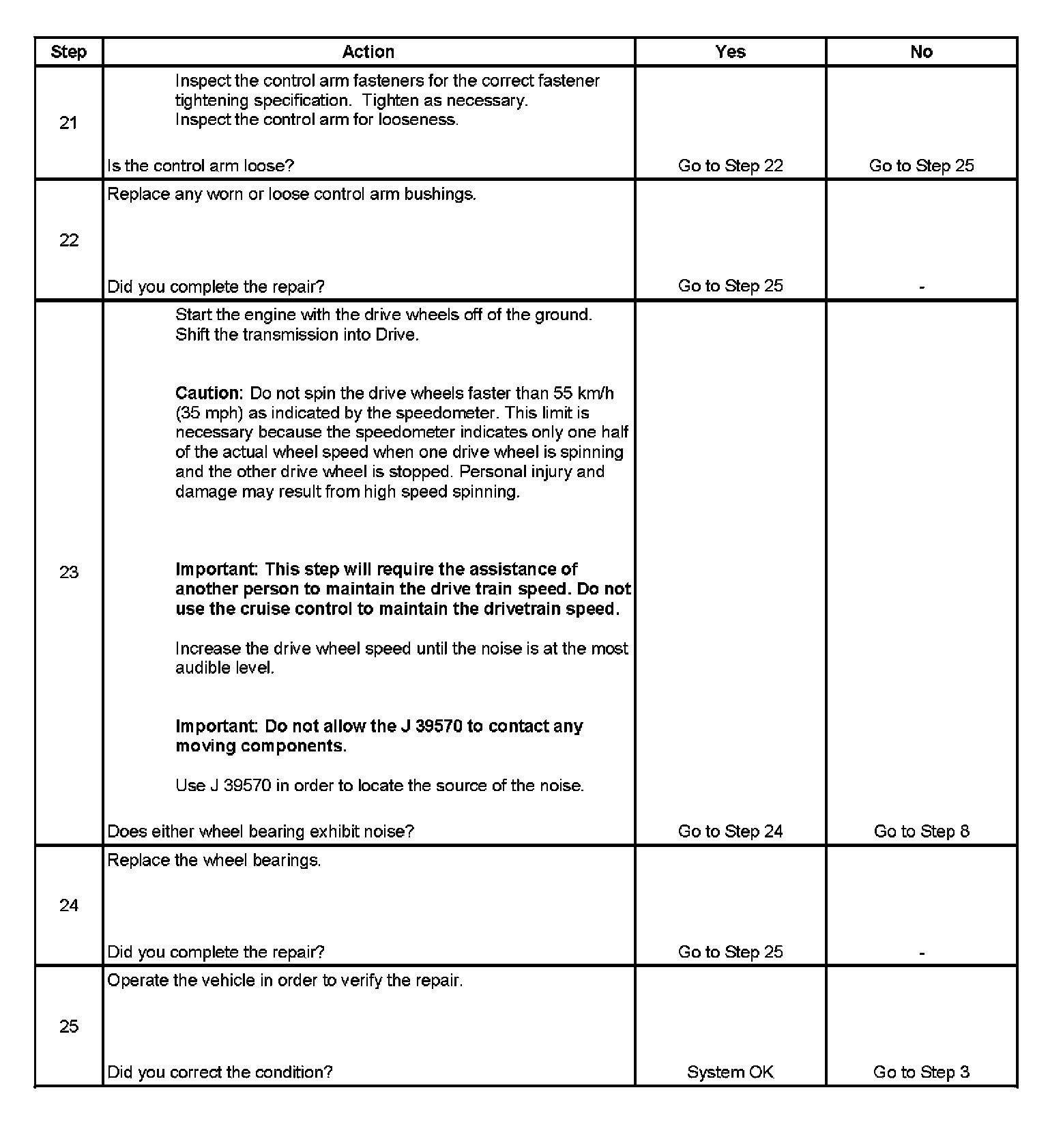

Step 21 - Step 25:
