2-6 Clutch Overhaul (6L50)



2-6 Clutch Overhaul (6L50)

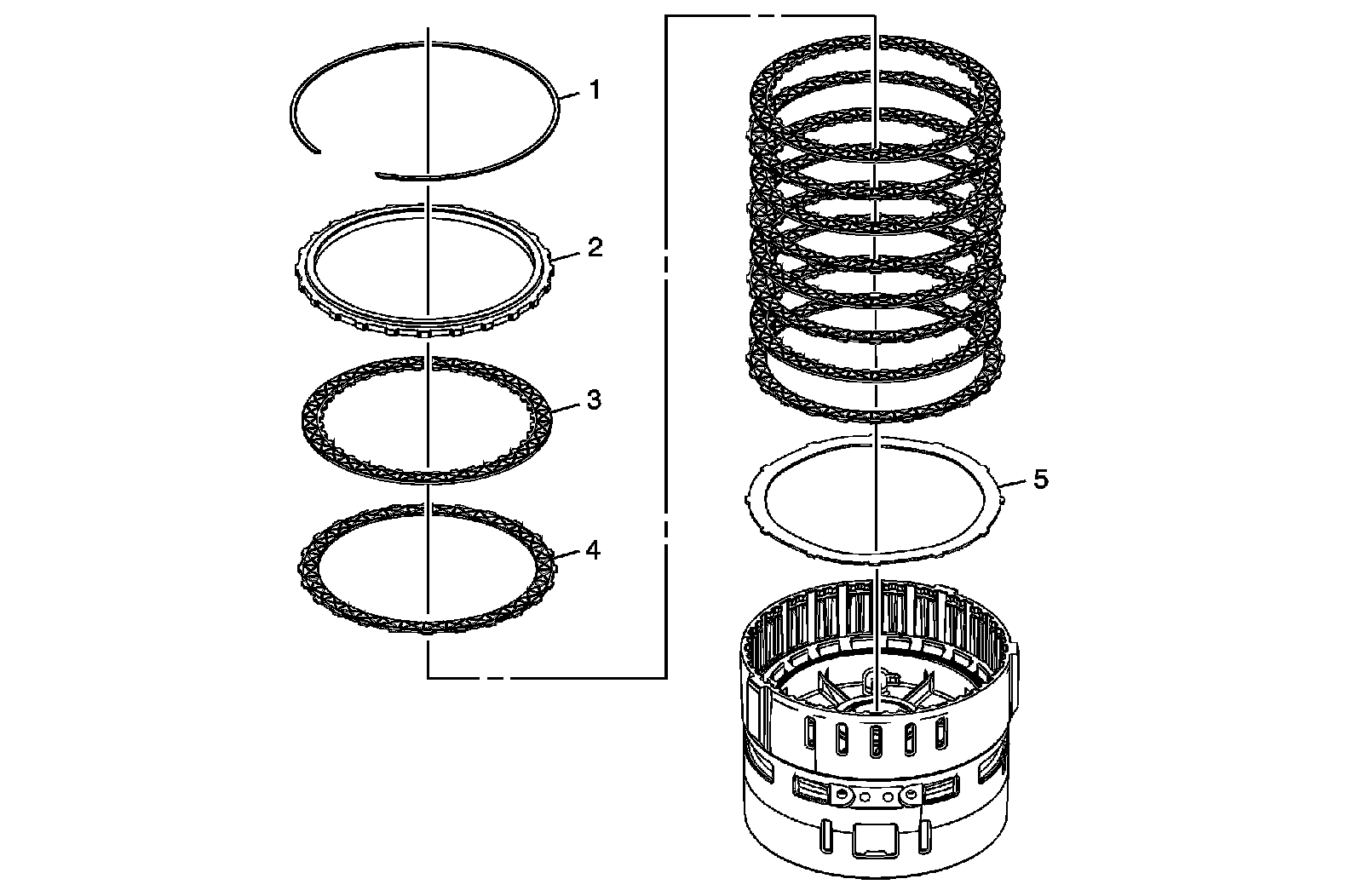

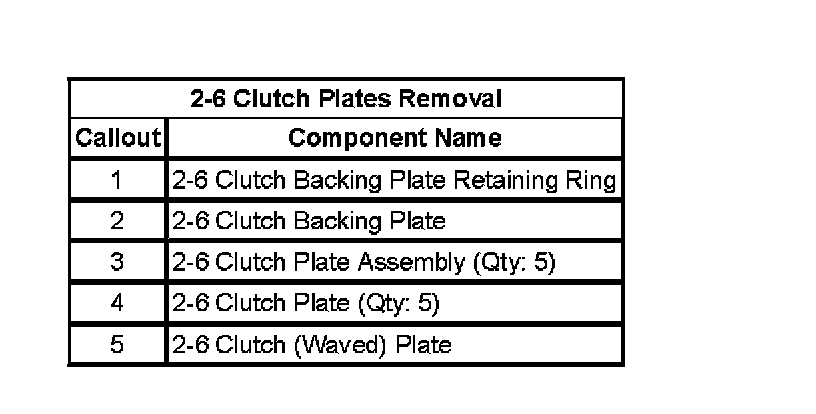

2-6 Clutch Plates Removal

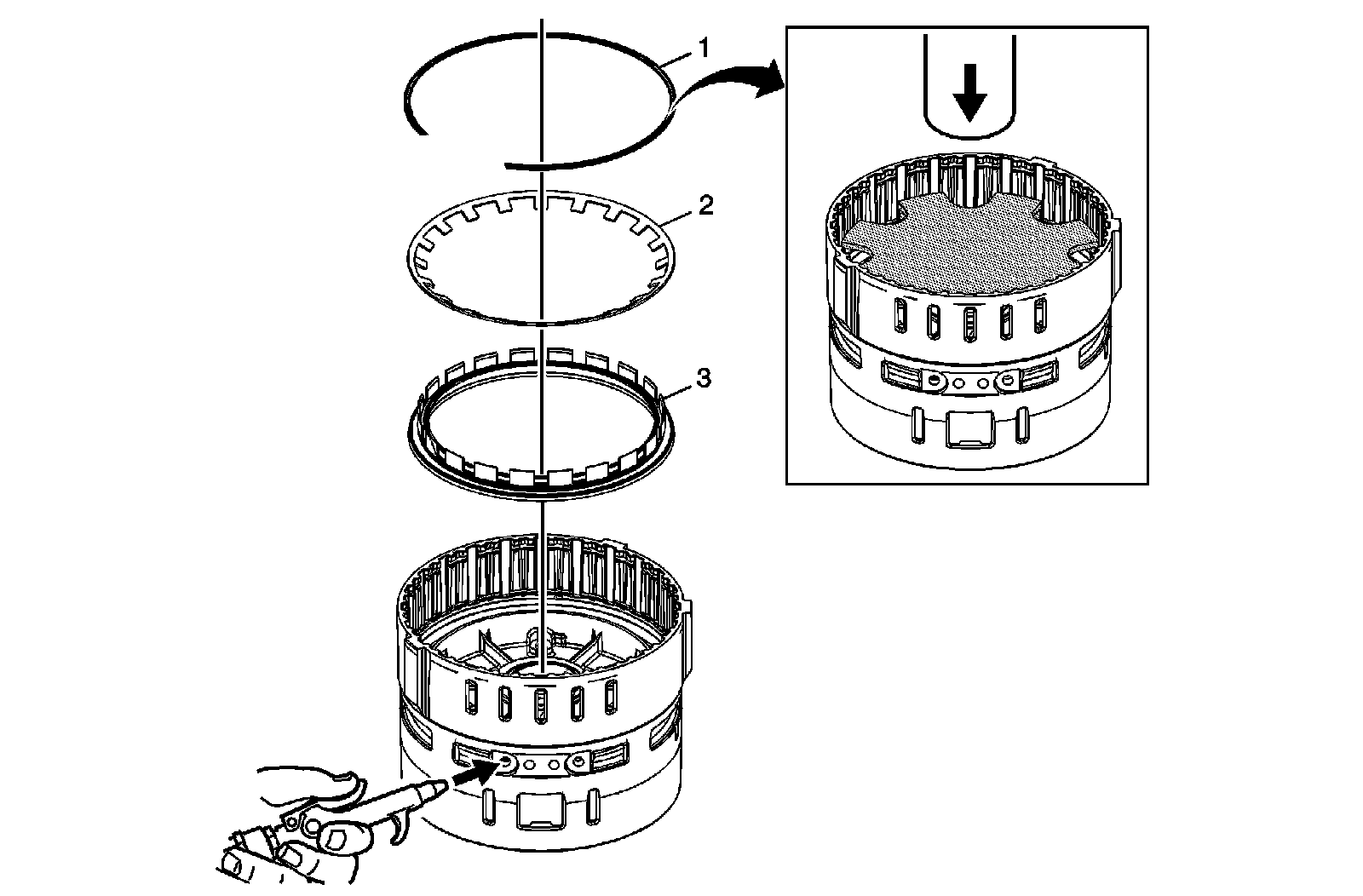

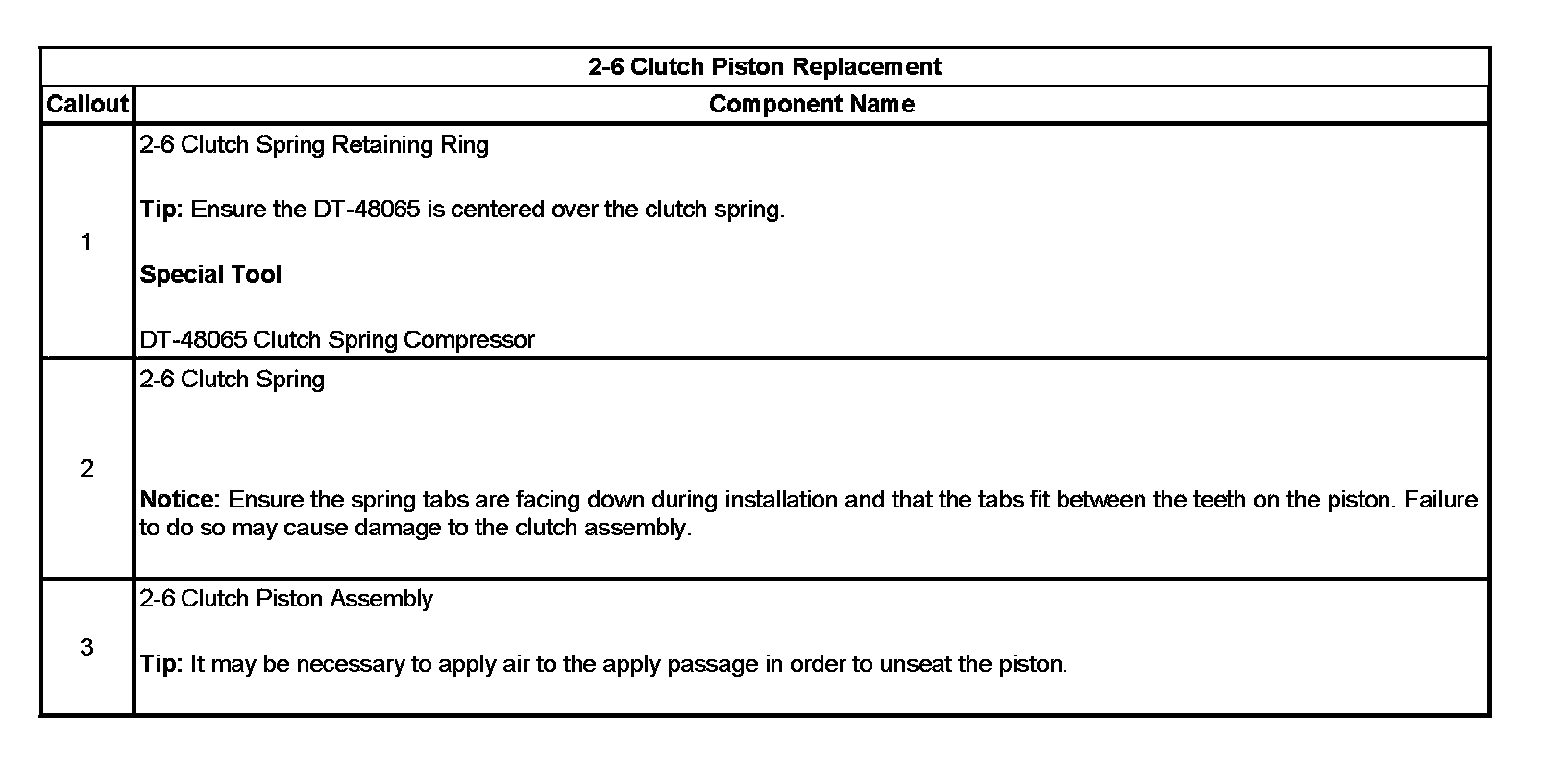

2-6 Clutch Piston Replacement

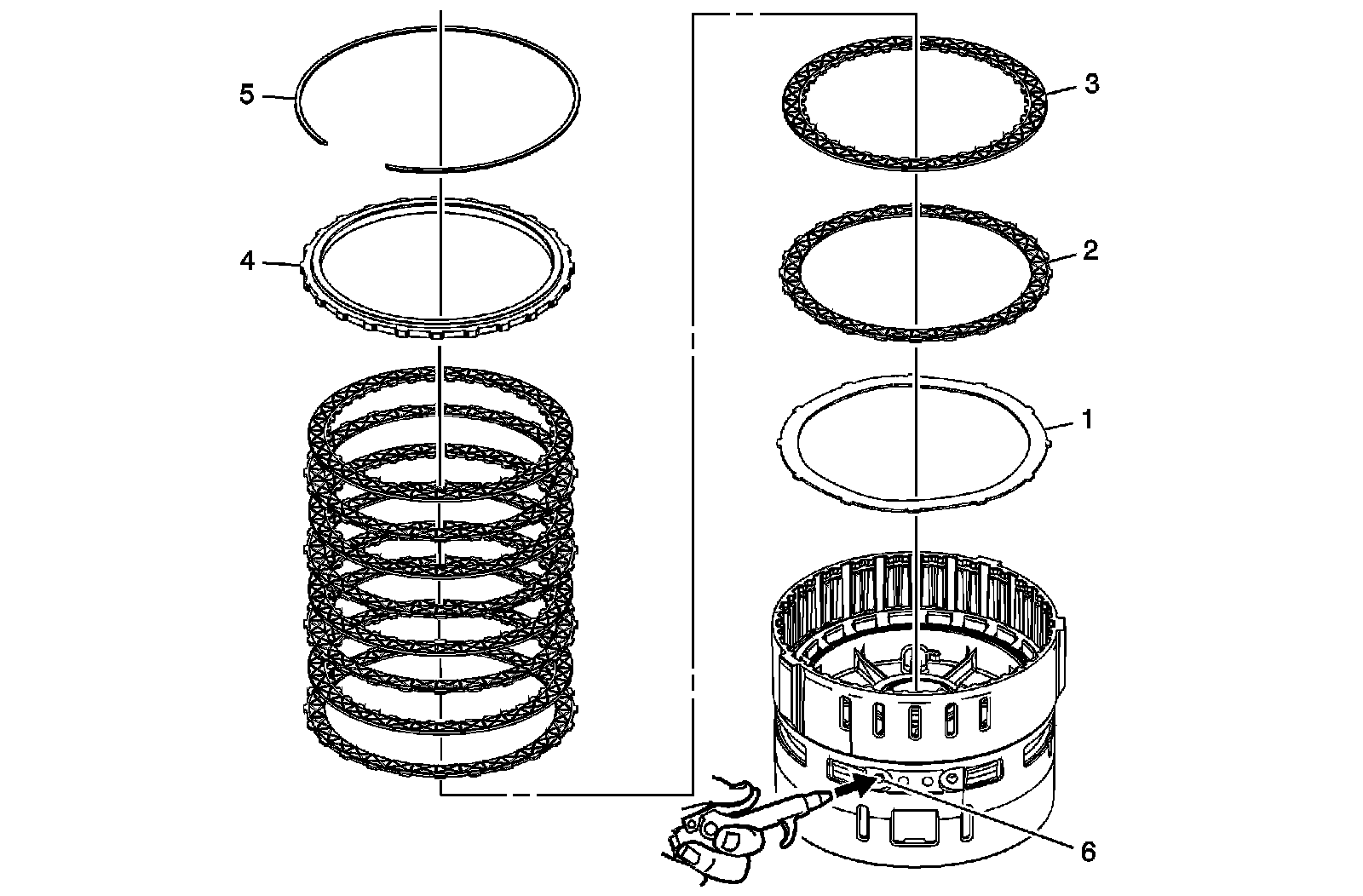

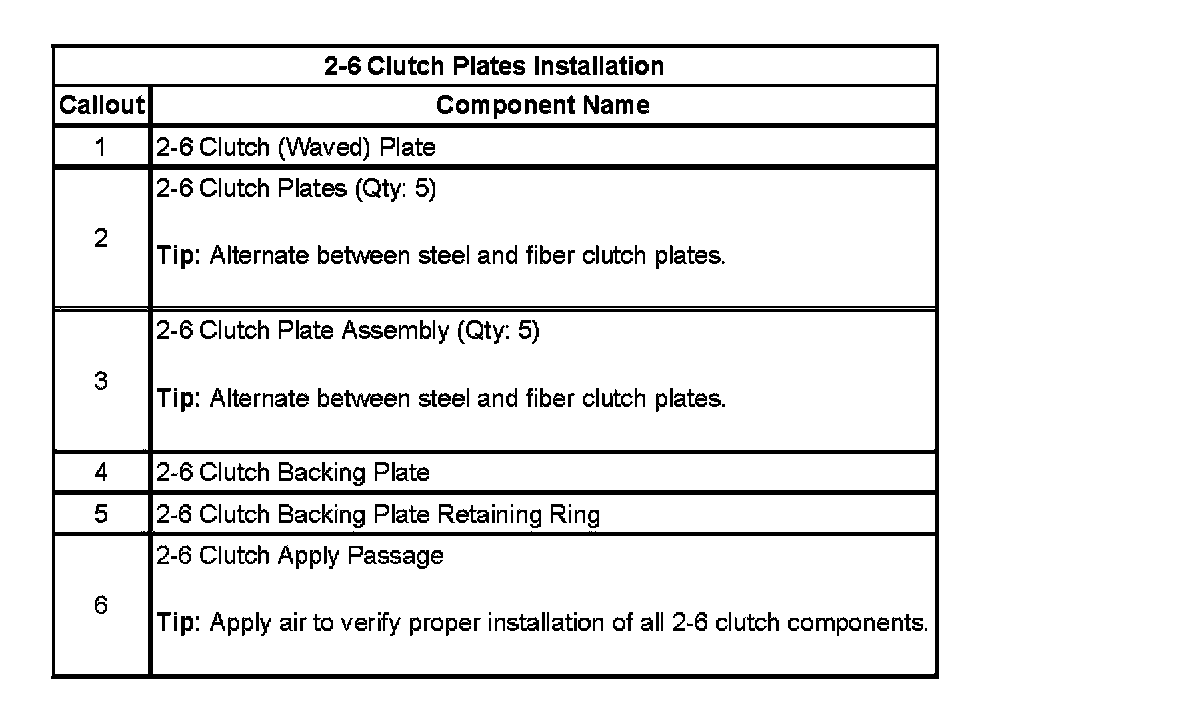

2-6 Clutch Plates Installation
