4-5-6 Clutch Overhaul (6L50)



4-5-6 Clutch Overhaul (6L50)

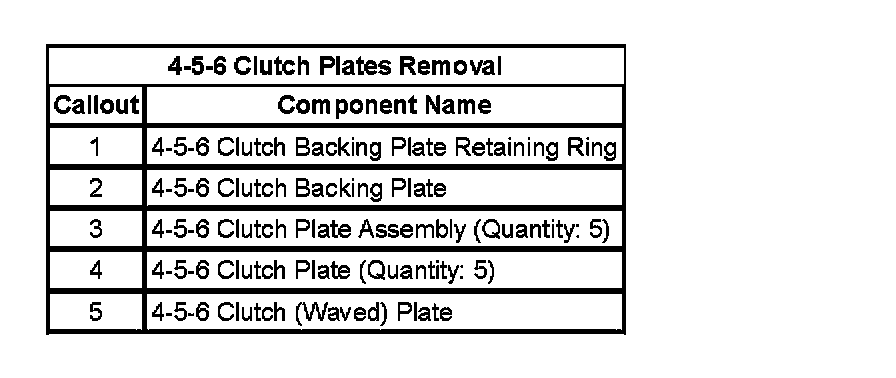

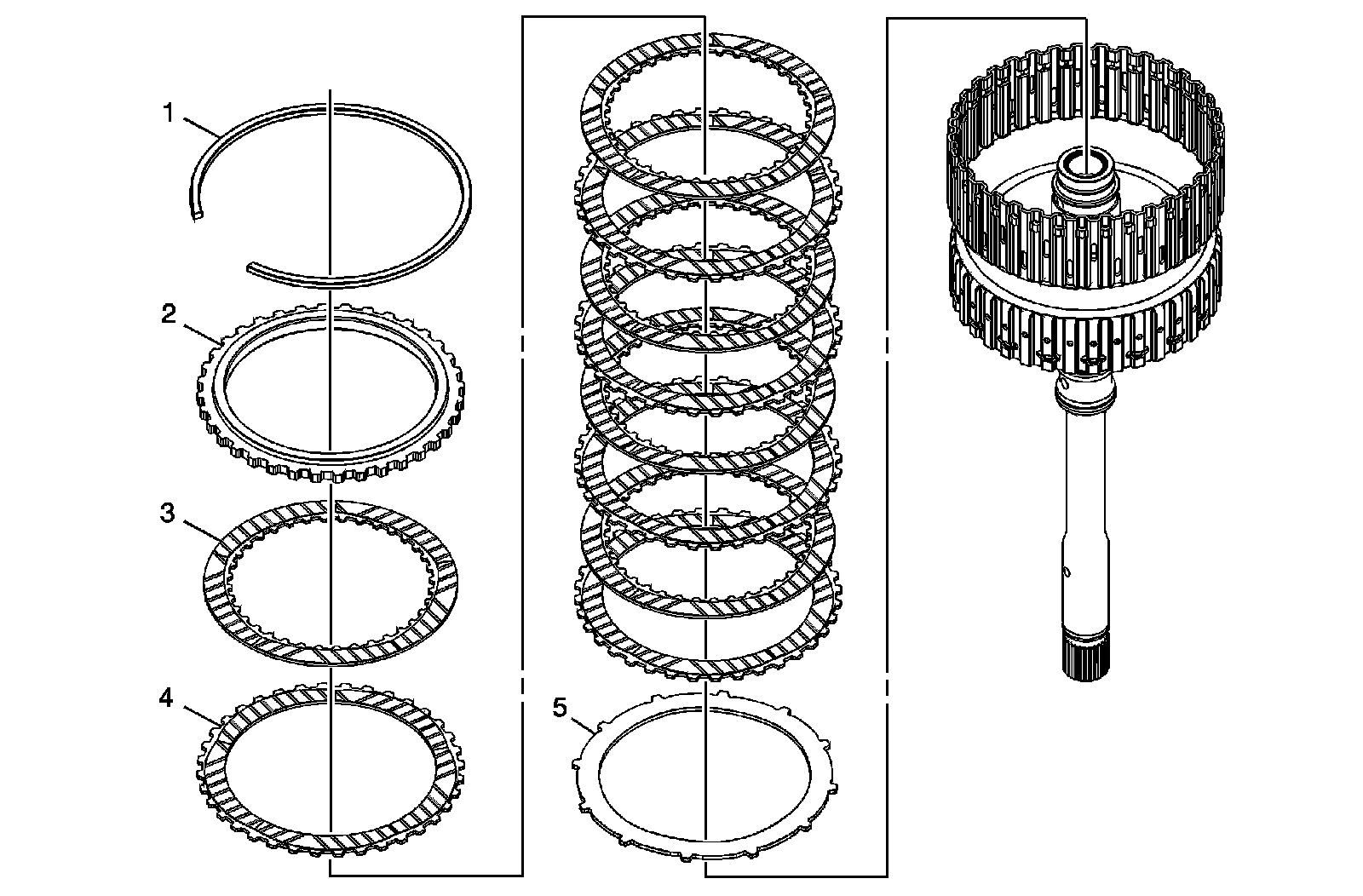

4-5-6 Clutch Plates Removal

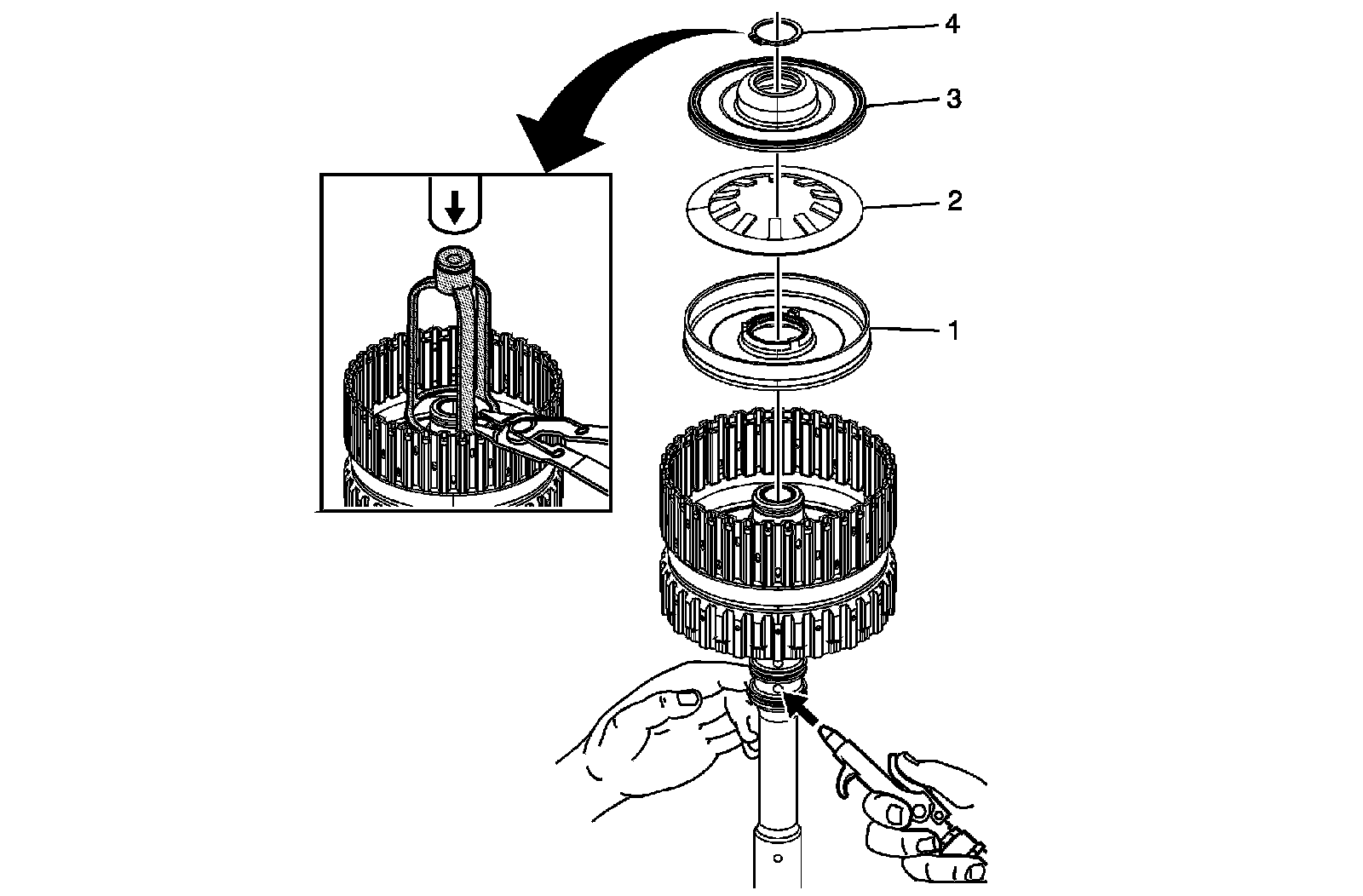

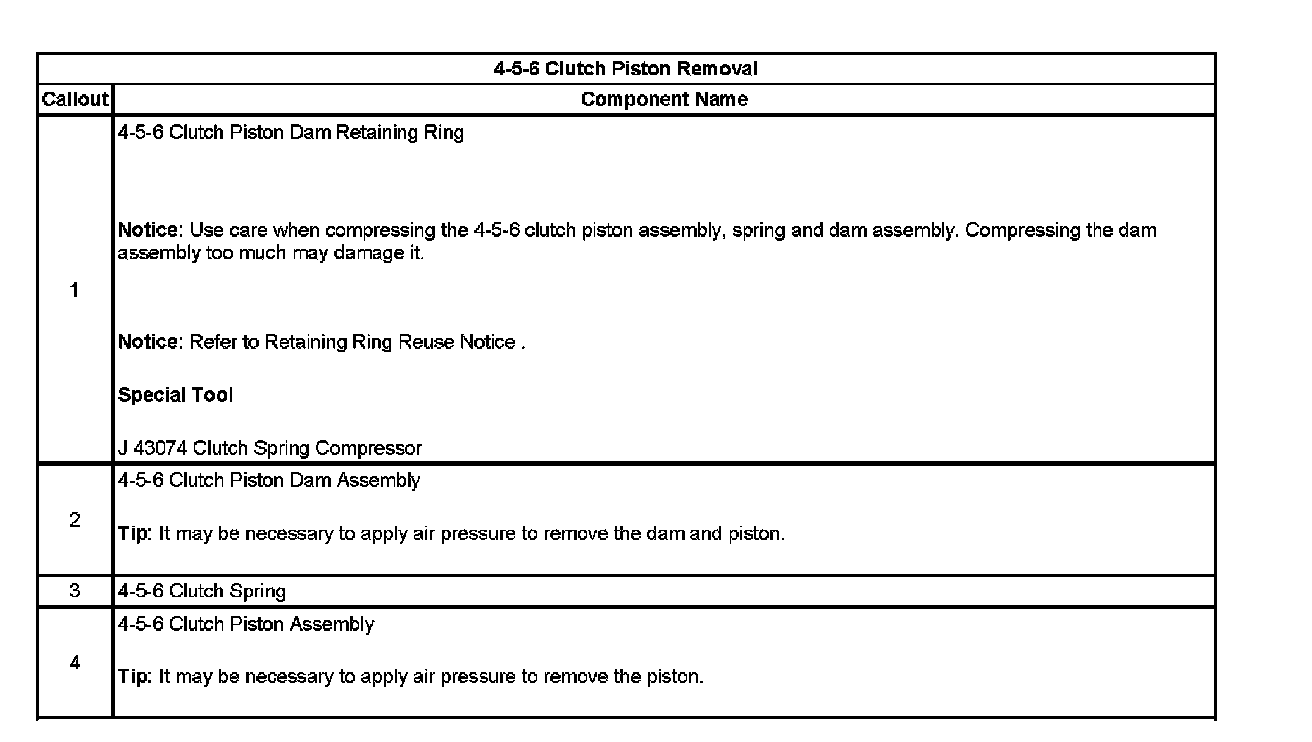

4-5-6 Clutch Piston Removal

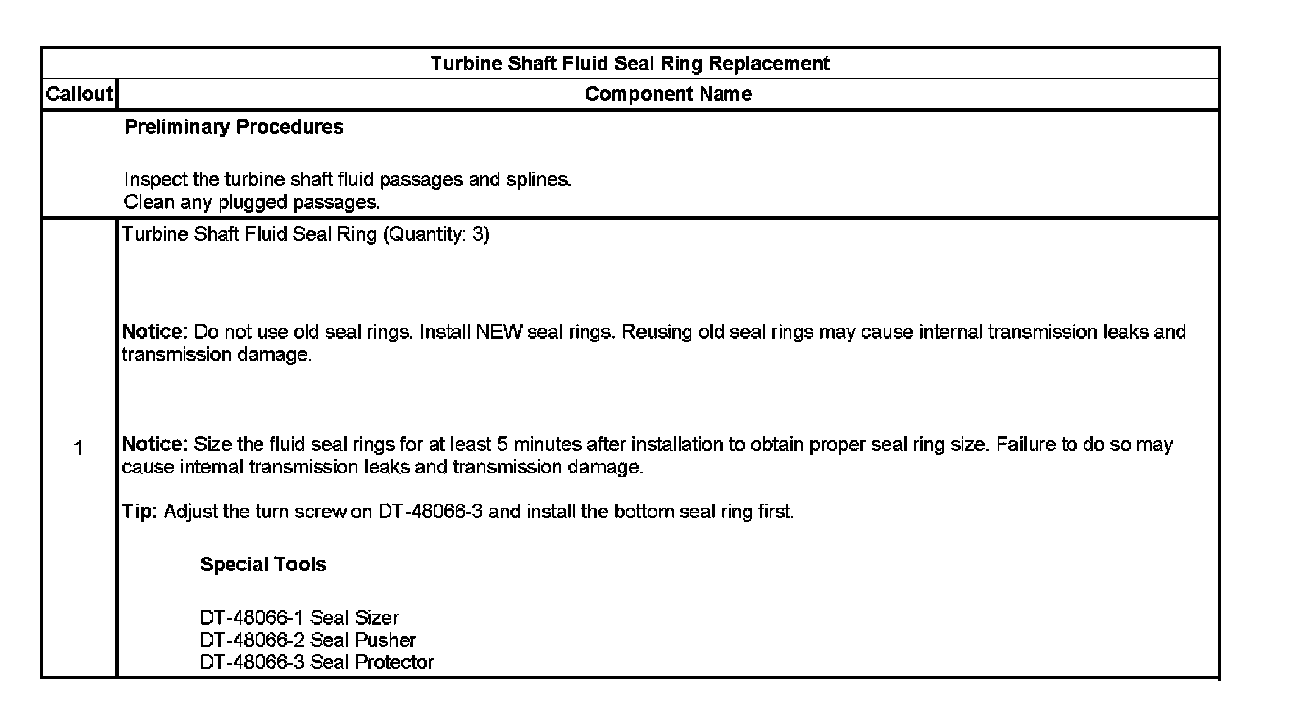

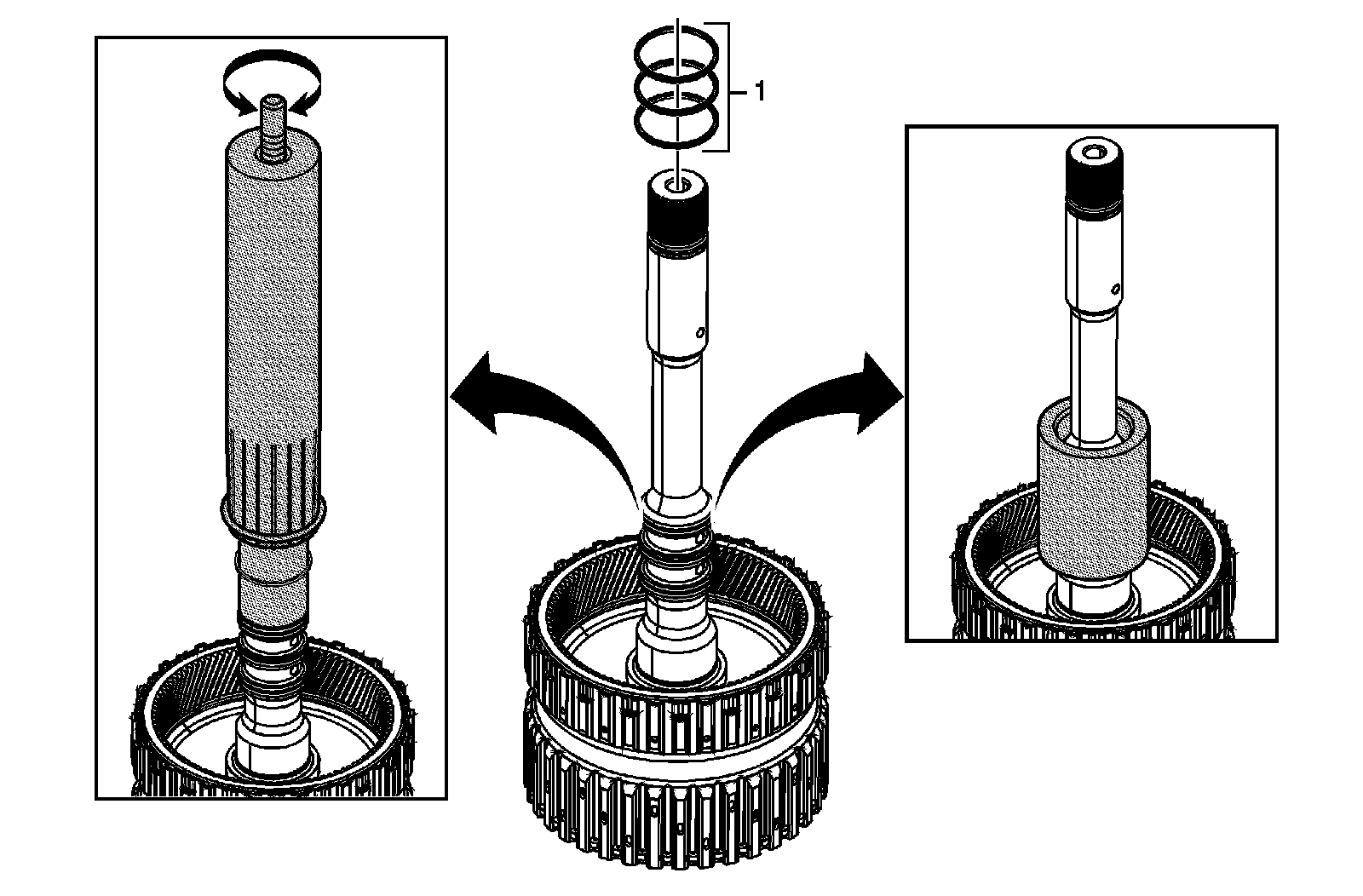

Turbine Shaft Fluid Seal Ring Replacement

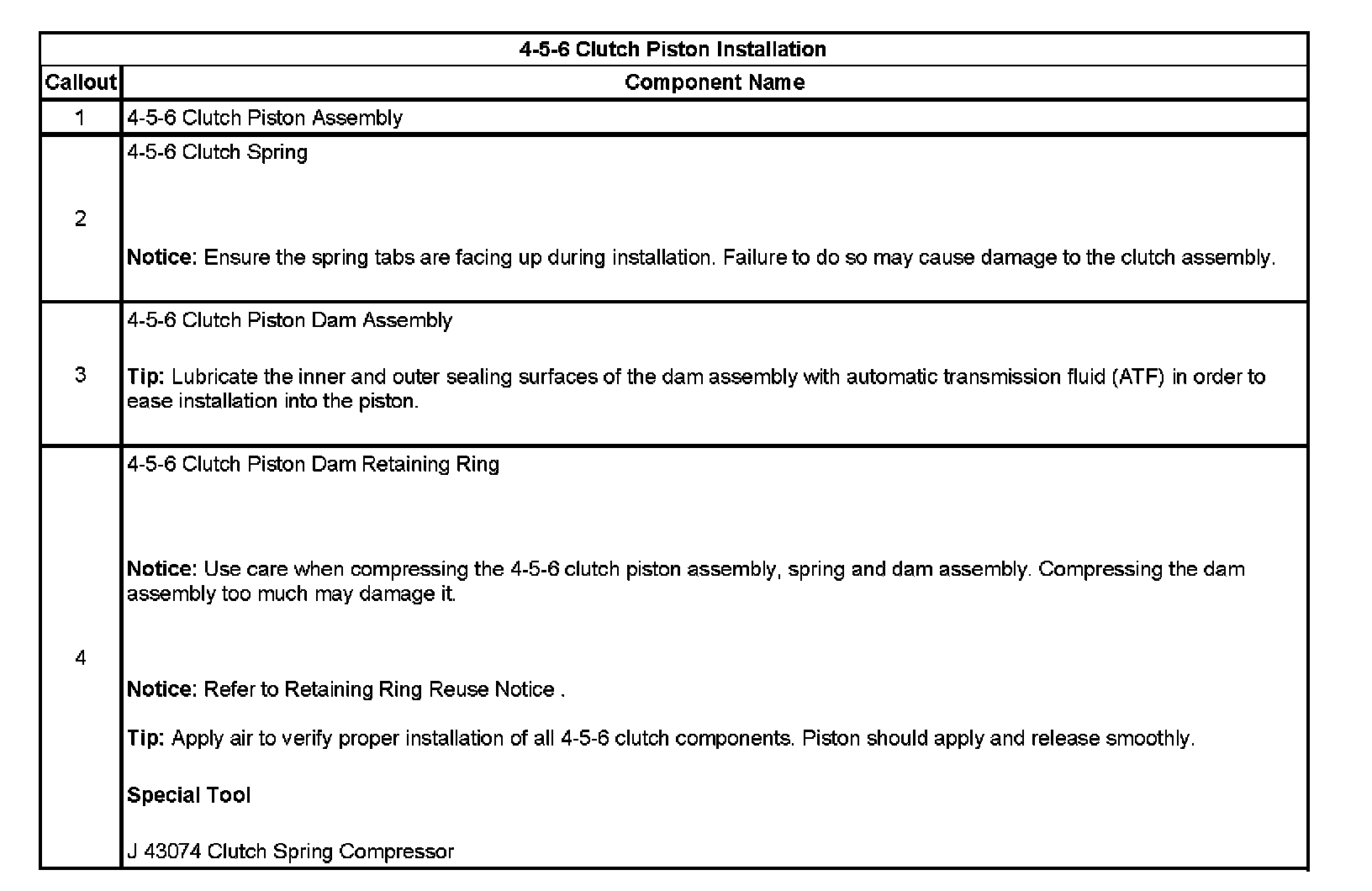

4-5-6 Clutch Piston Installation

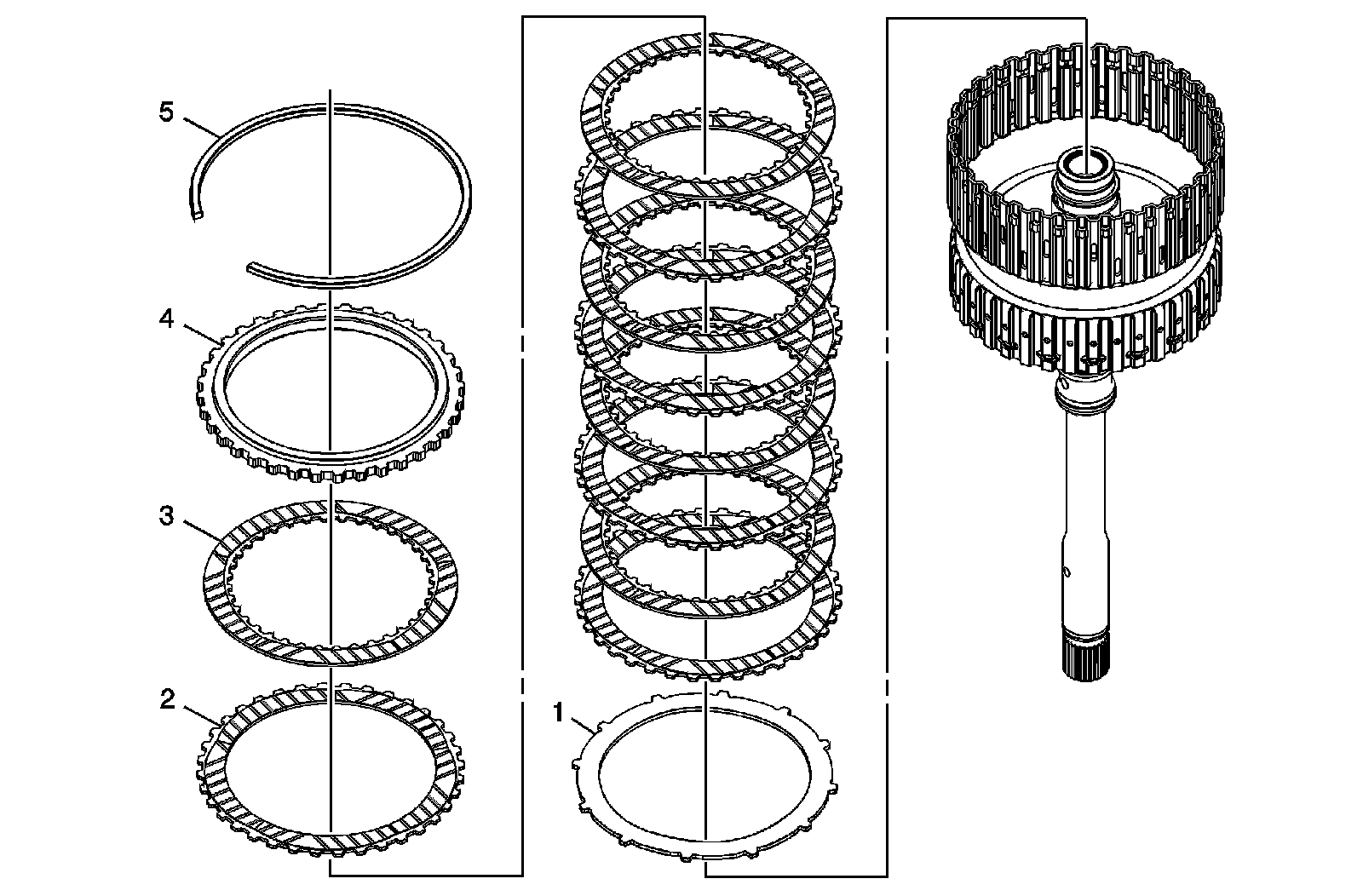

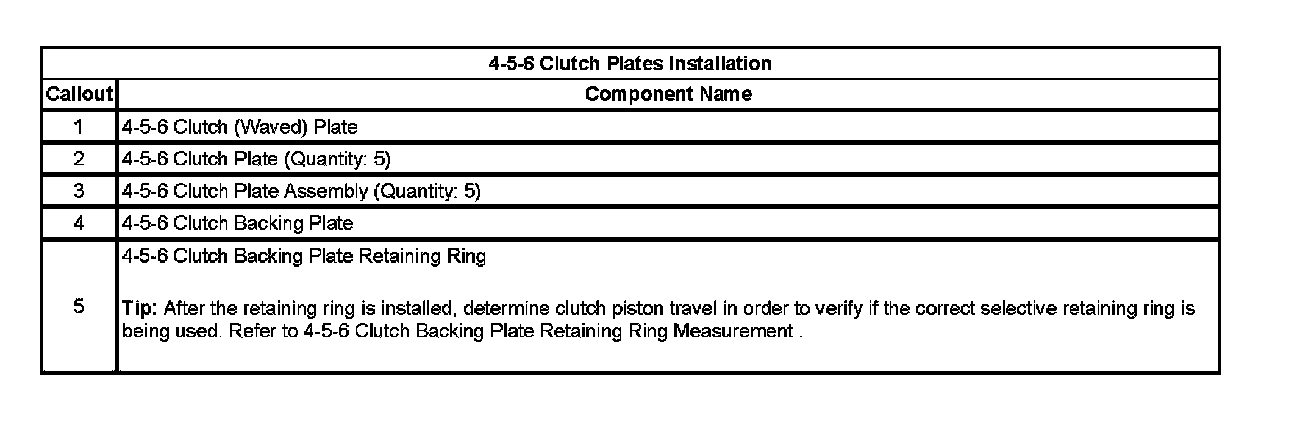

4-5-6 Clutch Plates Installation
