Headlamp Alignment Sensor

Component Connector End Views

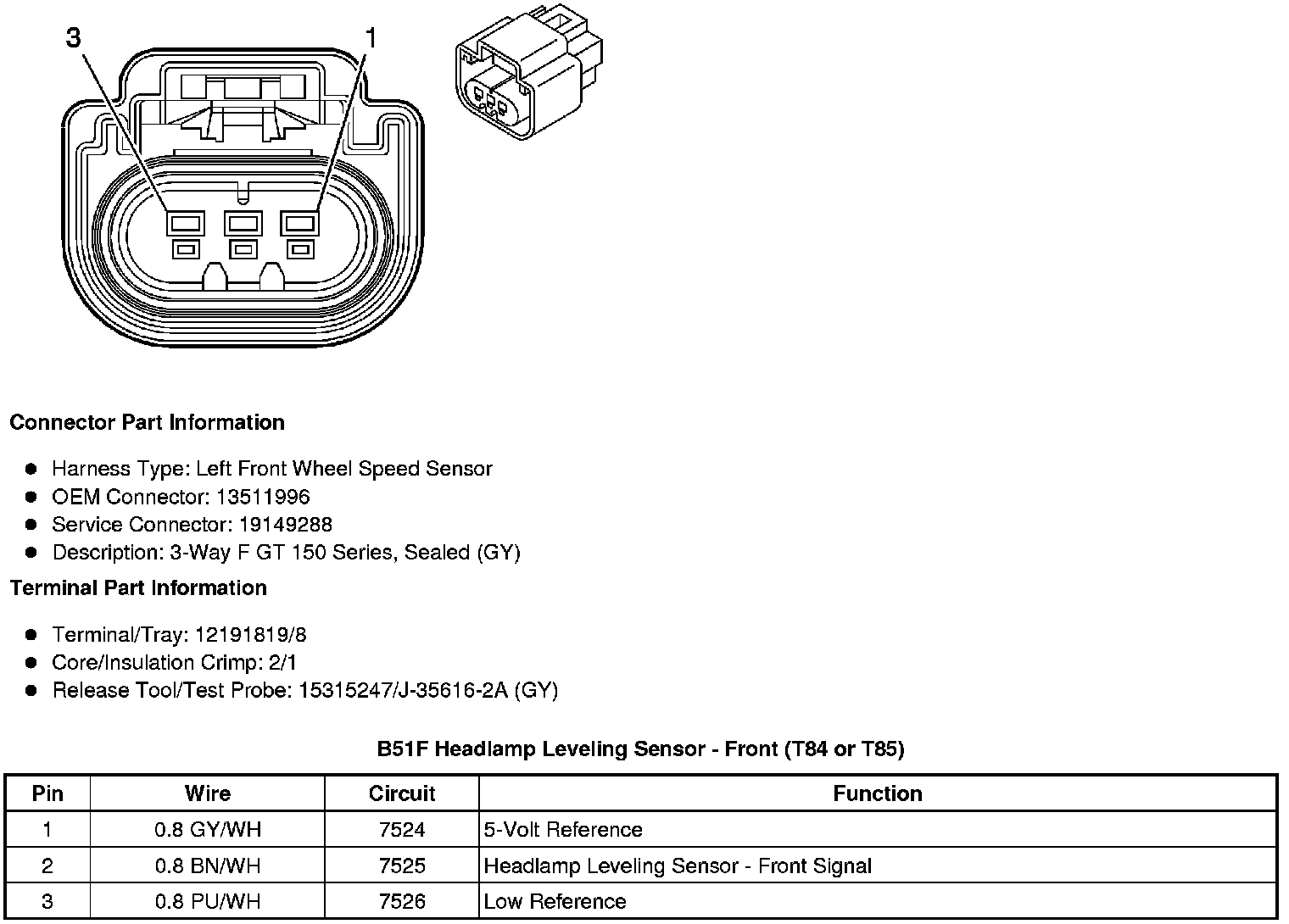

B51F Headlamp Leveling Sensor - Front (T84 or T85)

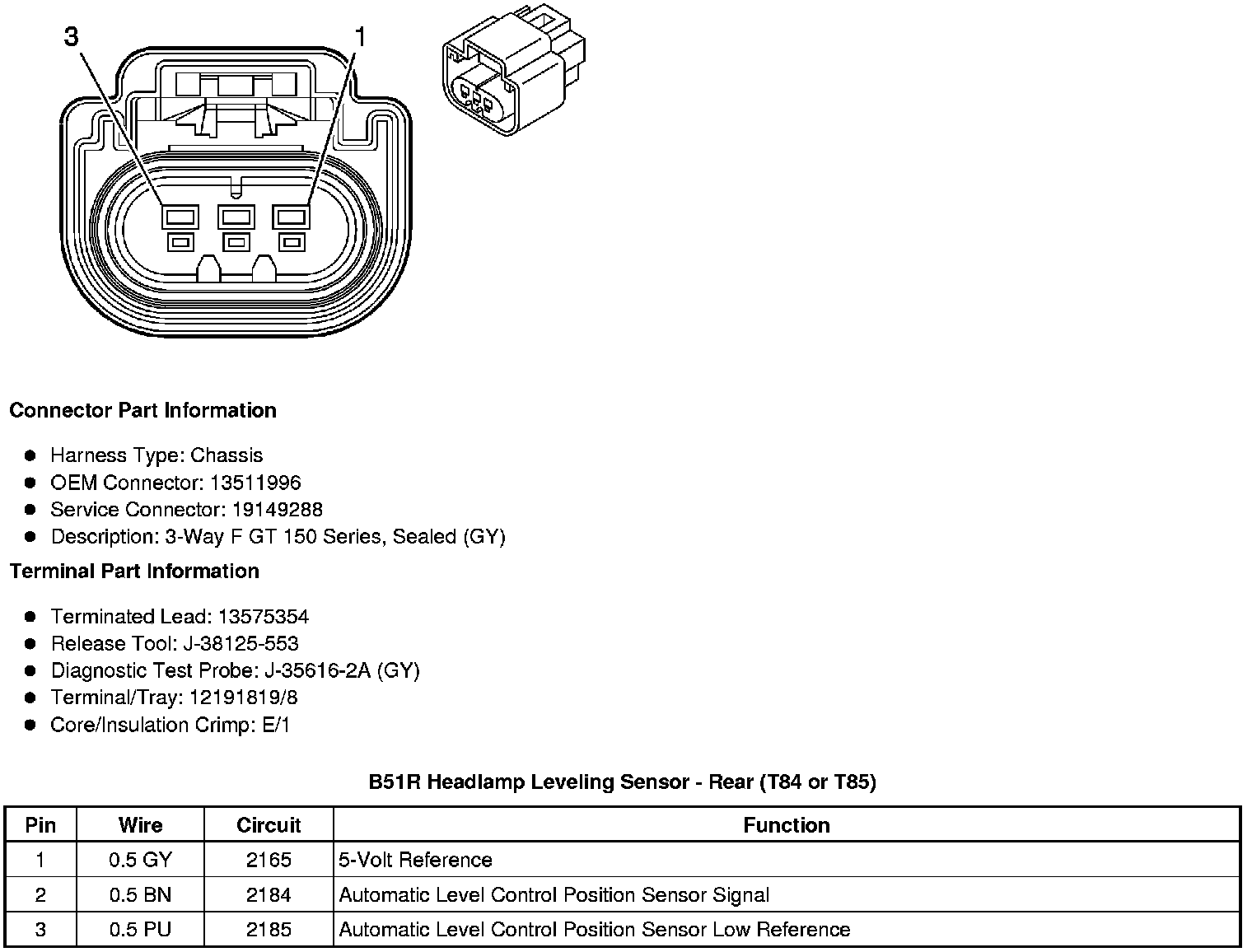

B51R Headlamp Leveling Sensor - Rear (T84 or T85)
