Expansion Block/Orifice Tube: Locations

A/C Compressor Hose Routing (VIN Y):

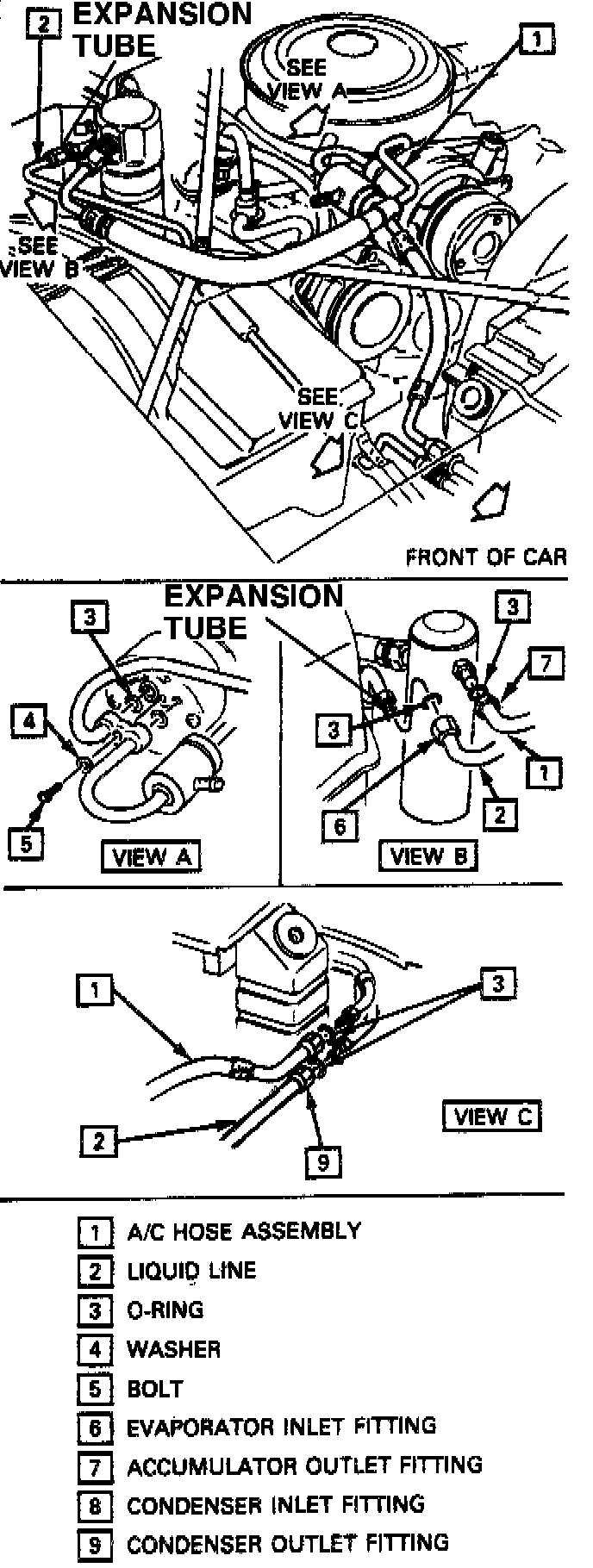

The Expansion Tube is located in the liquid line, at the evaporator inlet fitting.
