Home >> Cadillac >> 1985 >> DeVille V6-260 4.3L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Power Steering Pressure Switch >> Locations

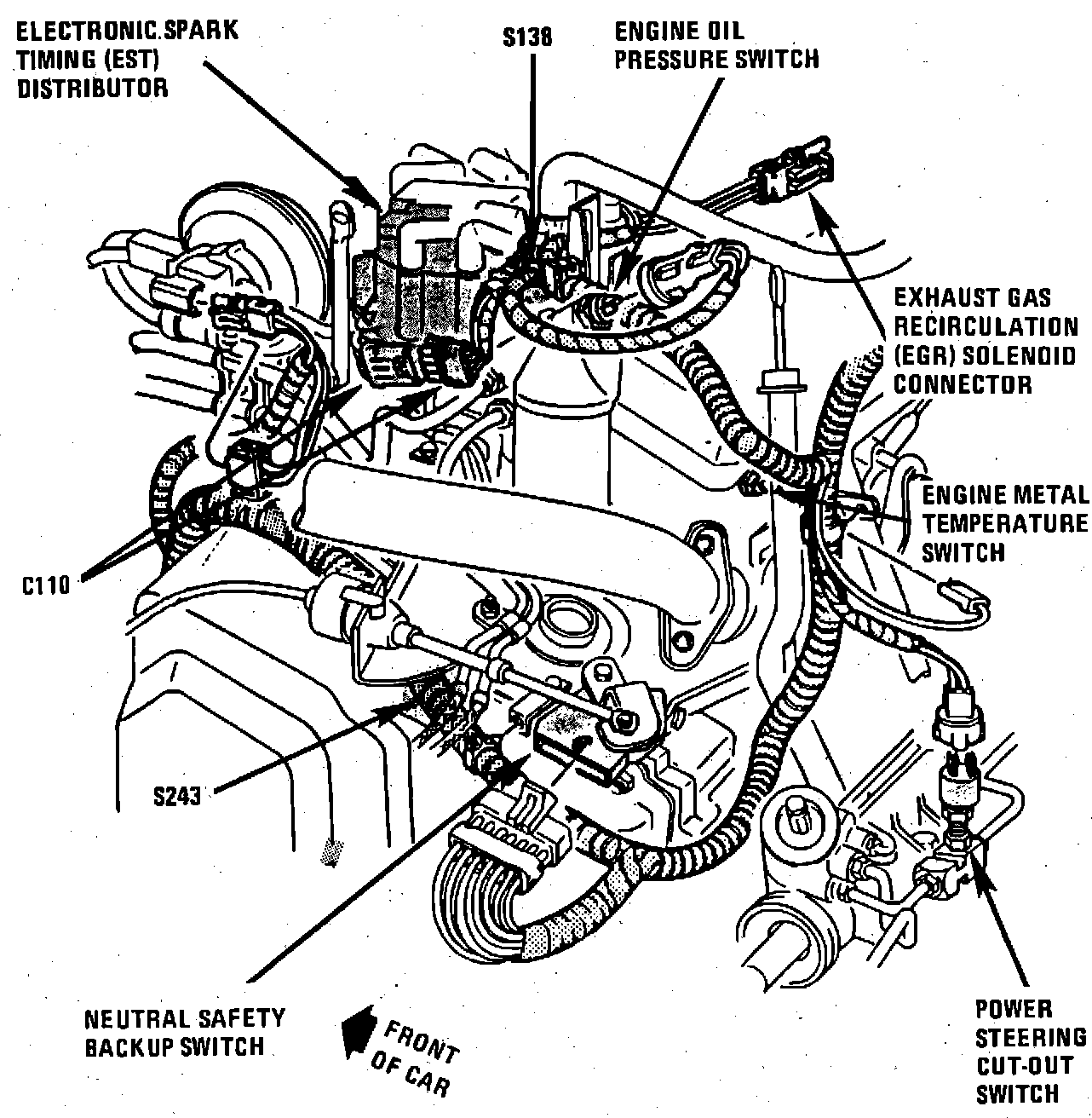

Power Steering Pressure Switch: Locations

LH Side Of V8 Engine.:




LH Rear Of Engine

Applicable to: DeVille & Fleetwood
LH Rear Of Engine
