Port Fuel Injection

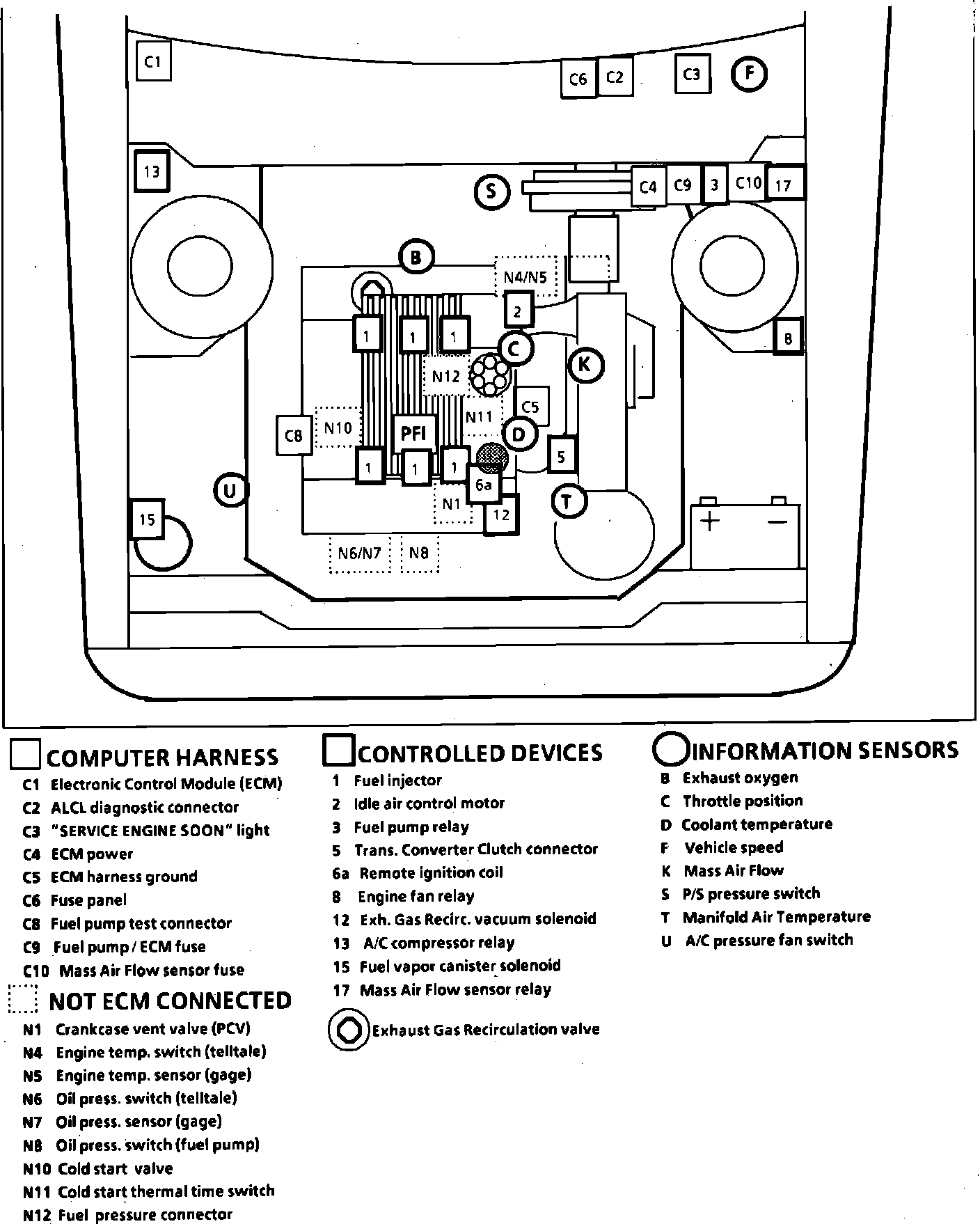

Fig. 20 Emission Component Location. 1985 Firenza & Cavalier W/V6-173/2.8L, PFI:
