Brake Warning Indicator
Brake Warning Indicator

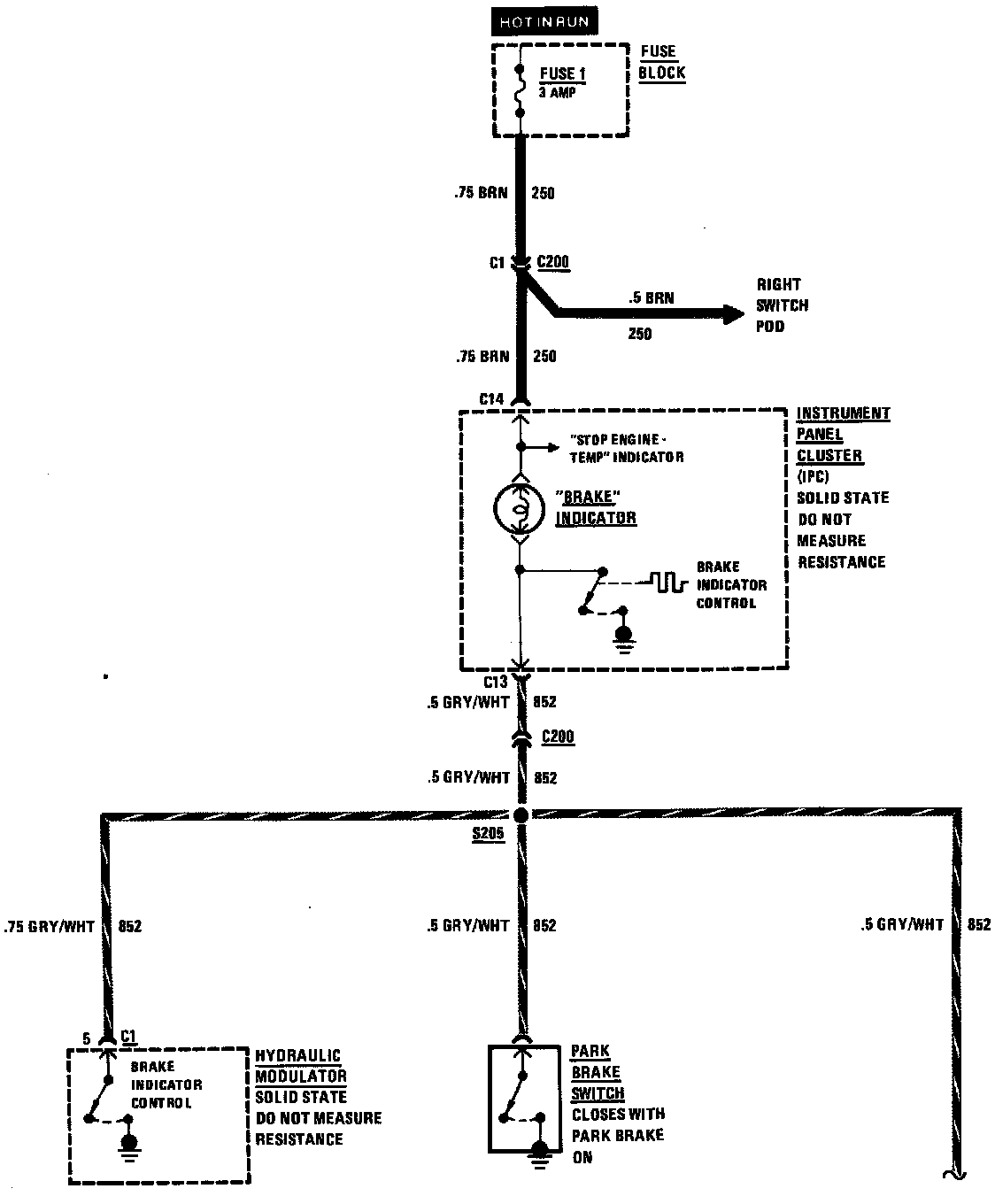

Brake Warning System (Part 2 Of 2):

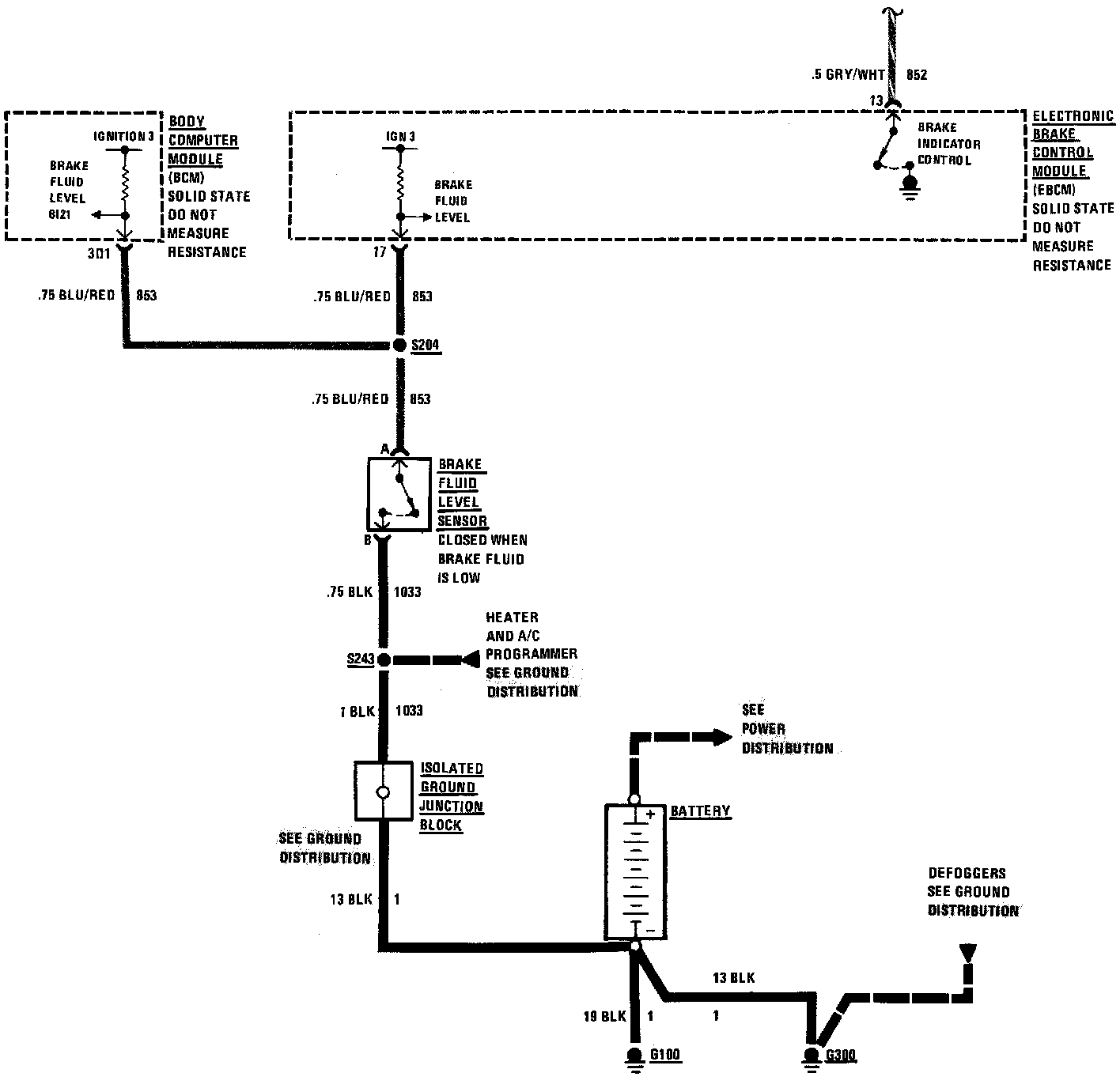

Brake Warning System (Part 1 Of 2):
