Expansion Block/Orifice Tube: Locations


Orifice (Expansion) Tube:

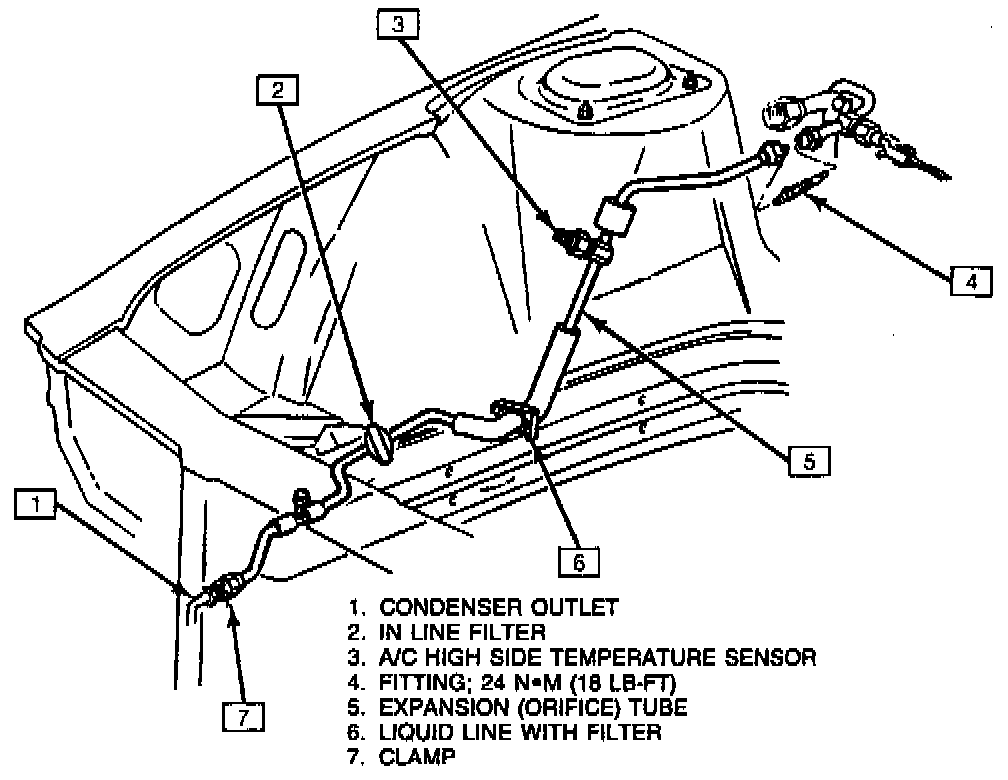

Liquid Line Filter Installed:

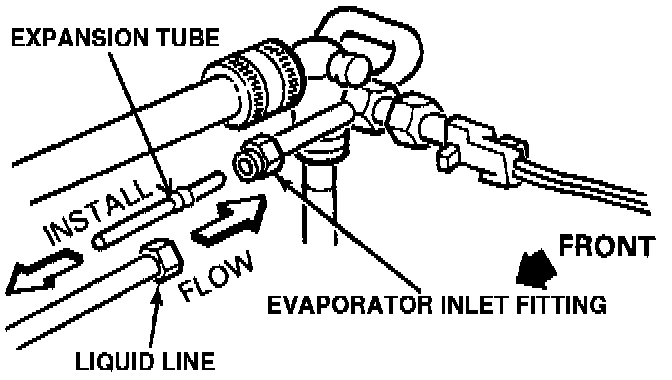

The Expansion tube is located in the liquid line, at the evaporator inlet fitting.
