Fastener Tightening Specifications - Intake Manifold

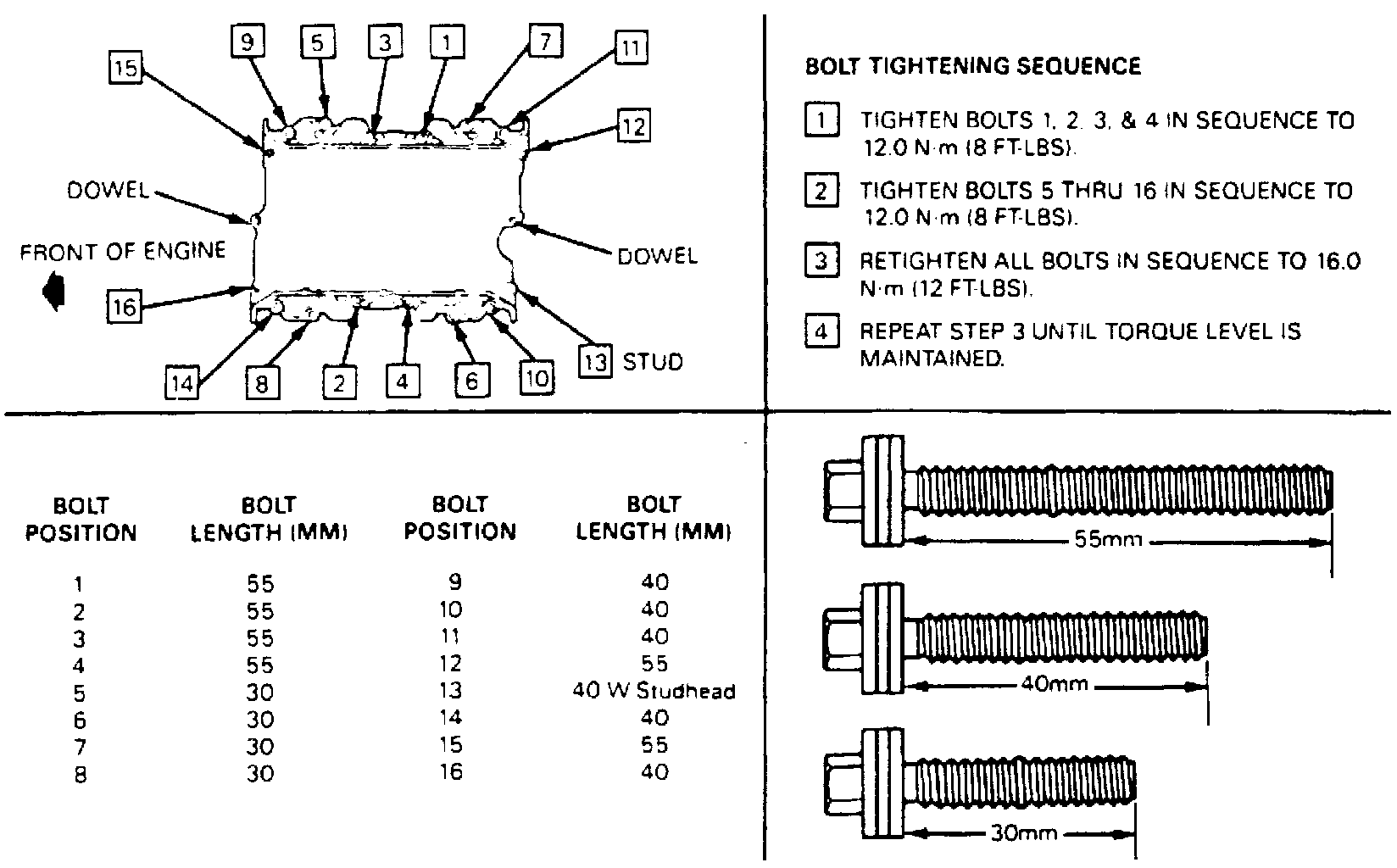

Fig. 2 Intake Manifold Bolt Size & Bolt Torque Sequence:
