Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor/Pump Relay, Suspension Control
Compressor/Pump Relay, Suspension Control

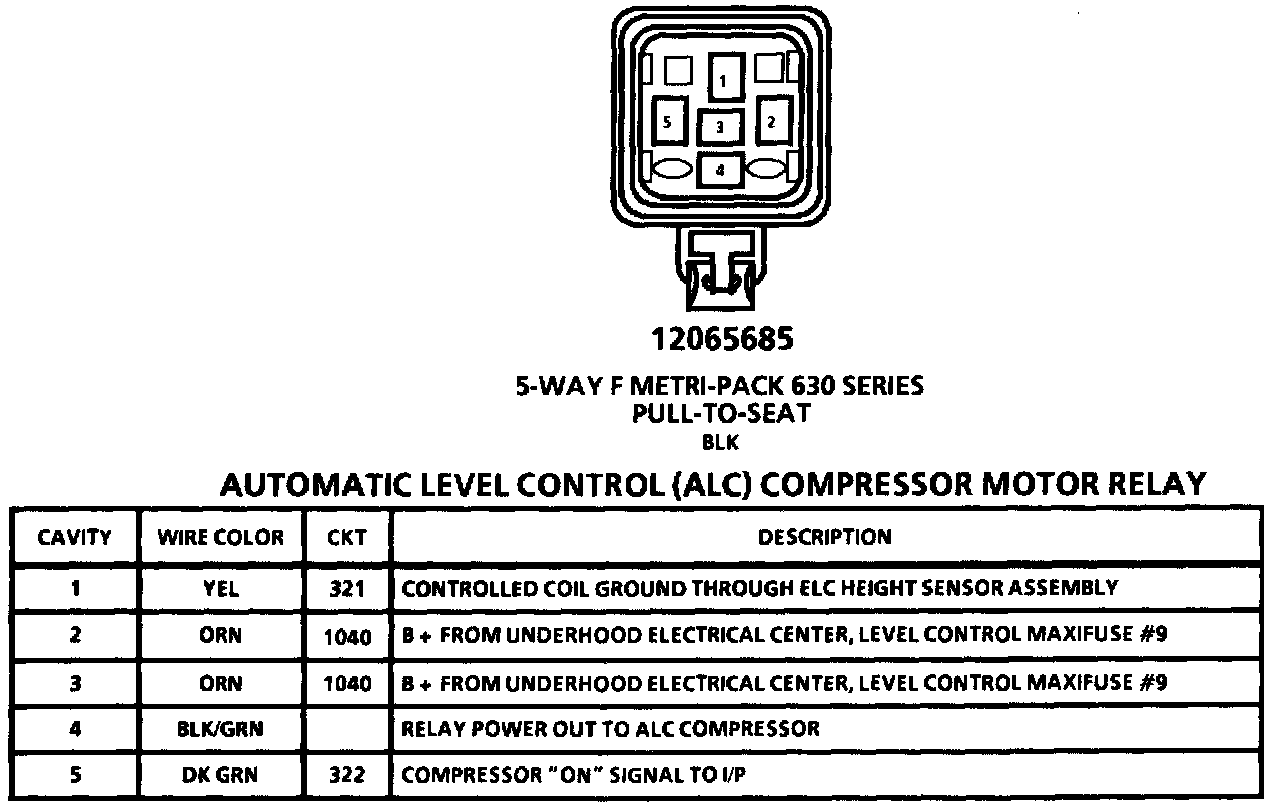

ALC Compressor Motor Relay:
