Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Blue
Blue

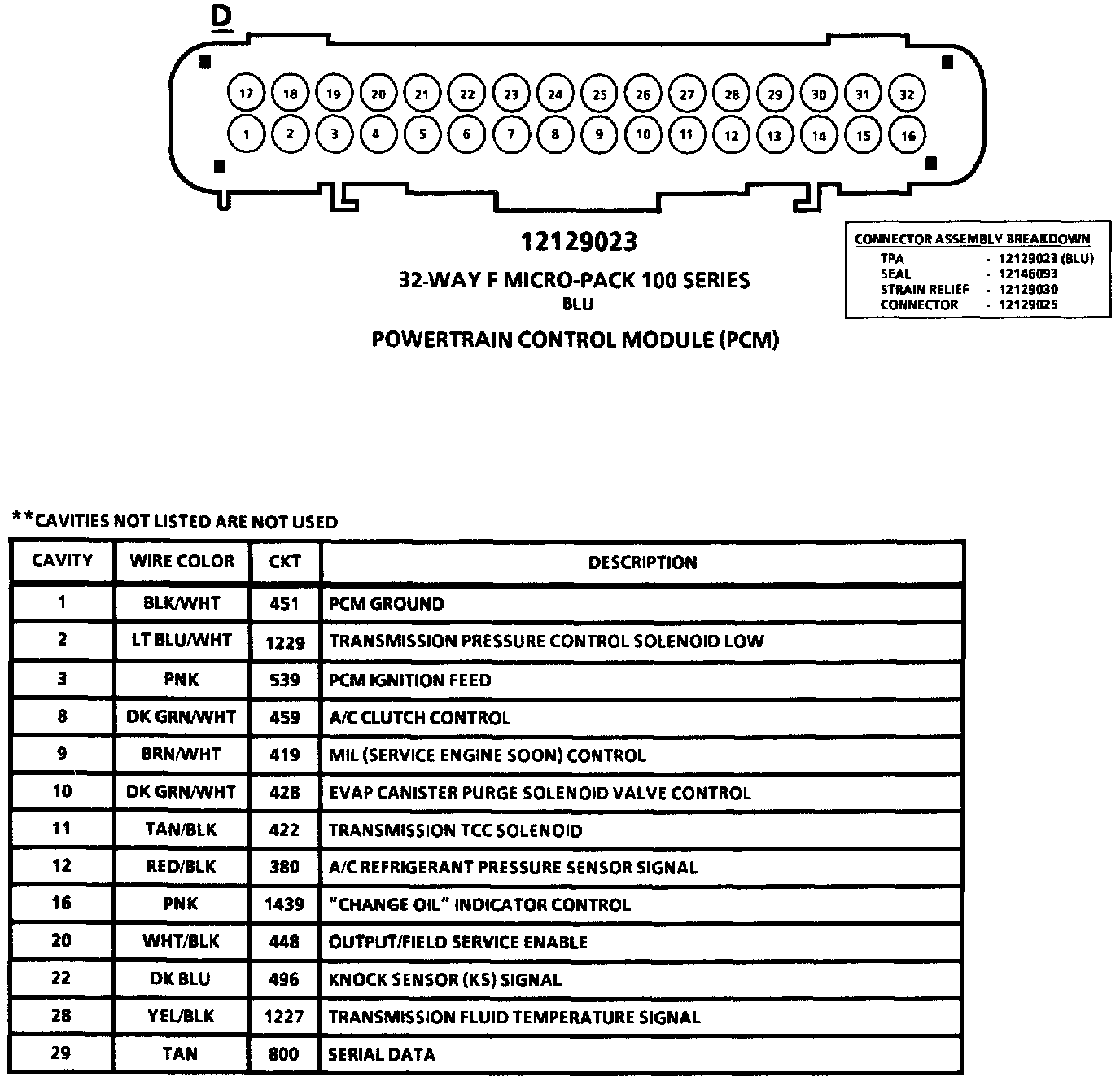

Sequential Multiport Fuel Injection (SMFI): Blu Connector View Details:
