Exhaust Temperature Sensor: Locations

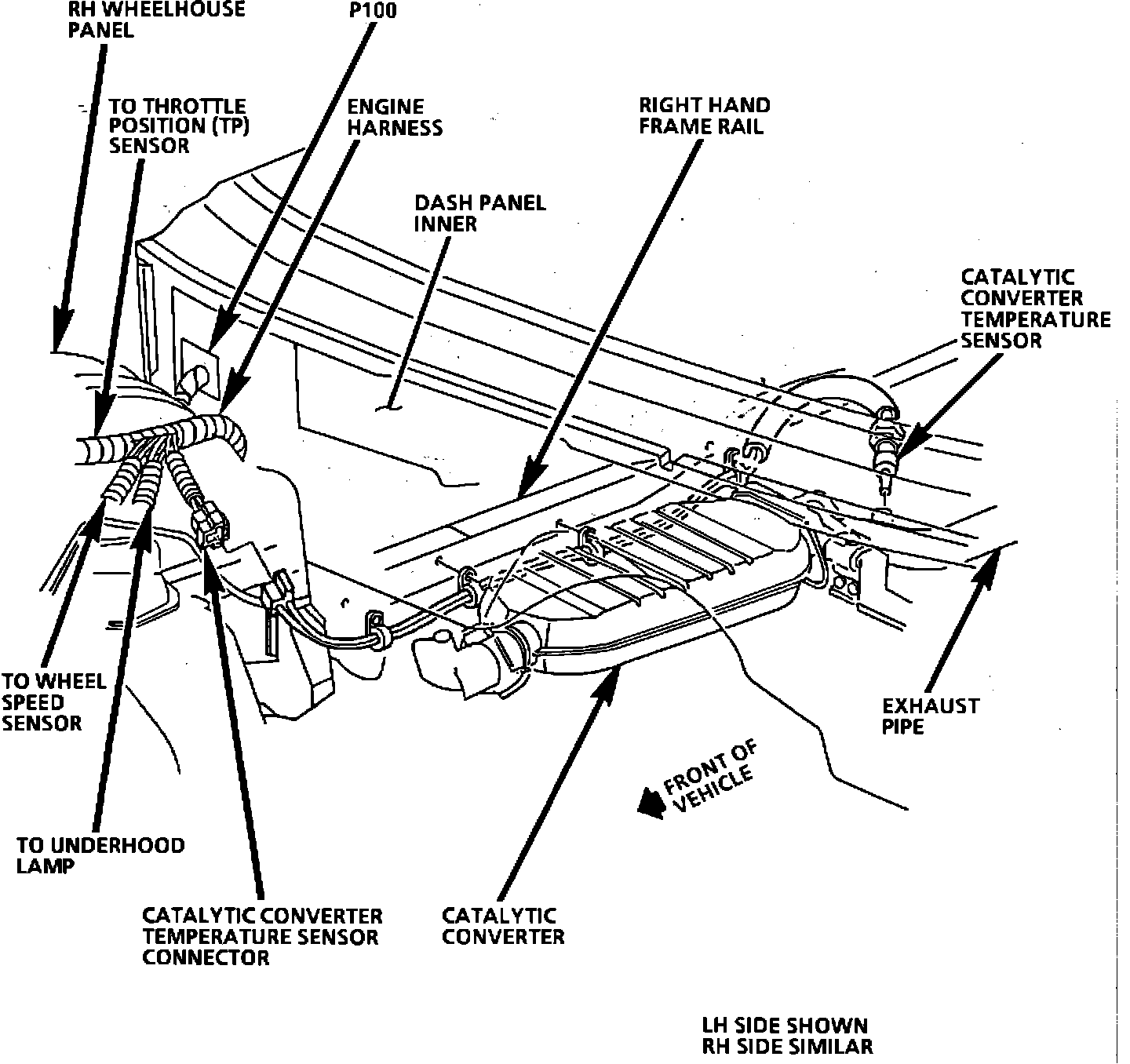

Component Location - Pictorial View.:






Located in exhaust pipe, behind catalytic converter.
