Ignition Cable: Locations

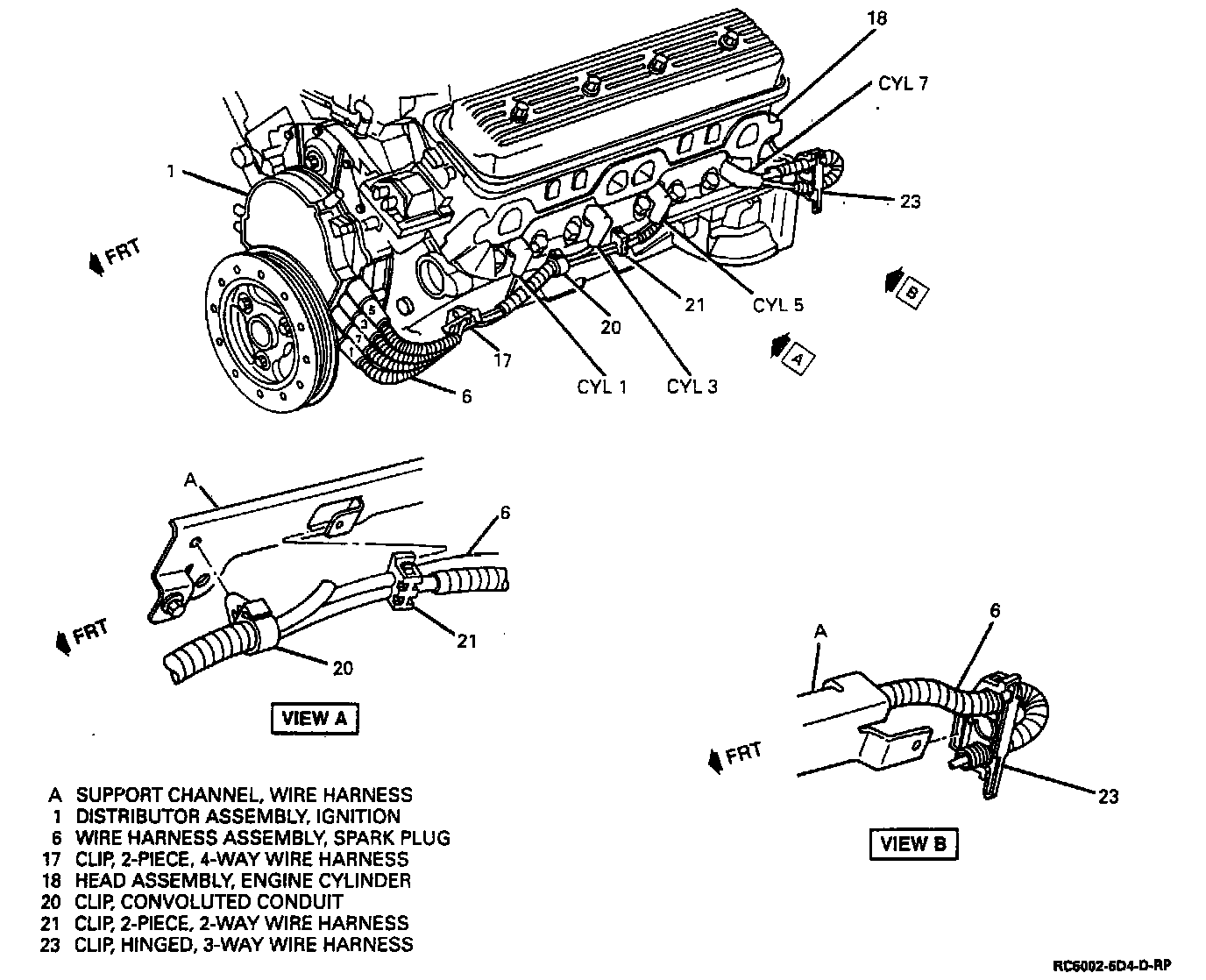

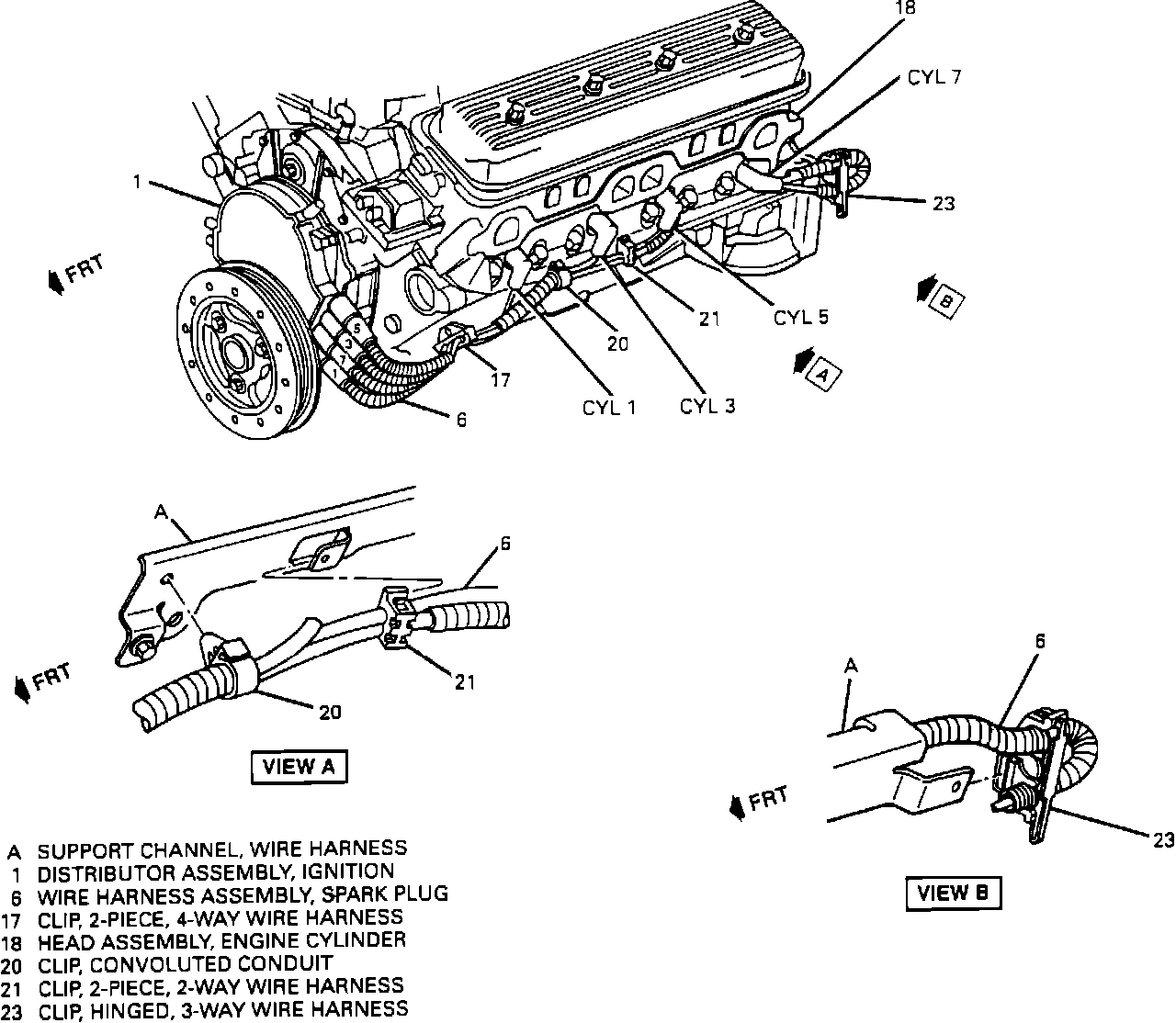

Spark Plug Wire Routing (right):

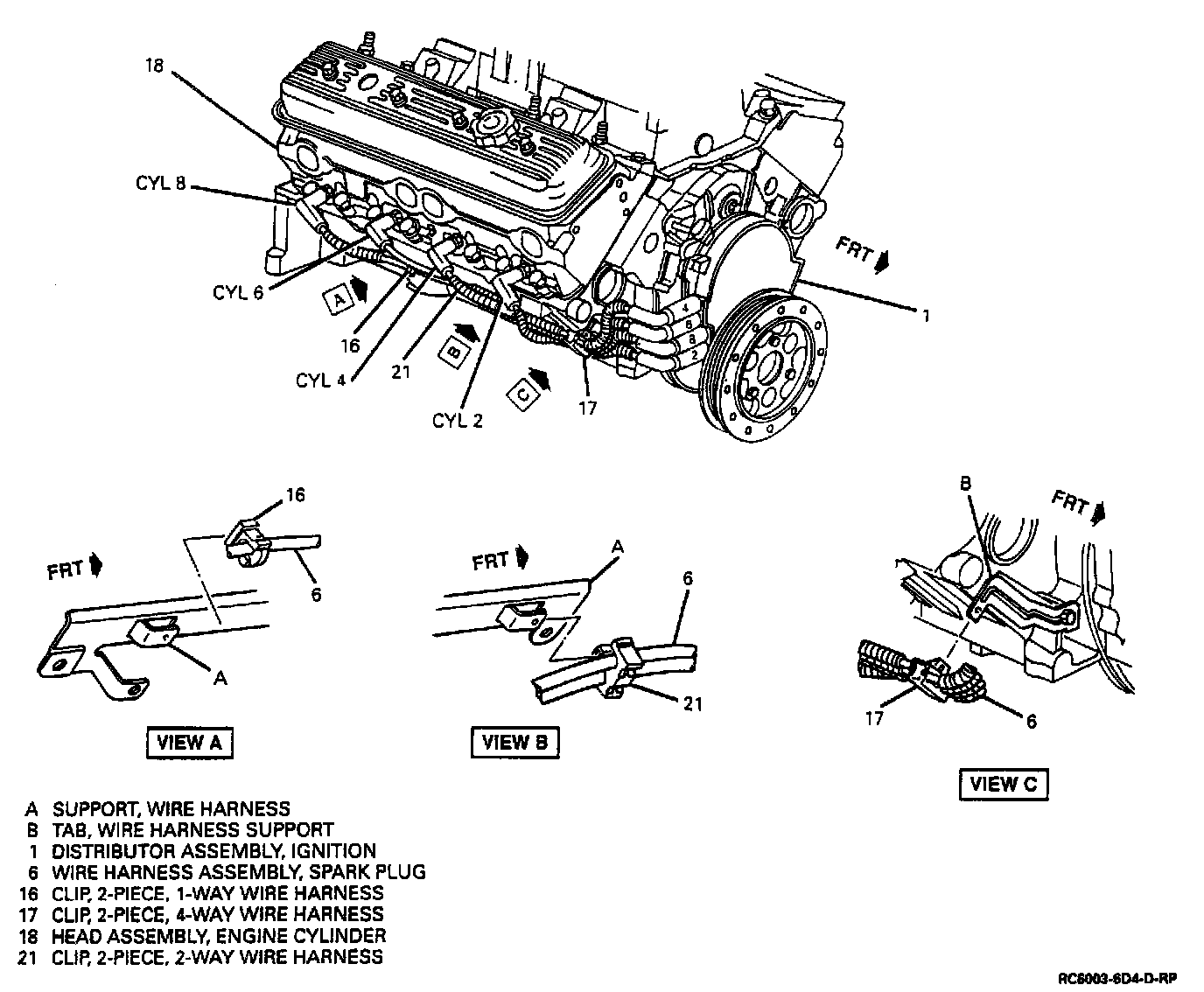

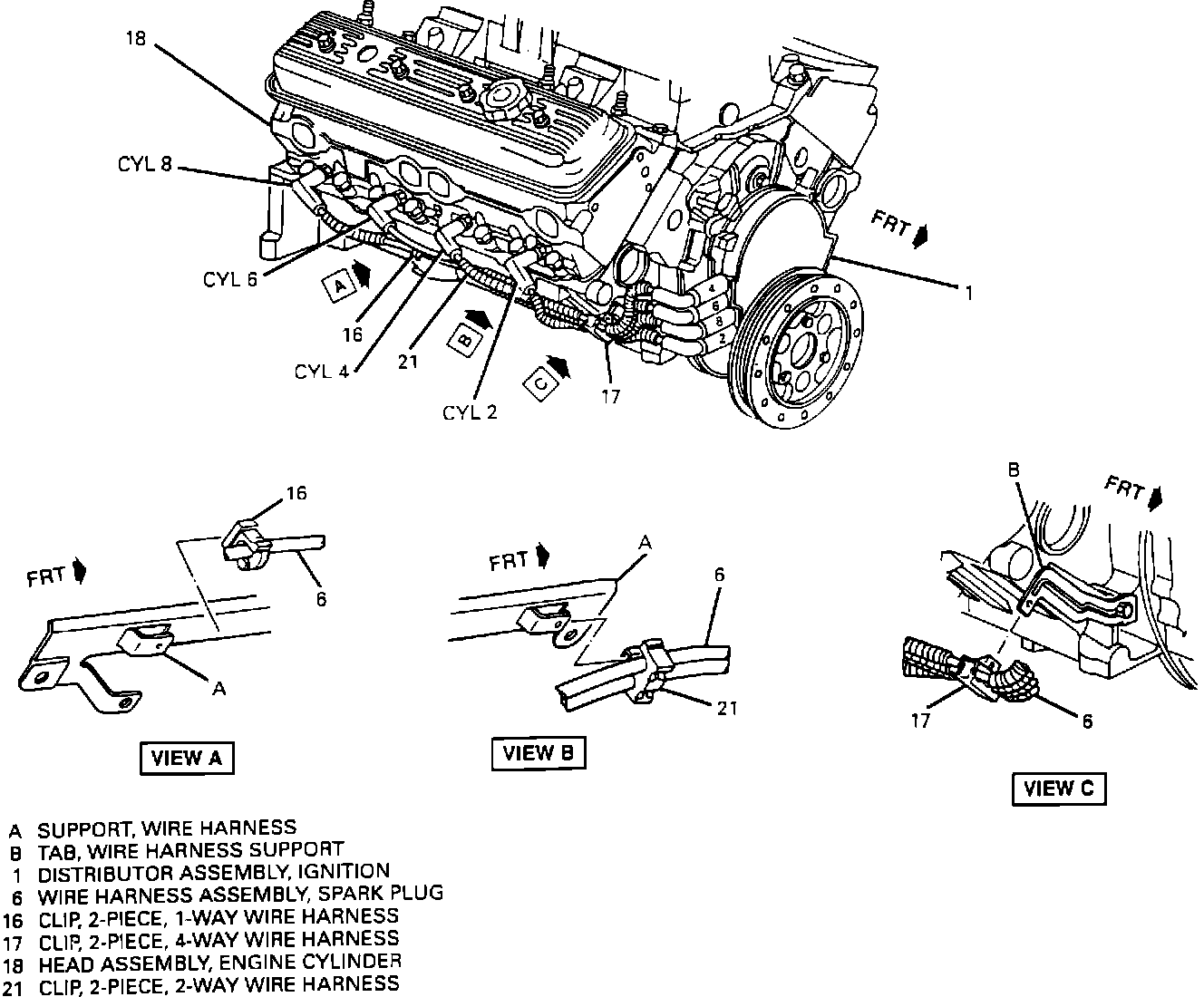

Spark Plug Wire Routing (left):

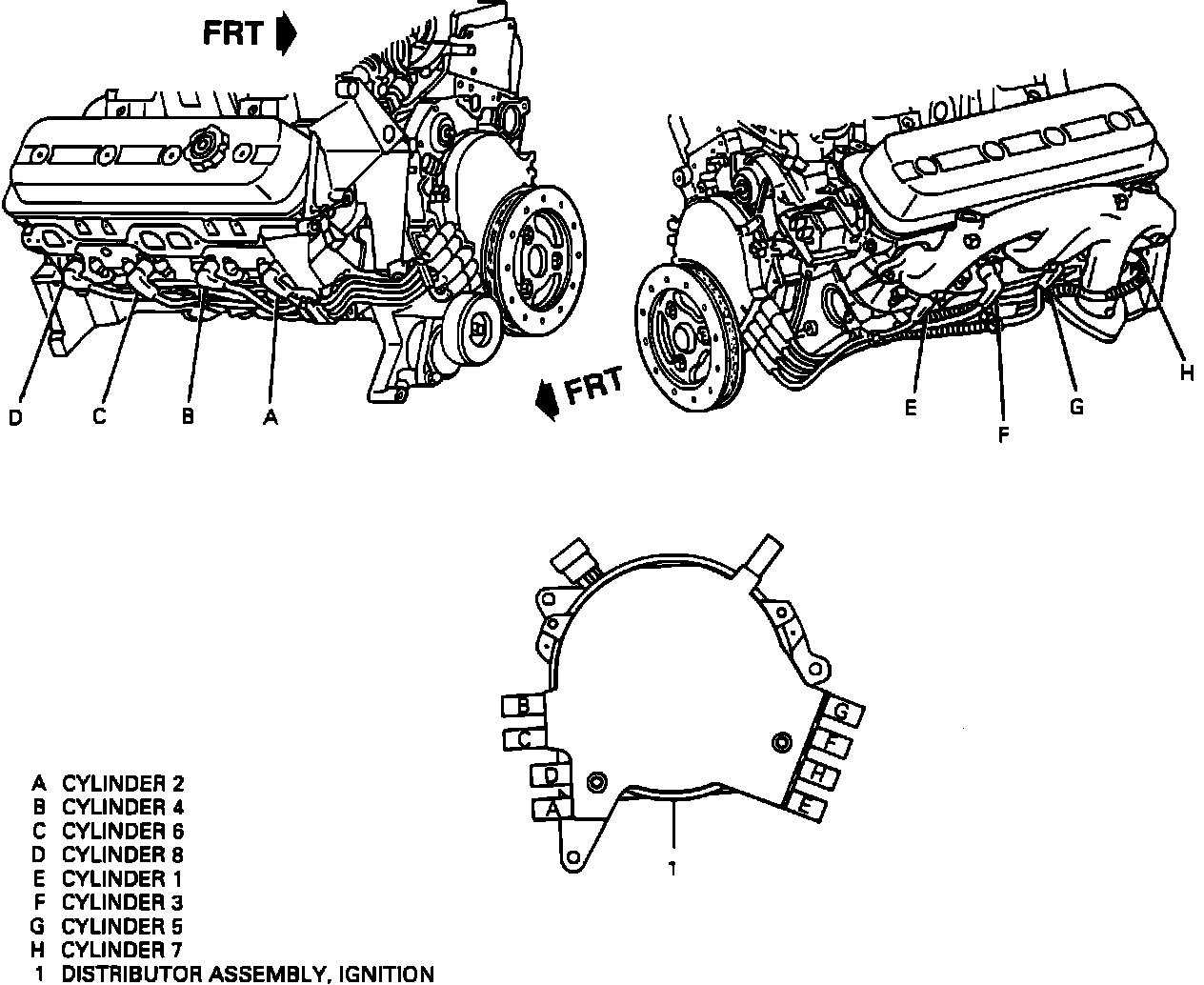

Ignition Wire Routing:
