Export Only

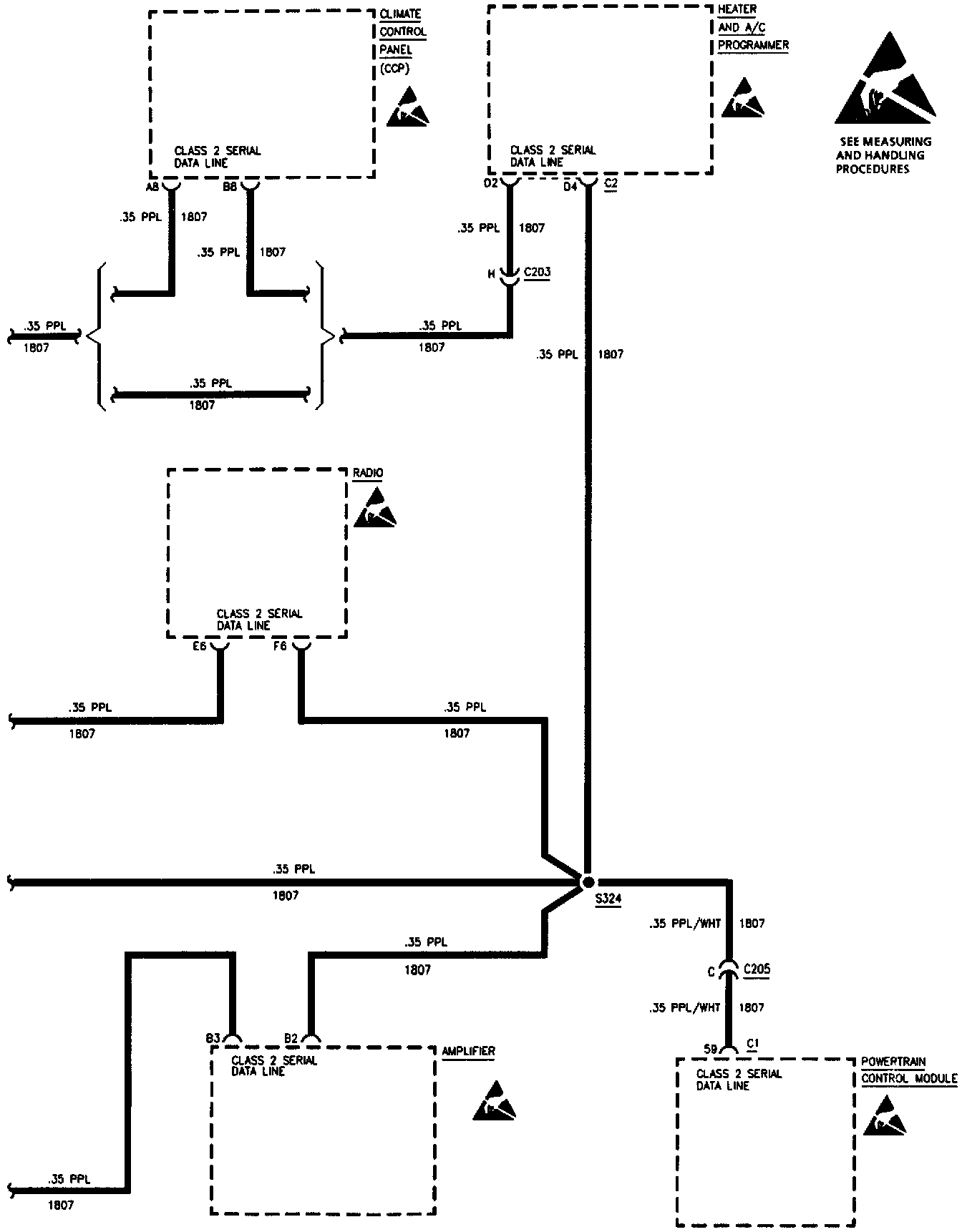

Data Link Connector (DLC): Class 2 Data Line (Export):

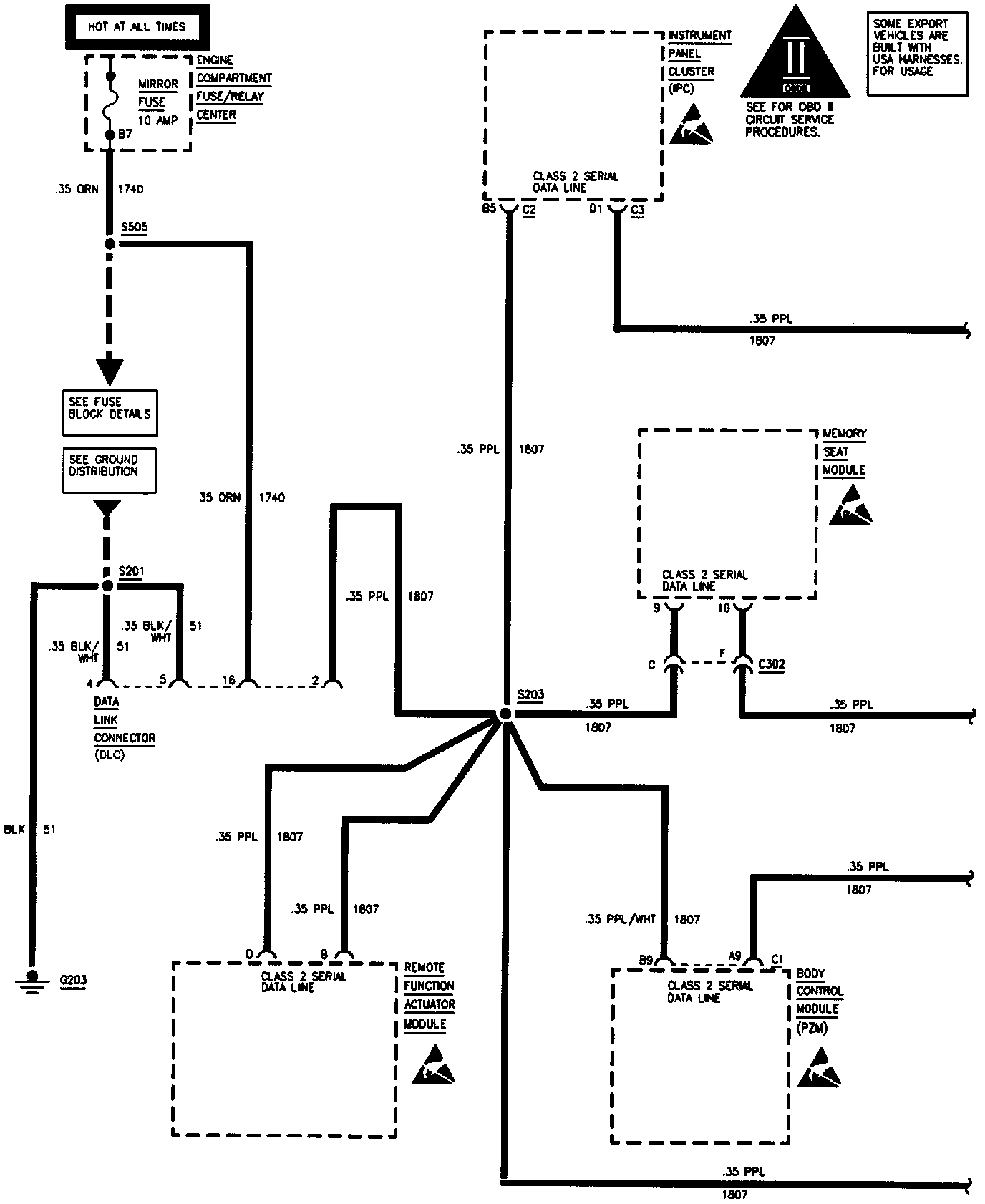

Data Link Connector (DLC): Class 2 Data Line (Export):
