Home >> Cadillac >> 1996 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Trunk Compartment 3 Micro Relay Center

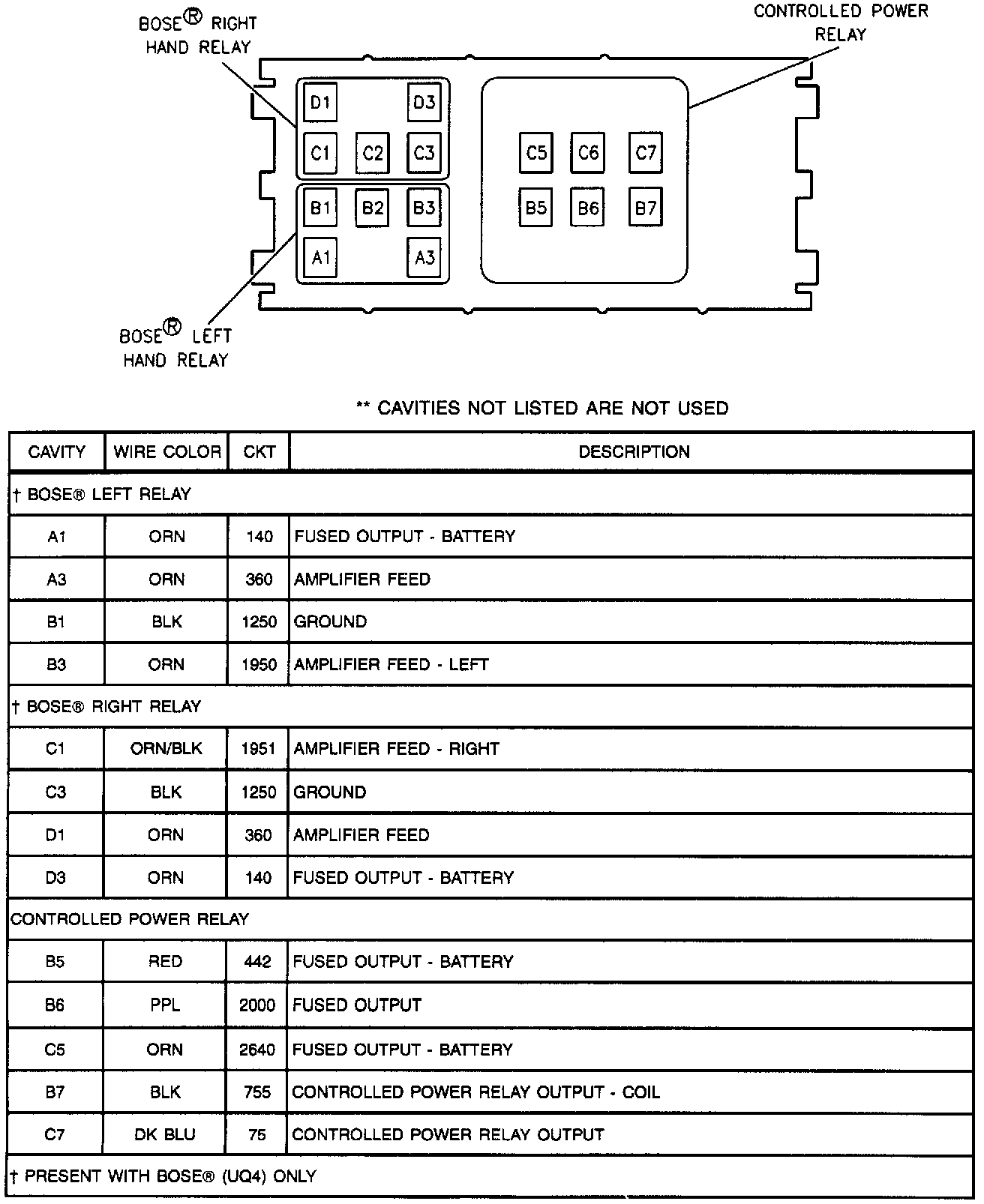

Trunk Compartment 3 Micro Relay Center

Trunk Compartment 3 Micro Relay Center:
